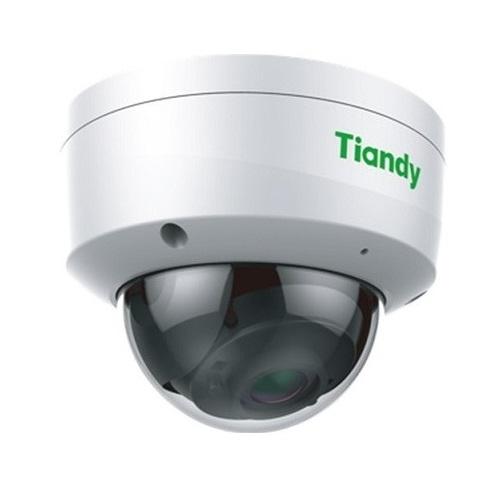

Camera IP Dome hồng ngoại Wifi 2.0 Megapixel TIANDY TC-C32KN (I3/Y/WIFI/2.8mm/V4.0)
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: S+265/H.265/H.264.
- Ống kính cố định: f2.8mm/F2.0, Fixed.
- Độ nhạy sáng: Color: 0.02Lux@ (F2.0, AGC ON), B/W: 0Lux with IR.
- Tầm quan sát hồng ngoại: 30m.
- Tích hợp micro trên camera.
- Hỗ trợ Micro SD card slot, up to 512GB.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC.
- Chức năng chống ngược sáng thực Digital WDR.
- Chuẩn ONVIF quốc tế, hỗ trợ tên miền miễn phí.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: DC 12V.
- Vỏ kim loại + nhựa.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.02Lux@ (F2.0, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | Digital WDR |
| Angle Adjustment | pan 0~330°, tilt 0~75°, roate 0~350° |
| Lens | |
| Lens Type | Fixed |
| Focus | 2.8mm |
| Lens Mount | M12 |
| Aperture | F2.0, Fixed |
| FOV | Horizontal field of view: 98.5° |
| Vertical field of view: 55.7° | |
| Illuminator | |
| IR LEDs | 8 |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711/G.711U/ADPCM |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 1920x1080 |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) |
| NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| OSD | 16×16, 32×32, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict, Tripwire, Perimeter |
| Network | |
| Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web5 |
| Wi-Fi | |
| Wireless Standards | IEEE802.11b/g/n |
| Frequency Range | 2.4GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Protocols | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM/HT | |
| Security | WPA-PSK/WPA2-PSK |
| Transfer Rates | 802.11b: 11Mbps |
| 802.11g: 54Mbps | |
| 802.11n: up to 150Mbps | |
| Wireless Range | Up to 50 m (The performance varies based on actual environment) |
| Power Consumption | 802.11b: 17±1.5dBm@11Mbps |
| 802.11g: 14±1.5dBm@54Mbps | |
| 802.11n: 12.5±1.5dBm@150Mbps | |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | Mic in |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 512 GB |
| General | |
| Web Client Language | 15 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±25% |
| Power Consumption | MAX: 3.8W (12V) |
| Protection | IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Dimensions | Φ120 × 90 mm |
| Weight | 0.39kg |
- Bảo hành: 24 tháng.
