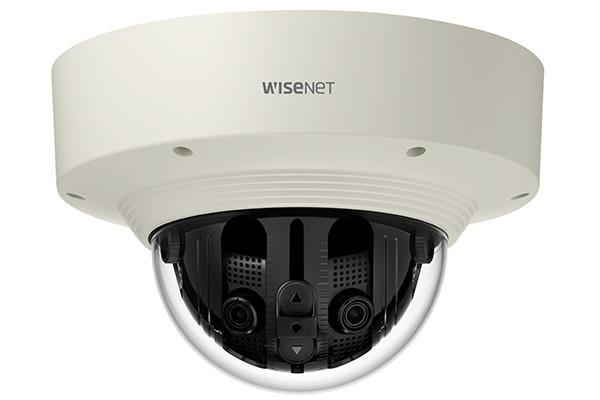

Camera IP Dome Panoramic 180˚ 20 Megapixel Hanwha Techwin WISENET PNM-9030V

Camera IP Dome Panoramic 180˚ 20 Megapixel Hanwha Techwin WISENET PNM-9030V

  • MS 000010084
  • WISENET
Giá : Liên hệ

Camera IP Dome Panoramic 180˚ 20 Megapixel Hanwha Techwin WISENET PNM-9030V

Camera IP Dome Panoramic 180˚ 20 Megapixel Hanwha Techwin WISENET PNM-9030V

- Cảm biến hình ảnh: 1/2.8 inch 5MP CMOSx4.

- Độ phân giải: 20 Megapixel.

- Ống kính: 4mm (Fixed).

- Chức năng camera quan sát Ngày và Đêm (ICR).

- Chức năng chống ngược sáng WDR.

- Chức năng giảm nhiễu số SSNRV.

- Chức năng phát hiện chuyển động Motion Detection.

- Chức năng chống sương mù Defog.

- Chức năng cân bằng ánh sáng trắng ATW.

- Chức năng che vùng riêng tư Privacy Masking.

- Hỗ trợ LDC.

- Hỗ trợ 1 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB.

- Hỗ trợ hệ điều hành: Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12.

- Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Hỗ trợ chức năng cấp nguồn qua mạng PoE.

- Kích thước: Ø253x165mm.

- Trọng lượng: 3200g.

Features

- Max. 20M 180˚/220˚ panoramic stitching image.

- Panoramic stitching, original, crop view channel.

- H.265 / H.264: Max. 30fps at all resolutions.

- MJPEG: Max. 15fps at under 2Megapixel resolutions.

- H.265, H.264, MJPEG codec, WiseStream II supported.

- Tampering, Loitering, Directional detection, Virtual line, Enter / Exit.

- (Dis) Appear, Audio detection,Motion detection, Handover, Sound classification, Heatmap.

- microSD/ SDHC/ SDXC 2 slots, PoE+, IP66, IK10.

Đặc tính kỹ thuật

ModelPNM-9030V
Video
Imaging Device1/2.8 inch 5MP CMOSx4
Resolution[180˚ mode] 6096x2540, 5760x2400, 5472x2280, 5184x2160, 4800x2000, 4560x1900, 4096x1704, 3840x1600, 2688x1120, 2560x1064, 2048x852, 1920x800, 1280x532, 640x264 [220˚ mode] 7744x1936, 6096x1524, 5760x1440, 5472x1368, 5184x1296, 4800x1200, 4560x1140, 4096x1024, 3840x960, 2688x672x 2560x640, 2048x512, 1920x480, 1280x320, 640x160
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(60Hz/50Hz)
Min. IlluminationColor: 0.15Lux(F2.0, 1/30sec) B/W: 0.01Lux (F2.0, 1/30sec)
Video OutUSB : Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)4mm Fixed
Max. Aperture RatioF2.0
Angular Field of View[180˚ mode] H: 180˚, V: 70˚ [220˚ mode] H: 220˚, V: 52˚
Min. Object Distance3m(9.84ft)
Focus ControlFixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0˚~355˚ / 0˚~60˚
Operational
Camera TitleDisplayed up to 75 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNR
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking16ea, rectangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDirectional detection, Motion detection,, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business IntelligenceHeatmap
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output
Network
EthernetRJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual(5ea area), WiseStream
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(15 users) / Multicast Multiple streaming(Up to 5 or 3 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming InterfaceONVIF Profile S/G SUNAPI(HTTP API)
General
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge StorageMicro SD/SDHC/SDXC 1slot 256GB
Memory8GB RAM, 4GB Flash
Environmental
Operating Temperature / Humidity-40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity-40°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
CertificationIP66, IK10
Input VoltagePoE+(IEEE802.3at, Class4), 12VDC
Power ConsumptionPoE+: Max 25.5W 12VDC: Max 21.0W
Mechanical
Color / MaterialIvory / Aluminum
DimensionsØ253x165mm
Weight3200g

- Hãng sản xuất: Hanwha Techwin Hàn Quốc.

- Bảo hành: 24 tháng.
