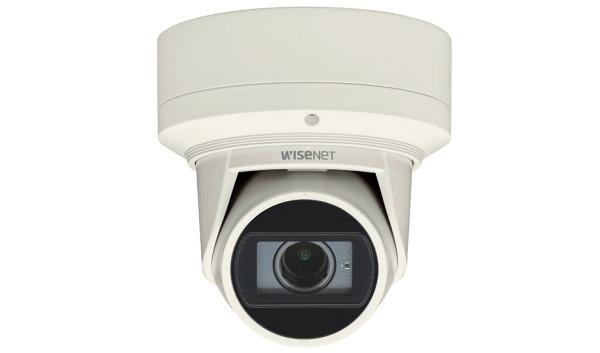

Camera IP Flateye hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET QNE-6080RV
- Cảm biến hình ảnh: 1/2.9 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ khe cắm thẻ nhớ micro SD / SDHC / SDXC dung lượng lưu trữ 128GB.
- Độ phân giải camera ip: 2.0 Megapixel.
- Độ nhạy sáng: 0.2Lux@F1.6 (Color), 0Lux (B/W).
- Ống kính: 3.2~10mm (motorized varifocal).
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng phát hiện chuyển đổng Motion detection.
- Hỗ trợ WiseStream.
- Hỗ trợ LDC.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC.
- Công suất tiêu thụ: Max. 8.3W (PoE), Max. 7.6W (12VDC).
- Kích thước: Ø144.9 x 135.5mm.
- Trọng lượng: 1.3kg.
- Màu sắc và chất liệu: Ivory / Metal.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.9 inch 2MP CMOS |
| Effective Pixels | 2,000(H) x 1,121(V) |
| Min. Illumination | Color: 0.2Lux |
| BW: 0Lux (IR LED on) | |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H : 104.2°(Wide) ~ 31.2°(Tele) / V : 55.1°(Wide) ~ 17.5°(Tele) / D : 124.3°(Wide) ~ 35.8°(Tele) |
| Focus Control | Simple focus (Motorized V/F), Manual, Remote control via network |
| Lens Type | DC Auto Iris |
| Mount Type | Board type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~70˚ / 0˚~360˚ |
| Operational | |
| IR Viewable Length | 30m(98.43ft) |
| Camera Title | Off / On (Displayed up to 20 characters per line) |
| - W / W : English / Numeric / Special characters | |
| - China : English / Numeric / Special / Chinese characters | |
| - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), | |
| Transparency, Auto scale by resolution | |
| Day & Night | True Day & Night |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR (Off/ On) |
| Motion Detection | Off / On (4ea polygonal zones) |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Video Rotation | Flip, Mirror, Hallway view |
| Analytics | Motion detection with metadata, Tampering, Defocus detection |
| Alarm I/O | Input 1 / Output 1 |
| Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection |
| Alarm Events | File upload via FTP and E-mail, Local storage recording at event, Notification via |
| E-mail, External output | |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Pixel Counter | Support (Plug-in viewer only) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264: Max. 30fps at 2M all resolutions, MJPEG: Max. 15fps |
| Smart Codec | WiseStream |
| Video Quality Ajustment | H.265 / H.264 : Target bitrate level control, MJPEG : Quality level control |
| Bitrate Control | H.265 / H.264: CBR or VBR, MJPEG: VBR |
| Streaming | Multiple streaming (Up to 3 profiles) |
| Audio I/O | G.711 u-law /G.726 Selectable |
| G.726(ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Edge Storage | micro SD / SDHC / SDXC (Max. 128GB), NAS |
| - Motion images recorded in the SD memory card can be downloaded | |
| - Manual recording at local PC | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Recommended Browser: Google Chrome | |
| Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) | |
| Central Management Software | SmartViewer |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | PoE (IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 8.3W |
| 12VDC: Max 7.6W | |
| Mechanical | |
| Color / Material | Ivory / Metal |
| Dimensions | Ø144.9 x 135.5mm |
| Weight | 1.3kg |
- Bảo hành: 24 tháng.
