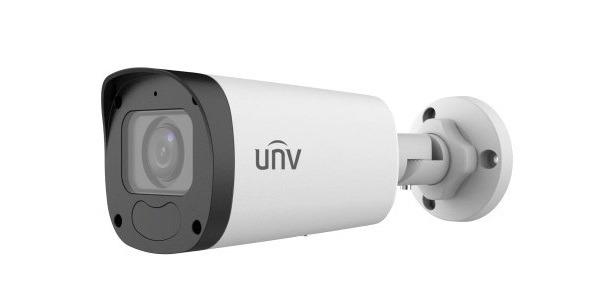

Camera IP hồng ngoại 2.0 Megapixel UNV IPC2322LB-ADZK
- Camera IP thân trụ 2MP, chuẩn Ultra265.
- Cảm biến hình ảnh: 1/2.7 inch progressive scan CMOS.
- Độ phân giải: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps.
- Chuẩn nén: Ultra265/H.265/H.264/MJPEG.
- Hỗ trợ 3 luồng video.
- Ống kính: 2.8-12mm Motorized.
- Tầm quan sát hồng ngoại: 50 mét.
- Độ nhạy sáng: 0.005Lux (F1.6, AGC ON).
- Hỗ trợ công nghệ nén băng thông U-code.
- Tính năng thông minh: Phát hiện cơ thể người, Phát hiện chuyển động, Cảnh báo giả mạo.
- Tính năng camera quan sát: Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống nhiễu 3DNR, vạch báo động, phát hiện chuyển động, chống ngược sáng WDR120db.
- Tiêu chuẩn chống bụi nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ micro trên camera.
- Hỗ trợ khe cắm thẻ nhớ 256GB.
- Hỗ trợ điều khiển ống kính qua phần mềm.
- Chuẩn Onvif quốc tế.
- Hỗ trợ tên miền miễn phí trọn đời.
- Nguồn cấp: DC12V (± 25%) và PoE.
- Vật liệu vỏ: kim loại.
Đặc tính kỹ thuật
| Camera | |
| Sensor | 1/2.7 inch, 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
| Angle of View (H) | 109.06°~ 57.96° |
| Angle of View (V) | 35.38°~ 19.74° |
| Angle of View (O) | 112.62°~39.6° |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON), 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 50m (164ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | Supported |
| HLC | Supported |
| BLC | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Smart | |
| Behavior Detection | Human Body Detection, Motion Detection, Tampering Alarm |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0W |
| Dimensions (L × W × H) | 206 × 74 × 74mm |
| Net Weight | 0.54kg |
| Material | metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Ingress Protection | IP67 |
| Reset Button | Supported |
- Bảo hành: 24 tháng.
