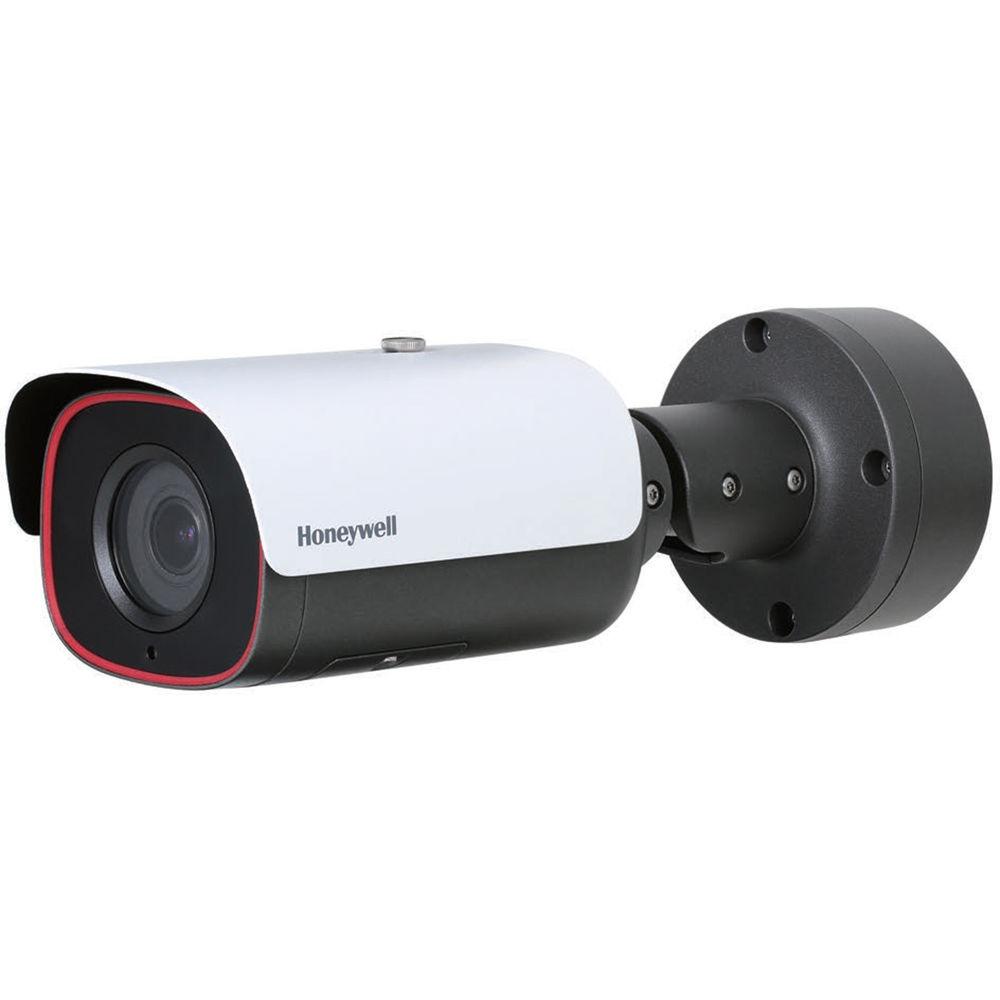

Camera IP hồng ngoại 4.0 Megapixel HONEYWELL HBW4GR1V
- Cảm biến hình ảnh: 1/3-inch progressive scan CMOS.
- Độ phân giải camera ip: 4.0 Megapixel.
- Ống kính: 2.7-13.5 mm MFZ, DC IRIS, optical zoom 5x lens F1.6.
- Tốc độ khung hình: Lên đến 30 fps.
- Tầm quan sát hồng ngoại: 60 mét.
- Độ nhạy sáng tối thiểu: Color: 0.01Lux @f/1.6, B/W: 0Lux@f/1.6(IR on).
- Thẻ nhớ: Micro SDHC Capacity Max 32GB/ Micro SDXC Capacity Max 128GB.
- Chuẩn nén hình ảnh: H.265+, H.265, H.264 and MJPEG bit rate control.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn va đập: IK10.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC/ 24VAC.
Đặc tính kỹ thuật
| Model | HBW4GR1V |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | 1/3-inch 4 Megapixel progressive scan CMOS |
| Number Of Pixels (H × V) | 4MP - 2560x1440/2688x1520 |
| Minimum Illumination | Color: 0.01Lux @f/1.6, B/W: 0Lux@f/1.6(IR on) |
| S/N Ratio | 50dB minimum |
| Electronic Shutter Speed | Auto/Manual, 1/3(4) ~1/100000s |
| IR Distance | 60m |
| Day/Night | Mechanical ICR (ON/ OFF/ AUTO selectable) |
| Backlight Compensation | BLC/ HL/ WDR/ SAC (Scene Adaptive Control) |
| Wide Dynamic Range (WDR) | 120dB (50/60fps off) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Customize Region |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| Privacy Masking | 4 configurable windows |
| Defog | Auto/Manual/Off |
| Lens | 2.7-13.5 mm MFZ, DC IRIS, optical zoom 5x lens F1.6 |
| Angle Of View | H: 110° - 30°, V: 53° - 18° |
| Audio/Two-Way | Line In/Out |
| Alarm Input/Output | 2 In / 1 Out |
| Analog Output Support | Twin outputs (for adjustment only) |
| Ethernet | RJ-45 (10/100Base-T) |
| IP SPECIFICATIONS | |
| Video Compression | H.265+, H.265, H.264 and MJPEG bit rate control (CBR and VBR) |
| Resolution | - 16:9: 3M (2304×1296)/ 1080p (1920×1080)/ 720p (1280×720) - 4:3: 1.3M (1280×960)/VGA (640×480) - Other: 4M (2688x1520)/ (2560x1440)/ D1 (704×576/704×480)/ CIF (352×288/352×240) |
| Frame Rate | - Main stream: 4M (1~25/30fps) - Sub stream: D1 (1~25/30fps) - Third stream: 4M(1~25/30fps) Simultaneous Main stream and Third stream at 4MP (Main stream +Third stream <=34fps, 2nd stream off) |
| Audio Compression | G.711a/ G.711Mu/ AAC/G.726 |
| Audio Stream | Full duplex, simplex |
| Supported Web Browsers | IE11/Chrome(with application)/Firefox(earlier than 52.0 version) |
| Supported OS | Windows® 7 32-bit/64-bit; Windows® 10 32-bit/64-bit |
| Supported Protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;SNMP |
| Compatibility | ONVIF Profile S, G and Q |
| Maximum Users Access | 20 users |
| Security | User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log, TLS1.2, AES256, SSH/Telnet closed, FTP disabled, PCI-DSS compliance, Hardware chipset for private key |
| Heat Map | Support |
| Built-In Alarm & Event | - Event type: Motion Detection/ Video Tampering/Face Detection/SD Card Error/SD Card Capacity Warning/Audio Detection/ Object Abandoned/Object Missing/Tripwire/Intrusion - Event linkage: Recording on SD card, Relay output, Email, Snapshot - Event output: ONVIF, ISOM |
| Micro SD | Micro SDHC Capacity Max 32GB Micro SDXC Capacity Max 128GB |
| Micro SD Function | Event trigger recording; Continuous and scheduled recording; Automatic recording when network fails |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Power Supply | PoE+(802.3at) Class 4/12VDC/AC24V |
| Long Distance Poe Support | 3X POE (300m @100Mbps) |
| AC Frequency | 50/60 Hz |
| Power Consumption | Max 17.6W |
| Auxiliary Power Supply | 2.0W, DC12V (+/-5%) |
| MECHANICAL | |
| Dimensions | 11.1 × 4.3 in. (281.0 × 110.0 mm) |
| Weight | Product weight: 4.70lb (2130g) Package Weight: 6.28lb (2847g) |
| Construction | Die-cast aluminum housing with powder coat |
| Construction Color | RAL 9003 (White) and RAL 7022 (Grey) |
| ENVIRONMENTAL | |
| Operating Temperature | -40°F to 140°F (–40°C to 60°C) |
| Relative Humidity | 0% to 95%, non-condensing |
| Gore Vents | Yes |
| Ingress Protection | IP 67 |
| Impact Resistance | IK10 |
| Heater, Fan Option | Heater |
| REGULATORY | |
| Emissions | FCC Part 15, CE (EN 55032); Complies with RCM (AS/NZS) |
| Immunity | CE (EN 50130-4) |
| Safety | North America UL Listed to UL/CSA 60950-1, CE (EN 60950-1); North America UL Listed to UL/CSA 60950-22, CE (EN 60950-22) |
| RoHS | EN 50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
