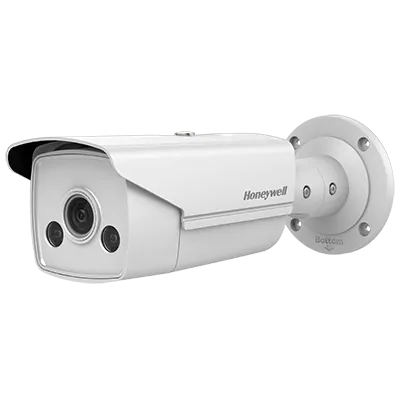

Camera IP hồng ngoại 4.0 Megapixel HONEYWELL HBW4PGR1
- Cảm biến hình ảnh: 1/2.8-inch progressive CMOS.
- Độ phân giải camera ip: 4.0 Megapixel.
- Ống kính: 4 mm, F1.6, Fixed.
- Tốc độ khung hình: Lên đến 30 fps.
- Độ nhạy sáng tối thiểu: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR.
- Hỗ trợ Micro SD/SDHC/SDXC card (128G), local storage.
- Tầm quan sát hồng ngoại: 50 mét.
- Chuẩn nén hình ảnh: H.265/H.264.
- Tiêu chuẩn chống nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12 VDC.
Đặc tính kỹ thuật
| Model | HBW4PGR1 |
| Operational | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive |
| Image Sensor | 1/2.8-inch 2 Megapixel progressive CMOS |
| Number Of Pixels (H × V) | 2688(H) x1520(V) |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| S/N Ratio | More than 50dB |
| Electronic Shutter Speed | 1/3~1/100000s |
| Ir Distance | Up to 50m(164ft), depending on scene reflectance |
| Ir Light Control | ON/OFF |
| Ir Light Number | 2 |
| Day/Night | Day, Night, Auto, Scheduled-Switch, Triggered by Alarm Input |
| Backlight Compensation | BLC/ WDR |
| White Balance | AWB1, MWB, Locked WB, Fluorescent Lamp, Incandescent Lamp, Warm Light Lamp, Natural Light |
| Wide Dynamic Range | 120 dB |
| Noise Reduction | 3D DNR |
| Privacy Masking | Off / On (4 Areas, Rectangle) |
| Motion Detection | Off / On (8 Zones, Rectangle) |
| Region Of Interest | 1 fixed region for main stream and sub-stream |
| Lens | 4 mm, F1.6, Fixed |
| Angle Of View | H:78°, V: 42° |
| Video | |
| Video Compression | Main stream: H.265/ H.264 Main Profile/ H.264 High Profile/ Smart Codec Sub - stream: H.265/ H.264 Main Profile/ H.264 High Profile/ MJPEG Third stream: H.265/ H.264 Main Profile/ H.264 High Profile |
| Resolution | 4M(2688 × 1520)/ 3M(2304 × 1296)/ 1080p(1920 × 1080)/ 720p(1280 × 720)/ VGA(640 × 480)/ (640 × 360)/ QVGA(320 × 240)/ CIF(352 × 288/ 352 x 240) |
| Frame Rate | Main Stream: 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) Sub Stream 50Hz: 25fps (640 × 480 , 640 × 360, 320 × 240) 60Hz : 30fps (640 × 480 , 640 × 360, 320 × 240) Third Stream 50Hz: 25fps (1280 × 720 , 640 × 360 , 352 × 288) 60Hz: 30fps (1280 × 720 , 640 × 360 , 352 × 240) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | 256Kbps to 16Mbps |
| Audio | |
| Compression | G.722.1, G.711 ulaw, G.711alaw, G.726, MP2L2, PCM |
| Interface | LineIn |
| Network | |
| Ethernet | RJ-45 (10/100M self-adaptive adaptive Ethernet port) |
| Supported Web Browsers | Internet Explorer (11.0+) |
| Supported Os | Windows® 7 32-bit/64-bit; Windows® 10 32-bit/64-bit |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS ,RTP, RTSP, RTCP, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Interoperability | ONVIF Profile G/S/T |
| Maximum Users Access | 32 Users |
| Security | User account and password protection HTTPS, IP Filter, Digest authentication, User access log, TLS1.2 only, AES-128/256, SSH/Telnet closed, sFTP by default, PCIDSS compliance |
| Event | Network disconnection, IP address conflict, Illegal access, Video tampering, Motion detection, HDD full, HDD error |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage |
| Electrical | |
| Power Supply | 12 VDC, 0. 6A PoE (802.3af 37V to 57V), 0.2A to 0.1A |
| Power Consumption | <5.2W |
| Mechanical | |
| Dimensions | Ø105 × 299.7 mm ( 4.1 '× 11.8 ') |
| Product Weight | 1.18Kg(2.6lb) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
