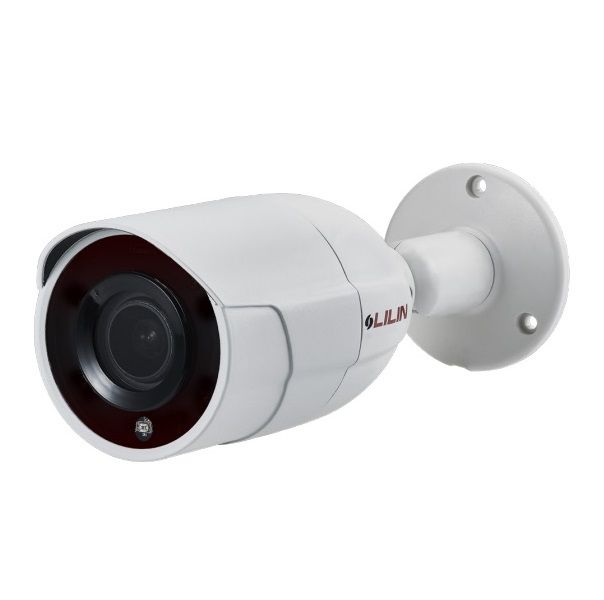

Camera IP hồng ngoại 5.0 Megapixel LILIN Z6R8952X3
- Cảm biến hình ảnh: 1/2.7 inch CMOS image sensor.
- Độ phân giải: 5.0 megapixel.
- Hỗ trợ các tính năng camera: Chức năng giảm nhiễu kỹ thật số 3D-NR, chống ngược sáng 2D WDR, AGC.
- Ống kính: 2.8~12mm.
- Tầm quan sát hồng ngoại: 35 mét.
- Hỗ trợ âm thanh 2 chiều.
- Hỗ trợ PoE.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Video Performance | |
| Min. Illumination | Color: 0.08 Lux at F1.6 ; B/W: 0.02 Lux at F1.6 ; 0 Lux with IR LED ON |
| Lens / Night Vision (Infrared LED) | |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.6 – F2.8 |
| Iris Control | Fixed |
| Angle of View | 102.3° (W) – 36.9° (T) (H) , 53.2° (W) – 20.6° (T) (V) , 122.7° (W) – 42.1° (T) (D) |
| Peak Wavelength | 850nm |
| Beam Spread | 60°, 90° |
| Radiant Distance | 35M |
| Sensor | |
| Pick Up Element | 1/2.7 inch CMOS image sensor |
| Effective Pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| Light Sensor | Yes |
| Certifications | |
| CE / FCC / UKCA | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating | IK10 (Casing) |
| PC Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web Browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Audio | |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Video Streaming | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of Streams | 3 |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Network Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP Address | Yes |
| Video Resolutions (H x V) | |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 HDR mode: 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 |
| Video Functions | |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| S/N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| Auto Focus | One Push |
| EV (Exposure Value) | Adjustable |
| Integration | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card Recording | Support (128GB)Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| Event Triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Network | |
| Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| CPU, Memory | Embedded Dual-core ARM Cortex-A9 1.2GHz CPU & (DDR 1024MB/Flash 512MB) |
| OS | Embedded Linux 4.14 |
| Network Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T,ONVIF Profile G |
| Max number of online users | 10 simultaneous users |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Power and Environment | |
| Starting Temperature | -10° C – +50° C (-14° F – 122° F) |
| Operating Temperature | -30° C – +50° C (-22° F – 122° F) |
| Storage Temperature | -25° C – +60° C (-13° F – 140° F) |
| Humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 8.5W /POE, 10.0W |
| Mechanical | |
| Dimension | 75(W) × 75(H) × 206(D) mm |
| Weight | 575g |
| Casing Material | Aluminum alloy |
- Bảo hành: 36 tháng.
