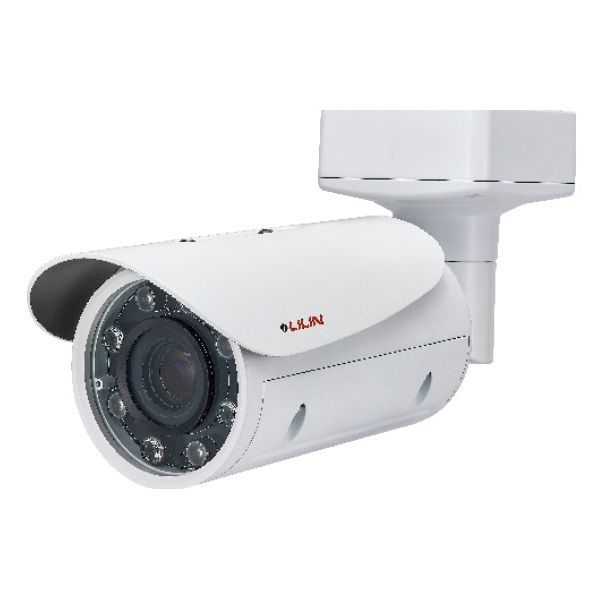

Camera IP hồng ngoại 8.0 Megapixel LILIN Z7R8082EX30
- Cảm biến hình ảnh: 1/2.8 inch CMOS image sensor.
- Độ phân giải: 8.0 megapixel.
- Ống kính: 4.94 (WIDE) – 148.2 (TELE) mm.
- Tầm quan sát hồng ngoại: 80 mét.
- Hỗ trợ đàm thoại hai chiều.
- Hỗ trợ các tính năng camera: Giảm nhiễu kỹ thuật số 3D-NR, AGC, HDR (140dB).
- Phát hiện chuyển động, chống phá hoại, cảnh báo...
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Video Performance | |
| Min. Illumination | 0.02 lux (1/30 sec, F1.3(Wide), 30IRE, AGCGain: 60dB ICR-OFF Color mode) 0.005 lux (1/30 sec, F1.3(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) |
| Lens / Night Vision (Infrared LED) | |
| Focal Length | 4.94 (WIDE) – 148.2 (TELE) mm |
| Iris / Aperture | F1.3(Wide) – F4.8(Tele) |
| Iris Control | DC-IRIS |
| Angle of View (H) | 59.8° (W) – 2.1° (T) |
| Angle of View (V) | 34.8° (W) – 1.2° (T) |
| Angle of View (D) | 63.1° (W) – 2.5° (T) |
| Peak Wavelength | 850nm |
| Beam Spread | Automatically adjusted, Depending on the zoom ratio |
| Radiant Distance | 80M |
| Sensor | |
| Pick Up Element | 1/2.8 inch CMOS image sensor |
| Effective Pixels | 3864 (H) × 2176 (V) = 8,408,064 (Pixels) |
| Light Sensor | Yes |
| Certifications | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating | IK10 (Casing) |
| PC Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web Browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Input / Output | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Microphone | External Microphone Required |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC |
| Alarm Input / Output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, BNC Connector |
| Video Streaming | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of Streams | 4 |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Network Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP Address | Yes |
| Video Resolutions (H x V) | |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 |
| Video Functions | |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual one push |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S/N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| High Dynamic Range | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| Auto Focus | Auto focus ( Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| EV (Exposure Value) | Adjustable |
| Integration | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card Recording | Support (128GB) Micro SD/SDHC/ SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB,1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Event Triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Control Interface | RS-485, Half duplex, Support MLP2, PELCO D/P communication protocol |
| Languages | English, Traditional Chinese, Simplified Chinese, Russian, Italian, Hungarian, Korean, French, Turkish, Arabic, Spanish, Japanese |
| Network | |
| Ethernet | 10/100/1000 Mbps Base-T, RJ-45 |
| ePTZ & Digital Zoom | Yes |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| CPU, Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| OS | Embedded Linux 4.14 |
| Network Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Max number of online users | 10 simultaneous users |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Power and Environment | |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating Temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage Temperature | -25°C – +60°C (-13°F – 140°F) |
| Humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% (Terminal connector) / PoE+ (IEEE 802.3at compliant) |
| Power Consumption | DC12V, 15.9W / PoE+, 18.3W |
| Mechanical | |
| Dimension | 116(W) × 112(H) × 372(D) mm |
| Weight | 1800g |
| Casing Material | Aluminum alloy |
| Window | Ø82 heat resistant glass |
- Bảo hành: 36 tháng.
