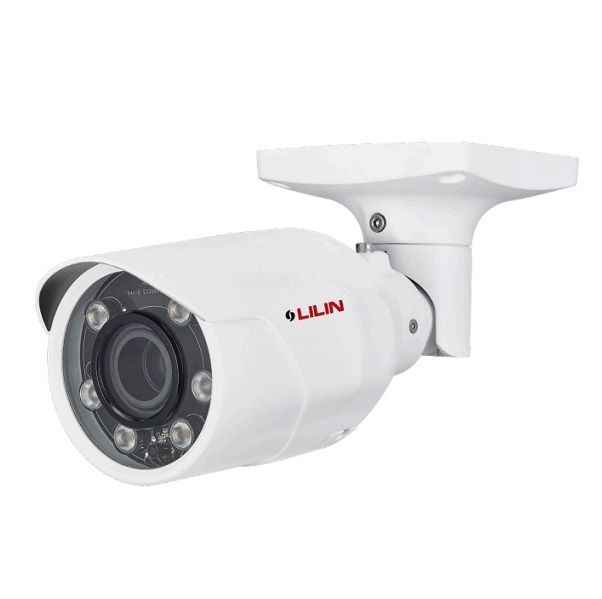

Camera IP hồng ngoại 8.0 Megapixel LILIN Z7R8182X10-P
- Cảm biến hình ảnh: 1/2.8 inch CMOS image sensor.
- Độ phân giải: 8.0 megapixel.
- Ống kính: 5 – 50mm (zoom/focus motorized).
- Tầm quan sát hồng ngoại: 55 mét.
- Hỗ trợ đàm thoại hai chiều.
- Hỗ trợ các tính năng camera: Giảm nhiễu kỹ thuật số 3D-NR, AGC, HDR (140dB).
- Hỗ trợ các tính năng: Motion/Tamper/Audio/Alarm/Network lost detection/Global Counter/Virtual Input/Metadata.
- Tiêu chuẩn chống bụi và nước: IP68 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Video Performance | |
| Min. Illumination | Color : 0.05 Lux at F1.6 ; B/W : 0.01 Lux at F1.6 ; 0 Lux with IR LED ON |
| Lens / Night Vision (Infrared LED) | |
| Focal Length | 5 – 50mm (zoom / focus motorized) |
| Iris / Aperture | F 1.6 |
| Iris Control | P-iris |
| Angle of View (H) | 41.8° (W) – 6.4° (T) |
| Angle of View (V) | 31.0° (W) – 4.8° (T) |
| Angle of View (D) | 53.2° (W) – 8.0° (T) |
| Peak Wavelength | 850nm |
| Beam Spread | 30° |
| Radiant Distance | 55M |
| Sensor | |
| Pick Up Element | 1/2.8 inch CMOS image sensor |
| Effective Pixels | 3864 (H) × 2176 (V) = 8,408,064 (Pixels) |
| Light Sensor | Yes |
| Certifications | |
| CE / FCC / UKCA | Yes, EMI Class A |
| IP Rating | IP68 |
| Vandal Resistant Rating | IK10 (Casing) |
| PC Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web Browser | Microsoft® Internet Explorer® 9 or above, Microsoft® Edge (IE mode) |
| Input / Output | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Microphone | External Microphone Required |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC |
| Alarm Input / Output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, BNC Connector |
| Video Streaming | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of Streams | 4 |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Network Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP Address | Yes |
| Video Resolutions (H x V) | |
| Resolution | 4K(3840 × 2160), 6M(3072 × 2048), 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 HDR mode: 60Hz: 30 FPS @ 3840 × 2160 50Hz: 25 FPS @ 3840 × 2160 |
| Video Functions | |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual one push |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S/N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| High Dynamic Range | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| Auto Focus | One Push |
| Smart IR | Yes |
| EV (Exposure Value) | Adjustable |
- Bảo hành: 36 tháng.
