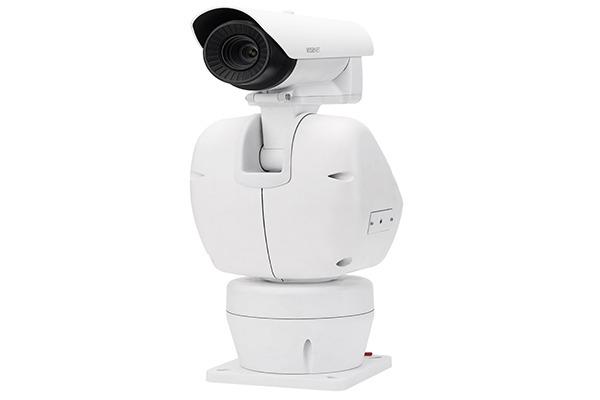

Camera IP nhiệt định vị 0.3 Megapixel Hanwha Techwin WISENET TNU-4041T
- Độ phân giải camera ip: 0.3 Megapixel.
- Chuẩn nén hình ảnh: H.265/H.264/JPEG.
- Ống kính: 19mm (fixed).
- Góc quan sát: H:32˚ / V:24.3˚ / D:39.2˚.
- Chức năng ổn định hình ảnh số Digital Image Stabilization.
- Chức năng phát hiện chuyển động Motion Detection.
- Ethernet: RJ-45(10/100BASE-T).
- Hỗ trợ 1 khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lưu trữ 256GB.
- Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 24VAC.
- Kích thước: (W)219×(H)528×(D)335mm.
- Trọng lượng: 11.7kg.
Đặc tính kỹ thuật
| Model | TNU-4041T |
| Video | |
| Imaging Device | Uncooled micro bolometer |
| Resolution | 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps at all resolutions Motion JPEG: Max. 30fps |
| NETD | ＜50mK |
| Pixel size | 17㎛ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 19mm Fixed |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H:32˚ / V:24.3˚ / D:39.2˚ |
| Min. Object Distance | 11m |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | 0.025°~120°/sec |
| Tilt Range | -90˚ ~40˚ |
| Tilt Speed | 0.025°~40°/sec |
| Sequence | Preset(300ea), Group(6ea) |
| Preset Accuracy | 0.3˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Color Palettes | Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max 84W(Heater on), Max 62W(Heater off) |
| Mechanical | |
| Color / Materia | White / Aluminum |
| RAL Code | RAL9003 |
| Dimensions | (W)219×(H)528×(D)335mm |
| Weight | 11.7 kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
