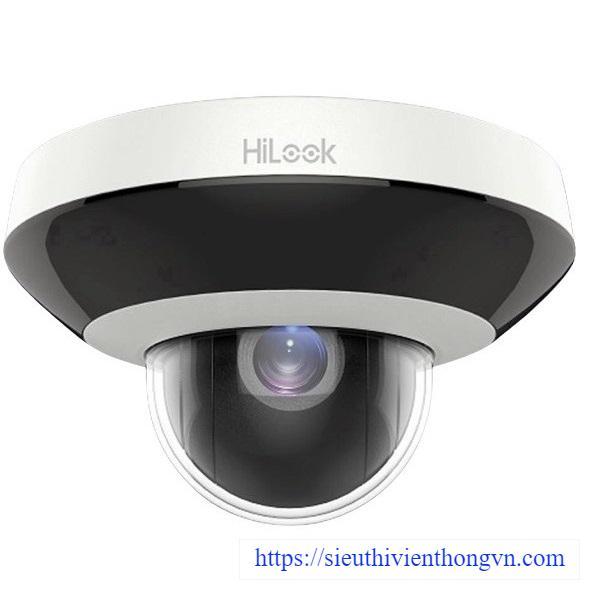

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HILOOK PTZ-N1200I-DE3
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải tối đa: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Độ nhạy sáng: 0.05Lux@F1.6 (Chế độ màu); 0.005Lux@F1.6 (Đen/trắng).
- Ống kính: 2.8mm (tùy chọn 4mm).
- Tầm quan sát hồng ngoại: 15 mét.
- Tích hợp khe cắm thẻ nhớ, dung lượng tối đa 256GB.
- Hỗ trợ 1 cổng Audio vào và 1 cổng Audio ra.
- Hỗ trợ chức năng chống ngược sáng WDR 120dB.
- Hỗ trợ 4 vùng ROI, 24 mặt nạ riêng tư.
- Hỗ trợ 300 preset.
- Hỗ trợ 3 luồng dữ liệu, cho phép tối đa 20 người truy cập cùng lúc.
- Tiêu chuẩn chống bụi và nước: IP66 (Thích hợp sử dụng trong nhà và ngoài trời).
- Chức năng cung cấp nguồn qua Ethernet (PoE).
- Nguồn điện: DC12V.
Đặc tính kỹ thuật
| Model | PTZ-N1200I-DE3 |
| Camera Module | |
| Image Sensor | 1/2.-inch progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance | Auto/ Manual/ ATW (Auto-tracking White Balance)/ Indoor/ Outdoor/ Fluorescent Lamp/ Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16x |
| Privacy Mask | 24 programmable privacy masks |
| WDR | 120 dB WDR |
| Lens | |
| Focal Length | 2.8 mm |
| Field of View | Horizontal FOV 101.6°; Vertical FOV 56°, Diagonal FOV 120° |
| Working Distance | > 0.7 m |
| Aperture | F1.6 |
| PTZ | |
| Movement Range (Pan) | 0° to 330° |
| Pan Speed | Configurable, from 0.1°/s to 100°/s Preset speed: 100°/s |
| Movement Range (Tilt) | From 0° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Power-off Memory | Yes |
| Park Action | Preset |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, Dome Reboot, Dome Adjust |
| Compression Standard | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Yes |
| H.265+ | Yes |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) |
| SVC | Yes |
| Smart Features | |
| Basic Event | Motion Detection, Video Tampering Detection, Exception |
| Smart Event | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| ROI | Main stream, sub-stream, and third stream respectively support four fixed areas. |
| IR | |
| IR Distance | Up to 15 m |
| Smart IR | Yes |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960,1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement | HLC, BLC, 3D DNR, Defog, EIS |
| Network | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/CIFS), ANR |
| Alarm Linkage | Alarm actions, such as Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x,Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8+, Chrome 31.0 to 44, Firefox 30.0 to 51,Safari 8.0+ |
| Interface | |
| Audio Interface | 1-ch audio input (line in) and 1-ch audio output (line out) |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE |
| General | |
| Power | 12 VDC (Max. 12 W), PoE (802.3af) (Max. 12 W) |
| Working Temperature | -10°C to 55°C (-14°F to 131°F) |
| Working Humidity | ≤ 90% |
| Protection Level | IP66 Standard, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Aluminum alloy, PC, PC+ABS |
| Dimensions | Φ 124.3 mm × 76.9 mm |
| Weight | Approx. 450g (0.99lb.) |
- Bảo hành: 24 tháng.
