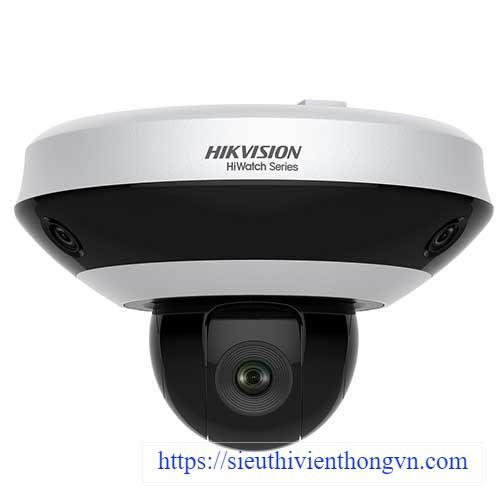

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HILOOK PTZ-P332ZI-DE3
- Camera PTZ toàn cảnh Panovu.
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng: 0.05Lux@F1.6 (Chế độ màu); 0.01Lux@F1.6 (Đen/trắng).
- Chuẩn nén hình ảnh: H.265/H.264+/H.264.
- Gồm 3 ống kính cố định về 3 hướng.
- Gồm 1 ống kính thay đổi tiêu cự: 2.8-12mm.
- Tầm quan sát hồng ngoại: 10 mét.
- Tích hợp khe cắm thẻ nhớ, dung lượng tối đa 256GB.
- Hỗ trợ 1 cổng Audio vào và 1 cổng Audio ra.
- Zoom quang: 4x.
- Hỗ trợ 2 luồng dữ liệu.
- Hỗ trợ tối đa 4 người xem, mỗi người xem 4 kênh cùng lúc.
- Hỗ trợ 8 vùng ROI, 24 mặt nạ riêng tư.
- Hỗ trợ 300 preset.
- Tiêu chuẩn bảo vệ: TVS2000V.
- Chức năng cung cấp nguồn qua Ethernet (PoE).
- Nguồn điện: DC12V.
Đặc tính kỹ thuật
| Model | PTZ-P332ZI-DE3 |
| Smart Features | |
| Basic Event Detection | Motion Detection, Video Tampering Detection, Exception |
| Smart Detection | Audio Exception Detection, Intrusion Detection, Line Crossing Detection |
| Smart Record | ANR (Automatic Network Replenishment) |
| ROI | Main stream supports eight fixed areas. |
| Smart Image Enhancement | HLC/BLC/3D DNR/Regional Exposure/Regional Focus |
| Lens | |
| FOV | Horizontal field of view: 120° to 56.6° (wide - tele),Vertical field of view: 61.8° to 31.7° (wide - tele),Diagonal field of view: 149° to 65° (wide - tele) |
| Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| Zoom Speed | Approx.5.4 s (optical, wide - tele) |
| Working Distance | 10 mm to 1500 mm (wide - tele) |
| Aperture Range | F2.0 to F2.4 |
| Image | |
| Max. Resolution | Main stream:,50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Network | |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
| Simultaneous Live View | Up to 4 × 4 channels |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Camera Module | |
| Image Sensor | 1/2.8-inch progressive scan CMOS |
| Min. Illumination | Color: 0.05 Lux @(F2.0, AGC ON),B/W: 0.01 Lux @(F2.0, AGC ON),0 Lux with IR |
| White Balance | Auto/ Manual/ ATW (Auto-Tracking White Balance)/ Indoor/ Outdoor/ Fluorescent Lamp/ Sodium Lamp |
| Gain | Auto/ Manual |
| Shutter Time | 50Hz: 1/25s to 1/30,000s 60Hz: 1/30s to 1/30,000s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 8x |
| Privacy Mask | 8 programmable privacy masks |
| Focus Mode | Semi-automatic/Manual |
| WDR | Digital WDR |
| Interface | |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio output |
| Network Interface | 1 RJ45 10 M/100 M Ethernet |
| Dual-VCA | Support |
| Supplement Light | |
| IR Distance | Up to 10 m IR (radius) |
| General | |
| Material | PC + ABS & Aluminum alloy |
| Dimensions | Φ 183 mm × 133 mm (Φ 7.20' × 5.24') |
| Weight | Approx. 0.9 kg (1.98 lb) |
| Protection Level | TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Power | 12 VDC, 2.0 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class 4 Max.24 W (Max. 6 W for IR) |
| Working Temperature | -10°C to 50°C (14°F to 122°F) |
| Working Humidity | ≤ 90% |
| PTZ | |
| Movement Range (Pan) | Pan: 0° to 350°; |
| Pan Speed | Pan speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s |
| Movement Range (Tilt) | Tilt: 0° to 90° |
| Tilt Speed | Tilt speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Power-Off Memory | Support |
| PTZ Status Display | Support |
| Preset Freezing | Support |
| Scheduled Task | Preset/Dome Reboot/Dome Adjust |
| PTZ Linkage | Support |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264/MJPEG,H.264: Main Profile/High Profile |
| Video Bitrate | 32 Kbps to 8192 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2 |
| Audio Bitrate | G.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212: 32 Kbps/64 Kbps/128 Kbps |
| SVC | Support |
- Bảo hành: 24 tháng.
