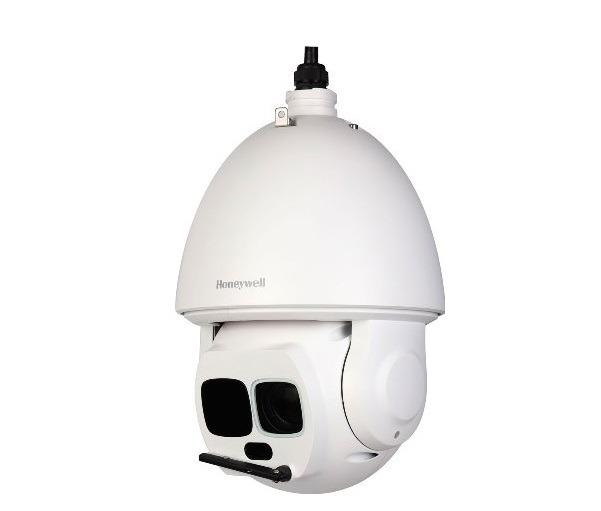

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HONEYWELL HDZ302LIW
- Cảm biến hình ảnh: 1/1.9-inch Sony Progressive CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính: 6 mm - 180 mm/ F1.6 - F4.8.
- Tốc độ khung hình: Lên đến 60 fps.
- Độ nhạy sáng tối thiểu: 0.005 lux colour/0.0005 lux B/W @ F1.6; 0 lux IR On.
- Tầm quan sát hồng ngoại: 150 mét.
- Thẻ nhớ: Support for micro SD up to 128 GB (card not included).
- Chuẩn nén hình ảnh: H.264/ MJPEG/ MPEG4.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 24 VAC ± 25%, 3A and High PoE (Class 5).
Đặc tính kỹ thuật
| Model | HDZ302LIW |
| CAMERA | |
| Image Sensor | 1/1.9 in. Sony Progressive CMOS |
| Optical Zoom | 30x |
| Digital Zoom | 16x |
| Number Of Pixels (H X V) | 1920x1080 (1080p) |
| Shutter WDR | 120 dB |
| S/N Ratio | > 50 dB (AGC Off) |
| Minimum Illumination | 0.005 lux colour/0.0005 lux B/W @ F1.6; 0 lux IR On |
| IR Light Control | On (Zoom priority/Manual)/Off |
| IR Distance | Up to 150 m (492') |
| Focal Length | 6 mm – 180 mm |
| Max Aperture | F1.6 – F4.8 |
| Focus Mode | Manual/Auto/Semiauto |
| Angle Of View | H: 61.2° – 2.32° |
| White Balance | Auto/Indoor/Outdoor/ATW/Manual |
| AGC (Gain Control) | Auto (Max gain limit settings for Auto)/Manual |
| Iris Control | Auto/Manual |
| Electronic Shutter | 1/1 to 1/30,000 sec |
| Backlight Compensation | BLC/HLC/WDR |
| Electronic Image Stabilization | On/Off |
| Defog | On/Off |
| Day/Night | Auto/Colour/BW |
| OPERATIONAL | |
| Pan Travel | 360° endless |
| Tilt Travel | -10° to 90°, auto flip 180° |
| Manual Pan Speed | Up to 200°/s |
| Manual Tilt Speed | Up to 120°/s |
| Presets | 250 |
| Preset Accuracy | 0.225° |
| Preset Speed | Pan: Up to 200°/s; Tilt: Up to 200°/s |
| Tours | 8 |
| Auto Pan/Scan | 1/1 |
| Pattern | 5 |
| Privacy Masks | 24 |
| Auto Resume After Power Failure | Yes |
| Motion Detection | On/Off |
| Image Rotation | Flip |
| Audio In / Out | 1/1 |
| Alarm Input/Output | 7/2 |
| Auto Tracking | Auto/Manual |
| Event | Motion Detect; Video Tamper; Audio Detect; No SD card; SD card error; SD card capacity warning; Network disconnection; IP address conflict; Illegal access |
| Event Notification | Record (SD card and FTP), Relay output, Email, Preset, Tour, Pattern, Snapshot |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Power Source | 24 V AC ± 25%, 3A and High PoE (Class 5) |
| AC Frequency | 50/60 Hz |
| Power Consumption | 24W; 32 W (IR On) |
| MECHANICAL | |
| Dimensions | Ø240 mm x 382 mm (Ø9.45 in. x 15 in.) |
| Product Weight | 6.3 kg (13.9 lb) |
| Package Weight | 8.4kg (18.5 lb) |
| Construction Material | Aluminum |
| Construction Colour | RAL9003 (White) |
| Wiper Material | Silicone rubber |
| ENVIRONMENTAL | |
| Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | Less than 90%, non-condensing |
| Waterproof Standard | IP67 standard |
| Wiper | Yes |
| IP SPECIFICATIONS | |
| Video Compression | H.264/ MJPEG/ MPEG4 |
| Video Streaming | Primary Stream: 1080p @ 30 fps/720p @ 60 fps Second Stream: D1/CIF @ 30 fps Third Stream: 720p/D1/CIF @ 30 fps |
| Video Resolution | Up to 1920x1080p |
| Frame Rates | 720p: Up to 60/50 fps 1080p: Up to 30/25 fps |
| Audio Compression | G.711/G.711Mu |
| Audio Stream | Full-duplex, Simplex |
| Interface | RJ-45, 10/100 Mbps Ethernet |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP v2c/v3, Bonjour, DNS, DDNS, QoS, NTP, NFS |
| Maximum Users Access | 20 users |
| Security | User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log |
| MicroSD | Support for micro SD up to 128 GB (card not included) |
| MicroSD Function | Event trigger recording Continuous and scheduled recording Automatic recording when network fails |
| Supported Web Browsers | Internet Explorer (8.0+) |
| Supported OS | Windows 7 32-bit/64-bit |
| Communication | ONVIF Profile S |
| REGULATORY | |
| Emissions | EN55022, FCC Part 15 subpart B AS/NZS CISPR 22:2009+ A1 (2010) |
| Immunity | EN50130-4 |
| Safety | EU: EN60950-1, EN60950-22 North America UL listed to UL/CSA 60950-1 |
| RoHS | EN50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
