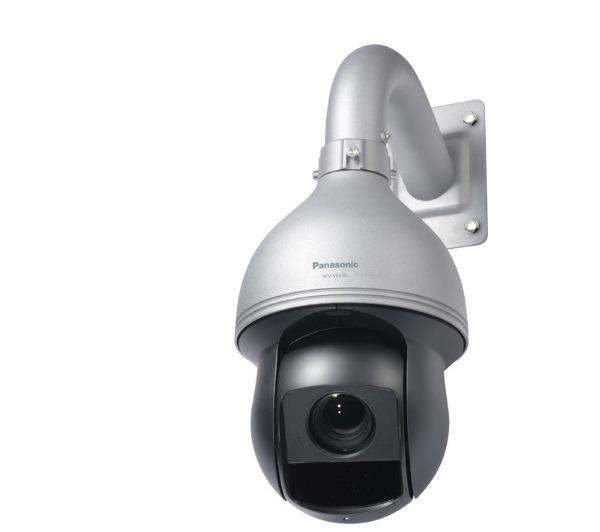

Camera IP Speed Dome hồng ngoại 2.0 Megapixel PANASONIC WV-V6430L
- Cảm biến hình ảnh: Approx. 1/2.8 type CMOS image sensor.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: 60 fps.
- Độ nhạy sáng tối thiểu: 0.13 lx/F1.6 (Color), 0 lx/F1.6 (IR on), 0.005 lx/F1.6 (BW).
- Tầm quan sát hồng ngoại: 150 mét.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời)
- Nhiệt độ hoạt động: -30°C to 55°C.
- Nguồn điện: 24VAC và PoE.
Đặc tính kỹ thuật
| Model | WV-V6430L |
| Camera | |
| Image sensor | Approx. 1/2.8 type CMOS image sensor |
| Minimum illumination | 0.13 lx/ F1.6 (Color), 0 lx/ F1.6 (IR on), 0.005 lx / F1.6 (BW) |
| Gain | Auto/ Manual |
| Back light compensation | OF / BLC/ HLC/ WDR |
| Shutter speed | Auto/ Shutter Priority/ Aperture Priority/ Manual, 1/1 sec~1/30000 sec |
| Day/ Night | Auto(ICR)/ Color/ Black & White/ Photoresistor |
| IR LED Light | Irradiation distance: 150 m {approx. 492 ft} |
| White Balance (W/B) | Auto/ Manual/ ATW/ Outdoor/ Indoor/ Outdoor Auto/Sodium Lamp auto, Sodium Lamp |
| Digital Noise Reduction (DNR) | Ultra DNR (2D/3D) ON/ OFF |
| Privacy masking | Up to 24 areas |
| Video Motion Detection (VMD) | Off/ On (4 Zone, Rectangle) |
| Tampering Detection | On/Off |
| Lens | |
| Focal length/ Zoom ratio | 4.5 mm - 135 mm {3/16 inches ~ 5-5/16 inches}/ 30x optical zoom |
| Angular field of view | H: 2.4 ° (TELE) – 60 ° (WIDE) V: 1.8 ° (TELE) – 36 ° (WIDE) |
| Pan and tilt | |
| Pan/tilt range | Pan:360°endless, Tilt:-15°~-90° |
| Preset | 300 |
| PTZ mode | 5 Pattern, 8 Tour, 5 Auto Scan |
| Network | |
| Network | 10BASE-T/ 100BASE-TX, RJ45 connector |
| Resolution | 1920x1080/ 1280x960/ 1280x720/ 640x480/ 640x360/ 320×240 |
| Image compression method | H.265/ H.264/ MJPEG |
| Frame rate | 1080P (1~50/60 fps)/ 1.3M (1~25/30 fps) /720P(1~25/30 fps) |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/ IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTCP, RTP, SMTP, NTP, DHCP, DNS, DDNS, FTP, QoS, 802.1x, Multicast |
| Maximum concurrent access number | 20 users (Number of sessions that can connect to cameras at the same time) |
| Compatible memory card | micro SDXC/SDHC Memory card 4 to 128 GB |
| Audio compression | G.711u/ G.726/ AAC |
| I/O port | Alarm Input 2 channel/ Output 1 channe |
| General | |
| Power source | 24 VAC, PoE plus |
| Power consumption | 24 VAC: 3A (50/ 60Hz) PoE+ 54 VDC: 450 mA (Class 4 device) |
| Ambient operating temperature/ Humidity | -30 °C to +55 °C {-22 °F to 131 °F} 10 % to 90 % (no condensation) |
| Water and dust resistance | Main body: IP66 |
| Dimensions | Ø186 mm(W) × 310 mm(H) { Ø 7-5/16 (W) × 1ft 7/32 (H) inches} |
| Weight (approx.) | Approx. 3.9 kg {8.6 lbs} |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
