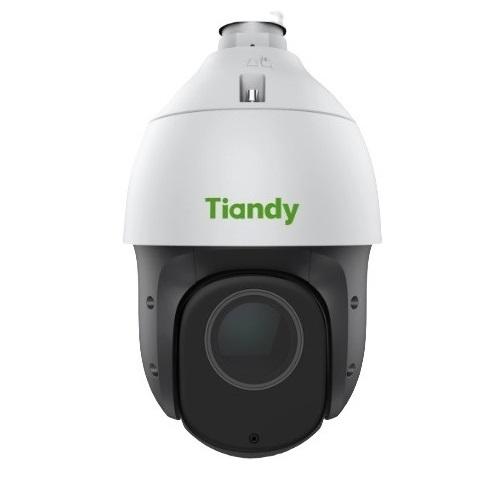

Camera IP Speed Dome hồng ngoại 2.0 Megapixel TIANDY TC-H324S(25X/I/E/V/3.0)
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: S+265/H.265/H.264/M-JPEG.
- Ống kính: 4.8mm~120mm/F1.5~3.8.
- Độ nhạy sáng: Color: 0.001lux@ (F1.5, ACG ON), BW: 0lux with IR.
- Tầm quan sát hồng ngoại: 150m.
- Zoom quang: 25x.
- Zoom số: 16x.
- Hỗ trợ thẻ nhớ tối đa 256GB.
- Hỗ trợ 1 cổng vào và 1 cổng ra audio.
- Hỗ trợ 2 cổng vào và 1 cổng ra alarm.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC, HLC.
- Chức năng chống ngược sáng thực WDR 140dB.
- Tính năng Auto Tracking, chống sét, chống sốc điện.
- Các tính năng: Chụp ảnh khuôn mặt, phân biệt phương tiện và người.
- Chuẩn ONVIF quốc tế, hỗ trợ tên miền miễn phí.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: DC 12V, PoE.
- Vỏ kim loại.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.001lux@ (F1.5, ACG ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 140dB |
| Optical Zoom | 25 |
| Digital Zoom | 16 |
| Lens | |
| Focal Length | 4.8mm~120mm |
| Zoom Speed | <4s |
| Angle of View | Horizontal: 58.5° (w)~2.8° (t) Vertical: 33.2° (w)~1.5° (t) |
| Aperture Range | F1.5~F3.8 |
| Pan&Tilt | |
| Pan Range | 360° |
| Pan Speed | Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s |
| Tilt Range | -16°~90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s |
| 3D Position | Yes |
| Presets | 500 |
| Preset Accuracy | ±0.4° |
| Scan | 8 |
| Cruise | 16, up to 32 presets per cruise |
| Pattern | 8, each with 600s memory or 1000 orders |
| Power-off Memory | Yes |
| Illuminator | |
| IR LEDs | 6 |
| IR Range | Up to 150m |
| IR Irradiation Angle | Adjustable by Zoom |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K～48Kbps |
| Image | |
| Max. Resolution | 2.0MP (1920×1080) |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) |
| NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | PAL: 25fps (352×288) NTSC: 30fps (352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Harsh Voice Alarm, Motion Detection, Mask Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd, Demographics(People Counting), On Duty Detection, Video Abnormal, Audio Abnormal, Face Capture |
| Face Detection and Analytics | |
| Operating Mode | Face capture, intelligent monitoring optional, default intelligent monitoring |
| Face Detection Performance | Detects up to 16 faces at the same scene |
| Face Exposure Brightness | Default 35, 1~100 brightness optional |
| Min. Face Pixel | Default 80, 19~1920 optional |
| Precautionary Alert | Three level |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, MULTICAST, RTMP,SNMP, RTP |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, CGI, P2P |
| ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio | 1/1 |
| Alarm | 1/1 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 256 GB |
| General | |
| Web Client Language | 15 languages Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions | -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH |
| Power Supply | DC12V±10%/POE |
| Power Consumption | 10.7W(IR OFF), 20.6W(IR ON) |
| Protection | IP66, IK10 Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Heater | Yes |
| Dimensions | Φ161x276mm(Φ6.34×10.87inch) |
| Weight | 2.9kg(6.39lb) |
- Bảo hành: 24 tháng.
