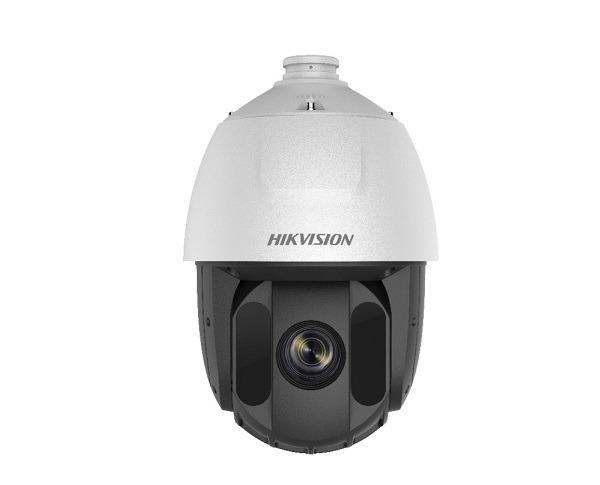

Camera IP Speed Dome hồng ngoại 4.0 Megapixel HIKVISION DS-2DE5432IW-AE(S5)
- DS-2DE5432IW-AE(S5) là dòng camera IP Hikvision Speed Dome với độ phân giải 4.0 megapixel.
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải: 4.0 Megapixel.
- Độ nhạy sáng: 0 Lux with IR; color: 0.005Lux @ (F1.2，AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON).
- Ống kính: 4.8 mm to 153 mm.
- Zoom quang: 32x.
- Tầm quan sát hồng ngoại: 150 mét.
- Hỗ trợ 2 cổng vào và 1 cổng ra báo hiệu.
- Hỗ trợ 1 cổng vào và 1 cổng ra audio.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC.
- Xoay ngang: 360° không giới hạn.
- Xoay dọc: -15°~ 90° (Auto Flip).
- Chức năng chống sương mù Defog.
- Chức năng chống ngược sáng WDR 120dB.
- Chức năng giảm nhiễu 3D-DNR.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 24 VAC; Hi-PoE.
- Kích thước: Φ 208 mm × 345 mm.
- Trọng lượng: 3.3kg.
Đặc tính kỹ thuật
| Model | DS-2DE5432IW-AE (S5) |
| Camera Module | |
| Image Sensor | 1/2.8-inch progressive scan CMOS |
| Min. Illumination | 0 Lux with IR;color: 0.005Lux @ (F1.2，AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON) |
| Shutter Speed | 1/1s-1/30000s |
| Slow Shutter | Yes |
| Focus | semi-auto;manual;auto |
| Day & Night | ICR |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| BLC | Yes |
| WDR | 120 dB WDR |
| HLC | Yes |
| 3D DNR | Yes |
| Defog | Yes |
| EIS | Yes |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Image Settings | Saturation; Brightness; Contrast; Sharpness |
| White Balance | MWB; Indoor; Outdoor; fluorescent lamp; sodium lamp; ATW; auto; Locked WB; Locked WB |
| Digital Zoom | 16x |
| Optical Zoom | 32x |
| Privacy Mask | Up to 24 masks; mosaic mask; mask color configurable; polygon region |
| SNR | ＞52dB |
| Lens | |
| Focal Length | 4.8 mm to 153 mm, 32× Optical |
| Zoom Speed | Approx.4.2s |
| FOV | Horizontal field of view: 54.3° to 2° (wide-tele), Vertical field of view: 31.8° to 1.1° (wide-tele), Diagonal field of view: 61.1° to 2.3° (wide-tele) |
| Aperture | F1.2 |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90°(auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-Off Memory | Yes |
| Park Action | preset; patrol scan; pattern scan; auto scan; tilt scan; random scan; frame scan; panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | preset; auto scan; random scan; frame scan; patrol scan; pattern scan; panorama scan; tilt scan; dome reboot; dome adjust; aux output |
| Video | |
| Max. Resolution | 2560 × 1440 |
| Stream Type | main stream; sub-stream; third stream |
| Main Stream | 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265; H.264; MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | baseline profile;main profile;high profile |
| H.265 Type | main profile |
| H.264+ | Yes |
| H.265+ | Yes |
| SVC | Yes |
| ROI | Dynamic face tracking; fixed region; main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio | |
| Audio Compression | G.711alaw; G.711ulaw; G.722.1; G.726; MP2L2; PCM |
| Audio Bit Rate | MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; 192kbps |
| Audio Sampling Rate | MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | Yes |
| Smart Features | |
| Face Capture | Yes |
| Basic Event | audio exception; motion detection; alarm input; alarm output; video tampering alarm; exception |
| Smart Event | intrusion detection; line crossing detection; region entrance detection; region exiting detection; unattended baggage detection; object removal detection |
| Smart Tracking | manual tracking;event tracking;auto-tracking |
| Smart Record | ANR; Dual-VCA |
| Alarm Linkage | smart tracking; preset; patrol scan;pattern scan; memory card video recording; alarm output; sending email; notify surveillance center; upload to FTP |
| Network | |
| Network Storage | NAS (NFS, SMB/ CIFS);ANR |
| Protocols | IPv4/IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTCP; RTP; TCP/IP; UDP; IGMP; ICMP; DHCP; PPPoE; Bonjour |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Smooth Streaming | yes |
| Security Measures | Authenticated username and password; MAC address binding; HTTPS encryption; 802.1X authenticated access; IP address filter |
| Client | iVMS-4200 |
| Web Browser | IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ |
| Interface | |
| Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-Board Storage | support microSD/microSDHC/microSDXC cards, up to 256 GB; support microSD/microSDHC/microSDXC cards;up to 256 GB |
| Alarm Input | 2 alarm inputs |
| Alarm Output | 1 alarm output |
| Audio Input | 1 audio input |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| Supplement Light | |
| IR Distance | 150 m |
| General | |
| Power | 24 VAC; Hi-PoE |
| Power Consumption And | Max. 30 W, including max. 10 W for IR |
| Current | |
| Operating Conditions | -30℃ to 65℃; |
| Reset | yes |
| Material | ADC 12, PC+10% GF |
| Dimensions | Φ 208 mm × 345 mm (Φ 8.19' × 13.58') |
| Weight | Approx. 3.3 kg (7.28 lb) |
| Protection | IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
- Bảo hành: 24 tháng.
