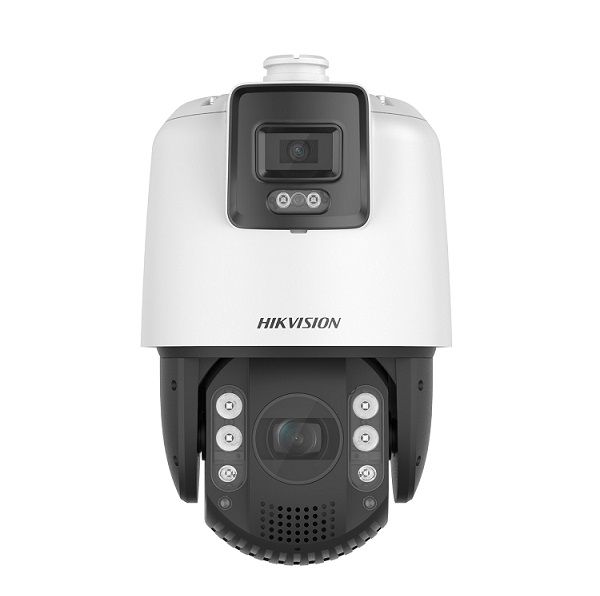

Camera IP Speed Dome hồng ngoại 4.0 Megapixel HIKVISION DS-2SE7C432MW-AEB(14F1)(P3)
- Camera IP Speed Dome TandemVu 7-inch 4MP 25X Colorful, có cảnh báo bằng còi và đèn.
Camera ColorVu cố định
- Cảm biến hình ảnh: 1/1.8 inch Progressive Scan CMOS
- Ống kính: 4mm
- Độ phân giải: 2560× 1440@30fps
- Độ nhạy sáng: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
- Đèn trợ sáng White Light: 30 mét
Camera PTZ
- Cảm biến hình ảnh: 1/1.8 inch progressive scan CMOS.
- Độ phân giải: 2560× 1440@30fps
- Chuẩn nén: H.265+/H.265
- Độ nhạy sáng: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Ống kính: 5.9 ~ 188.8 mm
- Zoom quang: 32x
- Hỗ trợ các chức năng: 120dB WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
- Tầm quan sát hồng ngoại: 200 mét
- Cổng Alarm: 2 in / 1 out
- Cổng Audio: 1 in / 1 out
- Hỗ trợ đèn & còi báo động
- Nguồn điện: 24 VAC & Hi-PoE
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Model | DS-2SE7C432MW-AEB(14F1)(P3) |
| Camera | |
| Image Sensor | [Bullet channel]: 1/1.8' Progressive Scan CMOS [PTZ channel]: 1/1.8' progressive scan CMOS |
| Min. Illumination | [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Focus | Auto, semi-auto, manual |
| Day&Night | ICR |
| Day/Night Switch | day, night, auto, scheduled-switch |
| BLC | Yes |
| WDR | 120 dB WDR |
| HLC | Yes |
| 3D DNR | Yes |
| Defog | Yes |
| EIS | Yes |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Image Settings | saturation, brightness, contrast, sharpness |
| Image Parameters Switch | [Bullet channel]: yes; [PTZ channel]: yes |
| White Balance | auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB |
| Zoom | [PTZ channel] 25 × optical, 16 × digital |
| Privacy Mask | polygon region, mosaic mask , mask color configurable, [Bullet channel] 8 masks, [PTZ channel] 24 masks |
| SNR | ＞52dB |
| General Function | mirror, password protection, watermark, IP address filter |
| Lens | |
| Focal Length | [Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical |
| FOV | [Bullet channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele |
| Aperture | [Bullet channel]: F1.0; [PTZ channel]: F1.5 |
| Zoom Speed | [PTZ channel]: approx. 5.6 s |
| Illuminator | |
| Supplement Light Type | [Bullet channel] White Light, [PTZ channel] IR |
| Smart Supplement Light | Yes |
| Supplement Light Range | [Bullet channel]: up to 30 m, [PTZ channel]: up to 200 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt speed | configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan, patrol scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Exception Detection | IP address conflict, HDD full, illegal login, HDD error, network disconnected |
| Video | |
| Max. Resolution | [Bullet channel]: 2560 × 1440; [PTZ channel]: 2560 × 1440 |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| Stream Type | main stream, sub-stream, third stream |
| SVC | Yes |
| Region of Interest (ROI) | Main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio | |
| Audio Sampling Rate | 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM |
| Network | |
| Network Storage | NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
| User/Host | 32 |
| API | Open-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP |
| Simultaneous Live View | Up to 20 channels |
| Interface | |
| Alarm | 2 inputs, 1 output |
| Audio | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% 1 audio output, line level, impedance: 600 Ω |
| On-board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| Smart Features | |
| Face Capture | [Bullet channel] no [PTZ channel] yes |
| Basic Event | [PTZ channel] motion detection, video tampering alarm [PTZ channel & bullet channel] alarm input, alarm output, exception |
| Smart Event | [Bullet channel] intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection [PTZ channel] intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection |
| Auto Tracking | [PTZ channel] yes |
| Smart Linkage | Manual tracking, auto tracking, tracking takeover, track in turn |
| Smart Record | ANR, Dual-VCA |
| Alarm Linkage | [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Warning and Alert | white light and audible warning |
| General | |
| Power | 24 VAC, Hi-PoE |
| Power Consumption and Current | Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light |
| Startup and Operating Conditions | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Demist | Demist by heating the glass |
| Material | ADC12 |
| Dimensions | Ø 220 mm × 382.1 mm |
| Weight | Approx. 6kg |
| Protection | IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
- Bảo hành: 24 tháng.
