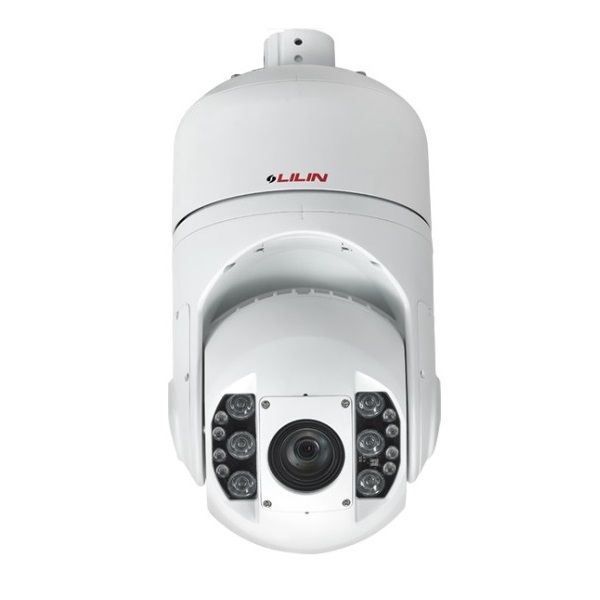

Camera IP Speed Dome hồng ngoại 5.0 Megapixel LILIN S7R5554EX25
- Cảm biến hình ảnh: 1/2.8 inch CMOS image sensor.
- Độ phân giải: 5.0 megapixel.
- Ống kính: 5.3 – 132.5mm.
- Zoom quang: 25x.
- Zoom digital: 8x.
- Tầm quan sát hồng ngoại: 200 mét.
- Hỗ trợ các tính năng camera: Giảm nhiễu kỹ thuật số 3D-NR, AGC, HDR (140dB).
- Hỗ trợ IVS/AI, Defog.
- Phát hiện chuyển động, chống phá hoại, cảnh báo...
- Hỗ trợ âm thanh 2 chiều.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Video Performance | |
| Min. Illumination | 0.07 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICROFF Color mode) 0.01 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICRON B/W mode) 0.01 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICROFF Color mode) 0.001 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICRON B/W mode) 0 Lux with IR LED ON |
| Lens / Night vision (infrared LED) | |
| Lens zoom ratio | 25X Optical |
| Focal Length | 5.3 (WIDE) – 132.5 (TELE) mm |
| Minimum Aperture Ratio | F1.6(Wide) – F4.3(Tele) |
| Iris Range | F1.6 – 32 , Close |
| Iris Control | DC IRIS, ALC ( Adjustable Output Target Level ) / Manual |
| Minimum Object Distance | 50 cm (WIDE end), 1.5M (TELE end) |
| Angle of View | 56.7°(W) – 3.2°(T) (H) 42.9°(W) – 2.6°(T) (V) 70.2°(W) – 2.0° (T) (D) |
| Zoom Speed | 0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Tele to Wide ) in Manual Mode ] |
| Focus Speed | 0 – 7 Selectable |
| Focus | Auto ( Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| Peak Wavelength | 850nm |
| Beam Spread | Automatically adjusted, Depending on the zoom ratio |
| Radiant Distance | 200M |
| Sensor | |
| Pick Up Element | 1/2.8 inch CMOS image sensor |
| Effective Pixels | 2616 (H) × 1964 (V) = 5,137,824 (Pixels) |
| Certifications | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| IP Rating | IP66 |
| Vandal Resistant Rating | IK10 (Housing) |
| UL | Yes UL 62368-1 |
| Pan & Tilt | |
| Control Function | Pan and Tilt / Zoom and Focus / Iris and ICR / 256 Preset Position / Home Position |
| Auto Mode | OFF / SCAN(16) / SEQ(256) / TOUR(16) / PATROL(16) / Auto TRACKING |
| Schedule Setting | OFF / SCAN (4)/ SEQ(256) / TOUR(4) / PATROL(4) / Preset Position(256)(via web interface) |
| Panning range | 360° Endless |
| Panning mode | Manual , Auto , Manual Position , Sequential Position |
| Panning speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 300°/s, Alarm Trigger Speed 300°/s |
| Tilting range | -30° – +210° |
| Tilting mode | Manual, Auto , Manual Position, Sequential Position |
| Tilting speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 300°/s, Alarm Trigger Speed 300°/s |
| PC Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above |
| Input / Output | |
| Audio Input / Output | one audio input / one audio output Terminal block type (microphone not built- in) |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, BNC connector |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / Output | Digital 4 Input (TTL 5Vdc) , 2 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW / 300mA,450mW) , Terminal block type |
| Video Streaming | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable onthe-fly; VBR / CBR / GOP supported, Fixed bitrate, |
| Network Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| Users | 10 simultaneous users |
| Multi IP address | Yes |
| Video Resolutions (H x V) | |
| Resolution | 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2592 × 1944 50Hz: 25 FPS @ 2592 × 1944 HDR mode: 60Hz: 30 FPS @ 2592 × 1944 50Hz: 25 FPS @ 2592 × 1944 |
| Video Functions | |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Exposure Mode | AUTO / SHUT.P / IRIS.P |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Contro | 60 dB Variable Gain |
| S/N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / ON( 1 – 32) |
| High Dynamic Range | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | OFF / ON ( Up to 16 area) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Defog, Digital Zoom(x8) |
| Integration | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card Recording | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| IVS Basic 1.0 | Motion / Tamper |
| Event Triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Control Interface | RS-485, Half-Duplex, support MLP2, Pelco D/P protocols |
| Languages | English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese |
| Network | |
| Ethernet | 10/100/1000 Mbps Base-T, RJ-45 |
| ePTZ & Digital Zoom | - / Yes (X8) |
| Web PTZ control | Pan, tilt, zoom in / out, absolute position, and video-click-nmove |
| OSD | Position configurable text overlay for date, time, camera ID, event status/ Current PTZ Position/ Preset Name, Auto-Pan |
| CPU, Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 2GB LPDDR4X, 8GB e.MMC memory |
| OS | Embedded Linux 4.9.84 |
| Network Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Network Storage | NAS (Support SAMBA/CIFS) |
| User accounts | 10 user accounts available |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Power and Environment | |
| Starting Temperature | - 40°C – + 50°C (-40°F – 122°F) |
| Operating Temperature | - 40°C – + 50°C (-40°F – 122°F) |
| Storage Temperature | - 20°C – + 60°C ( -4°F – 160°F) |
| Humidity | 0% – 90% |
| Power Supply | AC24V ±10% / DC24V / PoE++(IEEE802.3bt) |
| Power Consumption | AC24V, 51.3W (Heater OFF) AC24V, 76.5W (Heater ON) PoE++, 47.5W (Heater OFF) PoE++, 68.3W (Heater ON) |
| Mechanical | |
| Dimension | 395 (H) × 198 (D) mm |
| Weight | 6000 g |
| Casing Material | Aluminum alloy |
| Window | Ø55 Heat Resistant Glass & Rain repellent glass(Optional) |
- Bảo hành: 36 tháng.
