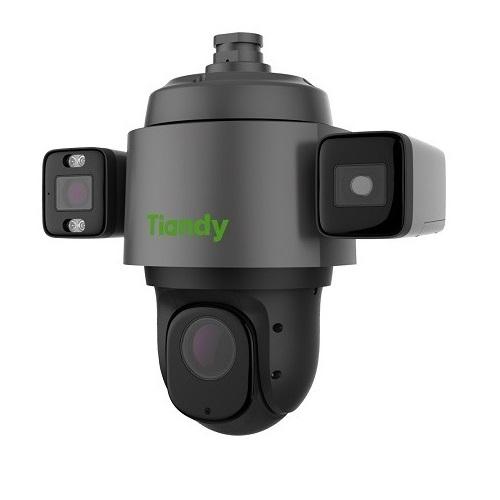

Camera IP Speed Dome hồng ngoại 5.0 Megapixel TIANDY TC-A35555(0/A/2.8-12mm/9-54mm)
- Cảm biến hình ảnh:
+ PTZ-bullet: 1/1.8 inch CMOS;
+ Speed dome: 1/1.8 inch CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén hình ảnh: S+265/H.265/H.264/M-JPEG.
- Ống kính: PTZ-bullet: 2.8~12mm; Speed Dome: 9~54mm.
- Độ nhạy sáng: Color:
+ PTZ-bullet: Color: 0.0008Lux@ (F1.36, AGC ON), BW: 0lux with IR;
+ Speed Dome: Color: 0.0008Lux@ (F1.35, AGC ON), BW: 0lux with IR.
- Tầm quan sát hồng ngoại: 100m.
- Zoom quang: PTZ-bullet: 4×; Speed Dome: 6×.
- Zoom số: PTZ-bullet: 16×; Speed Dome: 16×.
- Tích hợp 2 loa (Speaker), 6 đèn led hồng ngoại, 4 đèn led trắng.
- Hỗ trợ khe cắm thẻ nhớ tối đa 512GB.
- Hỗ trợ 1 cổng vào và 1 cổng ra audio.
- Hỗ trợ 3 cổng vào và 2 cổng ra alarm.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng bù ngược sáng BLC, HLC.
- Tính năng Auto-tracking, tự động theo dõi đối tượng.
- Chuẩn ONVIF quốc tế, hỗ trợ tên miền miễn phí.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: AC24V, DC24V.
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | PTZ-bullet: 1/1.8 inch CMOS |
| Speed dome: 1/1.8 inchCMOS | |
| Signal System | PAL/NTSC |
| Min. Illumination | PTZ-bullet: Color: 0.0008Lux@ (F1.36, AGC ON), BW: 0lux with IR Speed Dome: Color: 0.0008Lux@ (F1.35, AGC ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | PTZ-bullet: 120dB; Speed Dome: 140dB |
| Optical Zoom | PTZ-bullet: 4×; Speed Dome: 6× |
| Digital Zoom | PTZ-bullet: 16×; Speed Dome: 16× |
| Lens | |
| Focal Length | PTZ-bullet: 2.8~12mm; Speed Dome: 9~54mm |
| Zoom Speed | <3s |
| Angle of View | PTZ-bullet: Horizontal: 84.8° (w)~49° (t), vertical: 49.3° (w)~27.6° (t) Speed Dome: Horizontal: 42.3° (w)~32.1° (t), vertical: 24.3° (w)~18.4° (t) |
| Aperture Range | PTZ-bullet: F1.36~F2.0; Speed Dome: F1.35~F1.55 |
| Pan&Tilt | |
| Pan Range | PTZ-bullet: 260°; Speed Dome: 360° |
| Pan Speed | PTZ-bullet: Pan Manual Speed: 0.1°~100°/s, Pan Preset Speed: 100°/s Speed Dome: Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 300°/s |
| Tilt Range | PTZ-bullet: 0°~30°; Speed Dome: -3°~90° (Auto flip) |
| Tilt Speed | PTZ-bullet: Tilt Manual Speed: 0.1°~15°/s, Tilt Preset Speed: 15°/s Speed Dome: Tilt Manual Speed: 0.1°~100°/s, Tilt Preset Speed: 150°/s |
| 3D Position | Yes |
| Presets | PTZ-bullet: 256; Speed Dome: 500 |
| Preset Accuracy | ±0.5° |
| Scan | Speed Dome: 8 |
| Cruise | Speed Dome: 16, up to 32 presets per cruise |
| Pattern | Speed Dome: 8, each with 600s memory or 1000 orders |
| Power-off Memory | Yes |
| RS-485 Protocols | DOME_PELCO_D，DOME_PELCO_P，DOME_PLUS |
| Illuminator | |
| IR LEDs | 6 |
| IR Range | Up to 100m |
| IR Irradiation Angle | Adjustable by Zoom |
| White LEDs | 4, up to 30m |
| Blue&Red Flash LEDs | Yes |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~8Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K～48Kbps |
| Image | |
| Max. Resolution | 5.0MP (3072×1728) |
| Main Stream | PAL: 20fps (3072×1728), 25fps (2560×1440, 2304×1296, 1920x1080, 1280x720, 640x480, 704x576) |
| NTSC: 20fps (3072×1728), 30fps (2560×1440, 2304×1296, 1920x1080, 1280x720, 640x480, 704x480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×576, 704×288, 640×360, 352×288) | |
| Third Stream | PAL: 25fps (704×576, 704×288, 352×288) |
| NTSC: 30fps (704×576, 704×288, 352×288) | |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, 128×128, adaptable size, letters such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Heatmap, Video Abnormal, Crowd, Audio Abnormal, Demographics(People Counting), On Duty Detection, Safety Helmet Detection, Auto tracking, Face Capture |
| Video Structure Analytics | Face metadata: age, gender, glasses, beards, masks, hat Human body metadata: gender, masks, hair, bag, tops, tops color, bottoms, bottoms color Vehicle metadata: type, color, brand Non-vehicle metadata: type |
| Early Warning(EW) | Yes |
| Auto-Tracking | Yes |
| Face Detection and Analytics | |
| Face Detection Performance | Detects up to 32 faces at the same scene |
| Face Exposure Brightness | Default 35, 1~100 brightness optional |
| Min. Face Pixel | Default 60, 26~2560 optional |
| Network | |
| Protocols | 802.1X/TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv4/IPv6/SNMP/SMTP/RTMP |
| System Compatibility | ONVIF (PROFILE S/T/G), SDK, CGI, P2P |
| ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | web6 |
| Interface | |
| Communication Interface | RJ45 100M/1000M self adaptive Ethernet ports |
| Audio | 2 Mic, 1/1 |
| Alarm | 3/2 |
| Speaker | 2 |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| RS-485 | Yes |
| Electronic Compass | Yes |
| GPS/BDS | Yes |
| General | |
| Web Client Language | 15 languages Simplified Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions | -40°C~70°C, 0-95%RH |
| Power Supply | AC24V±15%, DC24V±10% |
| Power Consumption | Max: 57W |
| Protection | IP66, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Heater | Yes |
| Dimensions | Φ191 × 344 × 350 mm |
| Weight | 7.2kg |
- Bảo hành: 24 tháng.
