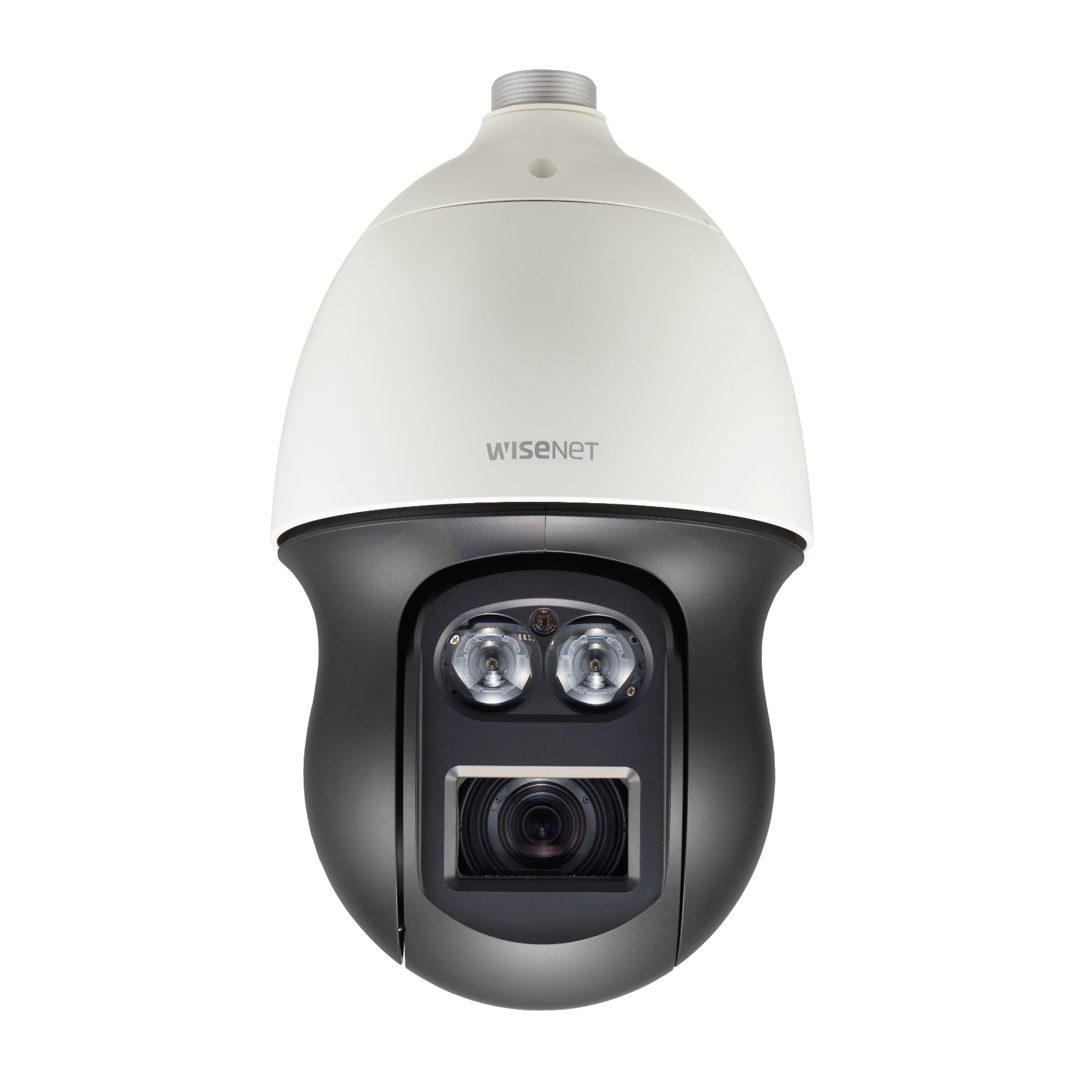

Camera IP Speed Dome hồng ngoại 8.0 Megapixel SAMSUNG PNP-9200RHP
- Cảm biến hình ảnh: 1/2.5 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG, Wise Stream.
- Độ phân giải camera ip: 8.0 Megapixel.
- Ống kính: 4.8 ~ 96mm.
- Zoom quang: 20x.
- Zoom số: 16x.
- Tầm quan sát hồng ngoại: 200 mét.
- Chức năng quan sát ngày và đêm (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng phân tích Video thông minh.
- Chức năng Auto tracking.
- Đa ngôn ngữ.
- Tiêu chuẩn chống nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện cung cấp: 24VAC.
- Kích thước: Ø236.9 x 407.7mm.
- Trọng lượng: 7.1kg.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.5 inch 8M CMOS |
| Total Pixels | 3,864(H) x 2,202(V), 8.51Megapixels/ 3,840(H) x 2,160(V), 8.00Megapixels |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.3Lux/ F1.8 (1/30sec, F1.8, 50IRE), 0.005Lux (2sec, F1.8, 50IRE) |
| 0.1Lux/ F1.8 (1/30sec, F1.8, 30IRE), 0.0005Lux (2sec, F1.8, 30IRE) | |
| B/W: 0 Lux (IR LED on) | |
| S / N Ratio | 50dB |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.8 ~ 96mm (Optical 20x) |
| Max. Aperture Ratio | F1.6 (Wide) / F3.63 (Tele) |
| Angular Field of View | H: 56.8º (Wide) ~ 2.8º (Tele) V: 46.3º (Wide) ~ 2.24º (Tele) |
| Min. Object Distance | Wide: 1.5m (4.92ft), Tele: 2m (6.56ft) |
| Focus Control | Auto/ Manual/ One push |
| Mount Type | DC auto iris/ Board-in type |
| Pan/ Tilt | |
| Pan/ Tilt/ Rotate Range | 360º Endless / Preset: 400º/sec, Manual : 0.024˚/sec ~ 250˚/sec |
| Pan/ Tilt Speed | 190º (-5º ~18º ) / Preset: 300º/sec, Manual : 0.024˚/sec ~ 250˚/sec |
| Sequence | Preset (255ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule |
| Azimuth | Yes (E/ W/ S/ N/ NE/ NW/ SE/ SW) |
| Auto Tracking | Off/ On |
| Operational | |
| Viewable Length | 200m |
| Camera Title | Off/ On (Displayed up to 60 characters) |
| - W/W: English/ Numeric/ Special characters | |
| - Korea: English/ Numeric/ Special/ Korean characters | |
| - China: English/ Numeric/ Special/ Chinese characters | |
| - Common: Multi-line (Max. 5), Color (Grey/ Green/ Red/ Blue/ Black/ White), Transparency, Auto scale by resolution | |
| Day & Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | Off / BLC/ WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSDR (Samsung Super Dynamic Range) (Off / On) |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off/ On |
| Defog | Off/ Auto / Manual |
| Motion Detection | Off/ On (4ea rectangular zones) |
| Privacy Masking | Off/ On (32 zones of rectangle zone) with zoom threshold mosaic option |
| Gain Control | Off/ Low/ Middle/ High |
| White Balance | ATW/ AWC/ Manual/ Indoor/ Outdoor |
| Electronic Shutter Speed | Minimum/ Maximum/ Anti flicker (2 ~ 1/12,000sec) |
| Digital Zoom | 16x, area zoom funtion support digital zoom 2x |
| Flip/ Mirror | Off/ On |
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection |
| Alarm I/O | Input 4ea/ Output 2ea (Relay) |
| Remote Control Interface | RS-485/422 |
| RS-485 Protocol | Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detection, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (Alarm triggers), External output |
| Pixel Counter | Support (Plug-in viewer only) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.264 (MPEG-4 part 10 / AVC), MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Max. Frame rate | H.265/ H.264: 30fps at all resolutions, MJPEG: 15fps at all resolutions |
| Smart Codec | Yes |
| Video Quality Adjustment | H.264: Compression level, Target bitrate level control, MJPEG: Quality level control |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Audio In | Selectable (Mic in/ Line in), Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm |
| Audio I/O | Line out (3.5mm mono jack), Max output level: 1 Vrms |
| Audio Compression Format | G.711 u-law / G.726 selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Audio Communication | Bi-directional audio (2 way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 15 users at unicast mode |
| Storage | SD/SDHC/SDXC (128GB) - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected, memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only) |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), SVNP 1.2, Wisenet Open Platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,Croatian, Hungarian, Greek, Finnish, Norwegian |
Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Plug-in free Webviewer - Supported Browser: Google Chrome 47, MS Edge 20 Plug-in Webviewer - Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 Mac OS X only | |
| Central Management Software | SmartViewer |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| ELECTRICAL | |
| Input Voltage/ Current | 24VAC |
| Power Consumption | Max. 60W/90W (Heater off/on, IR on) |
| Color/ Material | Ivory, Black / Aluminum, Plastic |
| Dimensions | Ø236.9 x 407.7mm |
| Weight | 7.1kg |
- Bảo hành: 12 tháng.
