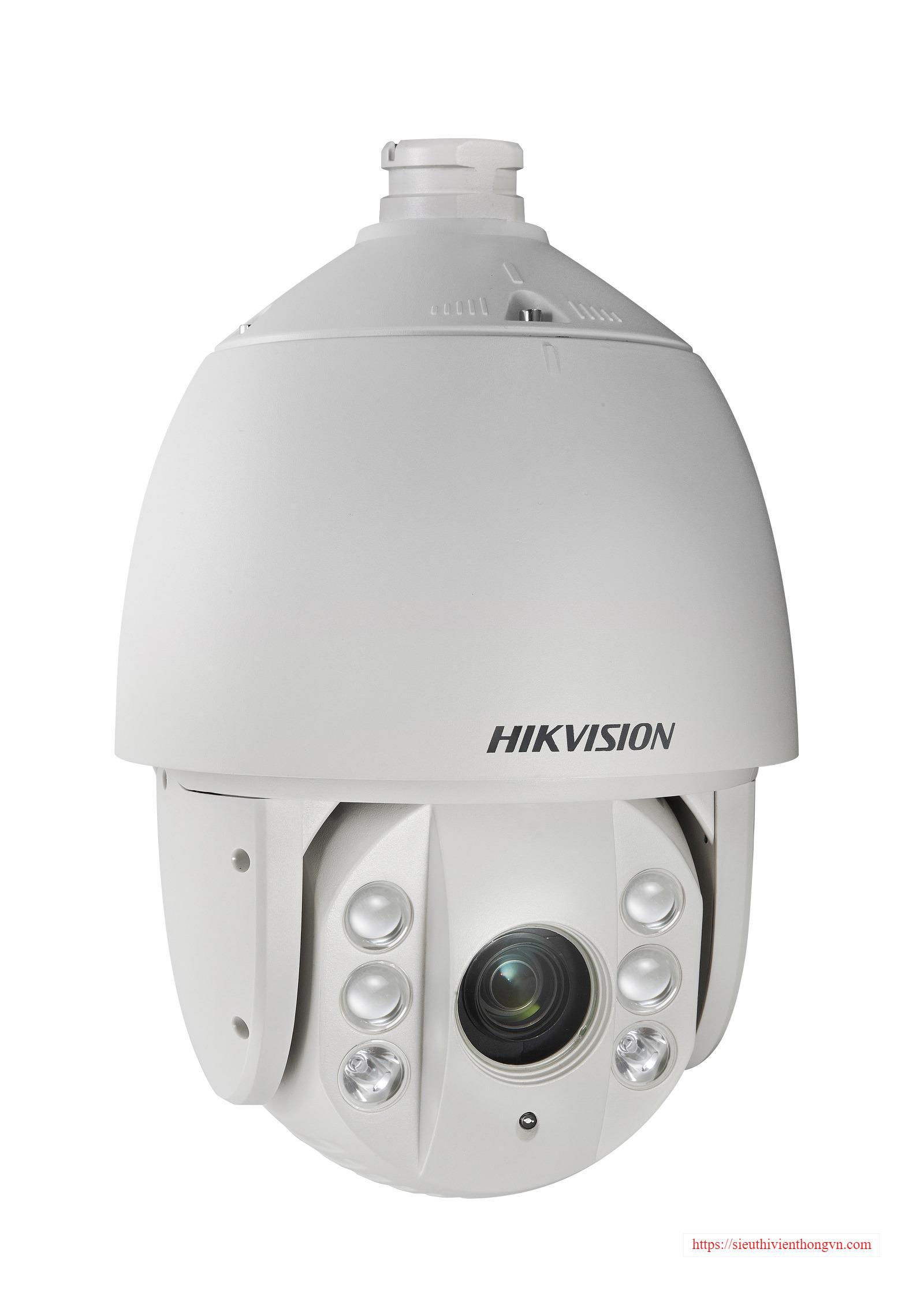

Camera Speed Dome HD-TVI hồng ngoại 2.0 Megapixel HIKVISION DS-2AE7232TI-A
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2 Megapixel (1920 × 1080).
- Zoom quang: 32x.
- Zoom số: 16x.
- Tầm quan sát hồng ngoại: 150 mét.
- Chức năng chống ngược sáng thực WDR 120dB.
- 3D intelligent positioning.
- Có thể chuyển qua lại các chế độ TVI/AHD/CVI/CVBS.
Đặc tính kỹ thuật
| Model | DS-2AE7232TI-A |
| Camera | |
| Image sensor | 1/2.8 inch progressive scan CMOS |
| Effective Pixels | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON); 0 lux with IR |
| Digital zoom | 16x |
| IR Distance | 150m |
| White Balance | Auto/Manual/Hauto/ATW/Indoor/Outdoor |
| AGC | Auto/Manual |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Privacy Mask | 8 programmable privacy masks |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 4.8 mm to 153 mm, 32x Optical |
| Aperture Range | F 1.6 to F 4.6 |
| Angle of View | 54.2° to 1.97° (wide-tele) |
| Pan/Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1° to 160°/s Pan preset speed: 160°/s |
| Tilt Range | -15° to 90° (auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 120°/s Tilt preset speed: 120°/s |
| Presets | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Power Supply | 24 VAC |
| Power Consumption | Max.40 W (IR:14 W) |
| Protection Level | IP66 |
| Mounting | Various mounting modes optional |
| Dimensions | Ø 220 × 353.4 mm |
| Weight | 4.5kg |
- Bảo hành: 24 tháng.
