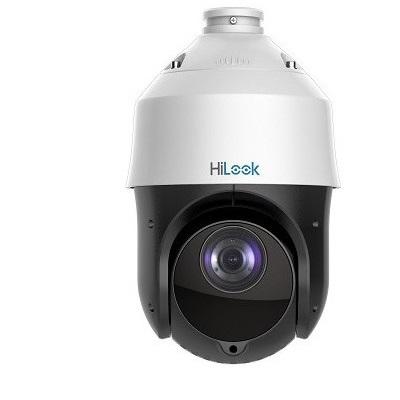

Camera Speed Dome HD-TVI hồng ngoại 2.0 Megapixel HILOOK PTZ-T4215I-D(D)
- Cảm biến hình ảnh: 1/2.8-inch Progressive Scan CMOS.
- Độ phân giải Camera: 2.0 Megapixel.
- Độ nhạy sáng cao:
+ Color: 0.005lux@(F1.6,AGC ON);
+ B/W: 0.001lux@(F1.6, AGC ON).
- Tầm quan sát hồng ngoại: 100 mét.
- Zoom quang: 15x ((5mm~75mm).
- Zoom số: 16x.
- Hỗ trợ chức năng chống ngược sáng WDR 120dB.
- Hỗ trợ chức năng giảm nhiễu số 3D DNR.
- Hỗ trợ 256 preset, 10 patrol (bao gồm tối đa 32 preset), 5 Pattern.
- Hỗ trợ cổng RS-485.
- Tiêu chuẩn chống bụi và nước: IP66 (Thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 12 VDC.
Đặc tính kỹ thuật
| Model | PTZ-T4215I-D(D) |
| Camera | |
| Image Sensor | 1/2.8-inch progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor |
| AGC | Auto/Manual |
| DNR | 3D DNR |
| WDR | DWDR |
| Shutter Time | PAL: 1/1s to 1/10,000s NTSC: 1/1s to 1/10,000s |
| Day & Night | IR cut filter |
| Privacy Mask | 8 programmable privacy masks |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 5 mm to 75 mm, 15× Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Horizontal Field of View | 53.8°to 4.0° (wide to tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 2.4 s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1°to 80°/s Pan preset speed: 80°/s |
| Tilt Range | 15° to 90°(auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Support |
| Scheduled Task | Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ Zero Calibration/ None |
| Infrared | |
| IR Distance | Up to 100 m |
| IR Intensity | Automatically adjusted depending on the zoom ratio |
| Input/Output | |
| Video Output | 1 turbo 1080p output/1 CVBS output, (NTSC or PAL composite, BNC) |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 12 VDC Max.20 W (IR: 7 W) |
| Working Temperature | -30°C to 65°C (-22°F to 149°F) |
| Working Humidity | 90% or less |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimension | Ø 165.9 mm × 290 mm |
| Weight (approx.) | 2Kg (4.41Ib.) |
- Bảo hành: 24 tháng.
