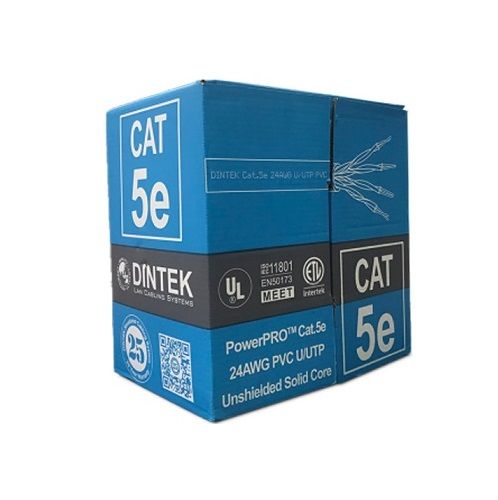

Cáp mạng Dintek CAT.5E UTP (1101-03029, 305 mét/thùng)
Part Number: 1101-03029
- Cáp mạng CAT.5E UTP Dintek 4-pairs, 24AWG, 305m/thùng.
- Khoảng cách truyền tín hiệu: 150 mét.
Application
- Horizontal and backbone cable
- 1000BASE-TX Gigabit Ethernet/1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet/10BASE-TX Ethernet
- 100 Mbps TP-PMD/100VG-AnyLAN
- Broadband Video/Voice/T1/ISDN
- 100Mhz Transmission up to length of 100Mtrs
Standards Conformance
- Performance - ANSI/TIA 568.2-D Cat.5e/ISO/IEC 11801
- Structural - EN 13501-6:2014 | IEC 61156-5 | EN 50288-3-1
- PoE capability - IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)
- Environmental - Conforms to RoHS and REACH Directives
- Flame testing - EN 60332-1-2
Independent Certification
- ETL Certification according to ANSI/TIA-568.2-D Cat.5e
- UL Cable Fire Rating - CM as per UL 444
Thông số kỹ thuật
| Construction | |
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 24AWG |
| Strand Type | Solid Core |
| No. Of Pairs | 4P |
| Insulation | |
| Material | Polyethylene |
| Thickness | 0.182mm ± 0.01mm |
| Diameter | 0.863mm ± 0.1mm |
| Colors | Blue/White | Orange/White | Green/White | Brown/White |
| Pair Foil Wrap | None |
| Jacket | |
| Material | PVC |
| Thickness | 0.52 mm ± 0.02mm |
| Diameter | 5.1mm ± 0.1mm |
| Jacket Rating | CM |
| Foil Shield | None |
| Braided Shield | None |
| Physical Ranges | |
| Jacket | |
| Cold Bend Test | -20 ± 2°C x 4hrs no crack |
| Min. Bending Radius | Min. 4 x Cable Diameter |
| Max. Pulling Tension | 10Kg |
| Installation Temperature | 0°C to +50°C |
| Operating Temperature | -20°C to +60°C |
| Electrical | |
| Conductor Resistance | Max. 9.38 Ω/100m at 20°C |
| DC Resistance Unbalance | Max. 5% at 20°C |
| Pair-to-Ground Capacitance Unbalance | Max. 1600 pF/km at 1 kHz |
| Dielectric Strength of Insulation | DC 0.5 KV for 1 min |
| Insulation Resistance Test | Min. 1500 MΩ/Km at 20°C |
| Mutual Capacitance | Max. 5600 pF/100m at 1 kHz |
| Impedance 1 ~ 100Mhz | 100Ω ± 15% |
| Nominal Velocity Of Propagation | 66% |
Sản xuất tại Trung Quốc.
