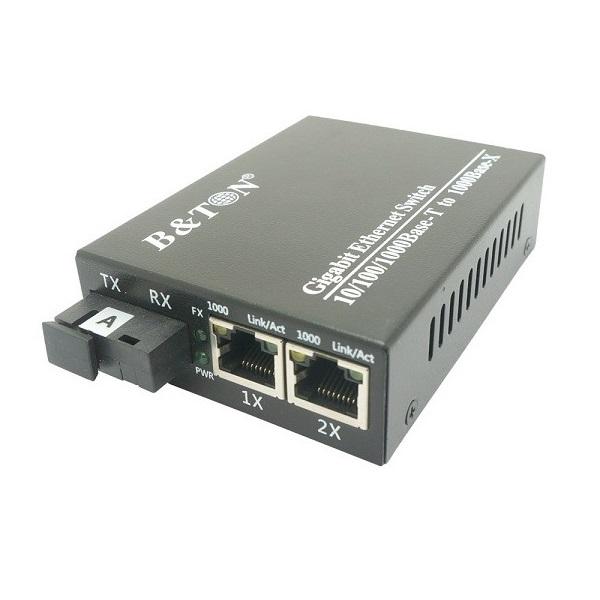

Chuyển đổi Quang-Điện Media Converter Unmanaged Fiber Switch BTON BT-912GS-20
- Chuyển đổi quang điện Media Converter 10/100/1000 Base-Tx đến 1000 Base-LX, Dual Fiber Single mode.
- Tích hợp 2 cổng Ethernet (RJ45) 10/100/1000Mps.
- Khoảng cách truyền: 20 km.
- Bước sóng quang hoạt động: 1310 nm.
- Ngõ giao tiếp quang: Connector SC.
- Ngõ giao tiếp mạng: RJ45.
- Tương thích các chuẩn: IEEE802.3u, 10/100 Base-TX, 100Base-FX.
- Các đèn LED chỉ thị nguồn, FX LINK/ ACT, 100, TP LINK/ ACT, FDX/ COL.
Features
- 10/100/1000Mbps, 1 fiber + 2 RJ45 ports, 20km, dual fiber, SC
- Supports 10/100/1000Base-T, 1000Base-X protocol.
- Flow control for full duplex and half duplex.
- Supports up to 10k byte JUMBO frame.
- Supports Fiber Port Trunking, Increasing Fiber Channel Bandwidth and Supply Fiber Channel Redundancy.
- Supports Ports Based VLANS and TAG Based VLANS.
- In conformity to safety code of FCC and CE MARK.
- Connector: Multi-UTP RJ-45 connector, one or two fiber connector
- Operation mode: full duplex mode or half duplex mode
- Power supply parameter: DC 5V 1A/2A
- Environmental temperature: 0-50℃
- Relative humidity: 5%-90%
- UTP cable: Cat5 UTP cable
- Transfer fiber: multimode(50/125, 62.5/125 or 100/140um); single mod( 8.3/125,8.7/125, 9/125 or 10/125um).
Specifications
| Model | BT-912GS-20 |
| Rate | 10/100/1000M |
| Protocol | Supported IEEE802.3 |
| Fiber type | Dual fiber |
| Optic mode | Single Mode |
| Ethernet interface | RJ-45 |
| Optic interface | SC/FC/ST |
| Optic wavelength | 850nm, 1310nm, 1550nm, 1310/1550nm, 1490/1550nm |
| BER | < 1/1000000000 |
| Power | 2.5W |
| Power supply | 220VAC/0.5A, 48VDC /0.5A, 5VDC/1A, 2A |
| Working temperature | 0~50ºC |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
