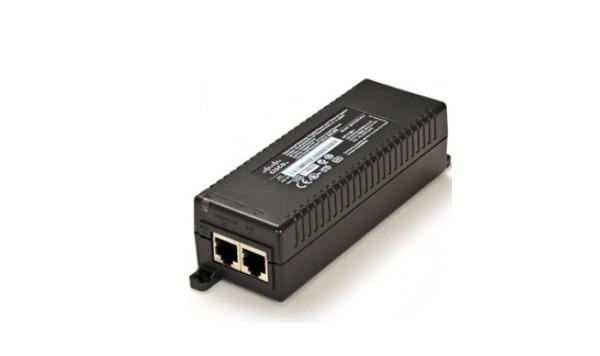

Cisco Small Business High Power Gigabit Power over Ethernet Injector SB-PWR-INJ2-AU
- Cisco Small Business High Power Gigabit Power over Ethernet Injector SB-PWR-INJ2-AU là thiết bị cấp nguồn qua Ethernet Cisco SB Gigabit Power over Ethernet Injector-30W.
Delivers PoE connectivity to 802.3at compliant endpoint devices and backward compatible with 802.3af.
- Compatible with Cisco Small Business Wireless Access Points.
- Compact design fits easily in WLAN Access Point installations.
- Gigabit LAN ports provide high-speed connectivity to the LAN and endpoint device.
- Adds PoE capability to a non-PoE Ethernet switch or router.
Specification
| Specifications | Description |
| Standards | IEEE 802.3at, IEEE 802.3af |
| Ports | Two 10/100/1000 Gigabit Ethernet ports: 1 data uplink, 1 power + data |
| Cabling type | Category 5e or better |
| LEDs | Channel Power (green) |
| Physical Interfaces | |
| Ethernet ports | Two 10/100/1000 Gigabit Ethernet ports: 1 LAN uplink, 1 PoE port |
| Input power | AC input voltage: 90-264 VAC AC input current: 0.8A @ 100-240 VAC AC frequency: 50-60 Hz |
| Output power | Output power voltage: 55 Vdc Output power wattage: 30 Watts (Guarantee) |
| RJ-45 pin assignment and polarity | Power: Pins 4/5(+), 7/8(-) |
| Physical Specifications | |
| Physical dimensions (W x D x H) | 53 x 140 x 32.5 mm |
| Weight | 200 g |
