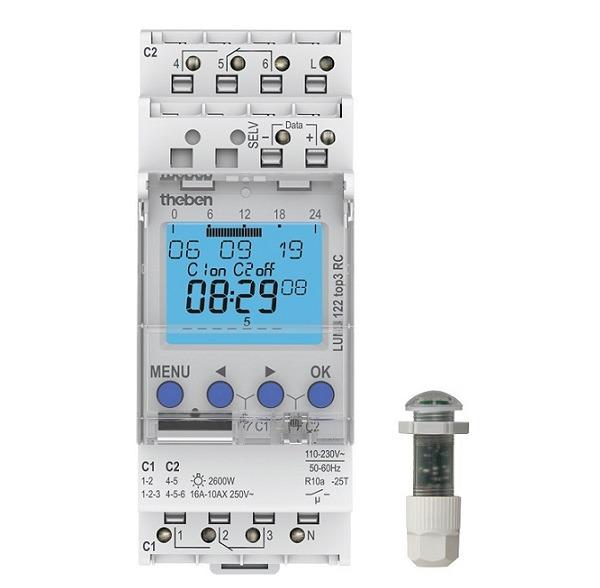

Công tắc cảm ứng ánh sáng THEBEN LUNA 122 top3 RC EL
Part Number: 1220230
- Twilight switch with integrated weekly timer
- External light sensor included in delivery
- 2 channels
- Time synchronisation option via connection of an external DCF or GPS antenna
- 3 special programs (small annual program)
- 84 memory locations
- Programming by app possible
- Safe transfer via optional Bluetooth Low Energy OBELISK top3
- Maximum manipulation security, time switch programs can only be transferred from the app to the device when the Bluetooth OBELISK top3 is plugged into the device
- Switching brightness digitally adjustable
Thông số kỹ thuật
| Operating voltage | 110 – 230 VAC |
| Frequency | 50 – 60 Hz |
| Number of channels | 2 |
| Number of memory locations | 84 |
| Stand-by consumption | ~0.8 W |
| Program | Weekly program |
| Additional program | Extra/Holiday program |
| Time basis | Quartz/DCF77 |
| Setting range brightness | 1 – 99000 lx |
| Preset brightness value | 15 lx |
| Switch-on delay | 0 – 59 min |
| Switch-off delay | 0 – 59 min |
| Type of contact | Two-way changeover contact |
| Width | 2 modules |
| Installation type | DIN rail |
| Type of connection | DuoFix spring terminals |
| Display | LCD-Display |
| Keyboards | 4 touch buttons |
| Shortest switching times | 1 min |
| Power reserve | 10 years at 20 °C |
| Switching capacity | 16 A at 250 V AC, cos φ = 1, 10 A at 250 V AC, cos φ = 0.6 |
| Incandescent/halogen lamp load | 2600 W |
| Halogen lamp load | 2600 W |
| Fluorescent lamp load (conventional) not corrected | 2600 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 130 µF |
| LED lamp < 2 W | 50 W |
| LED lamp 2-8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Lichtsensor | Flush-mounted light sensor |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -25°C ~ 55°C |
| Type of protection | IP20 |
| Protection class | II, Sensor III |
| Max. cable length to sensor | 100m |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
