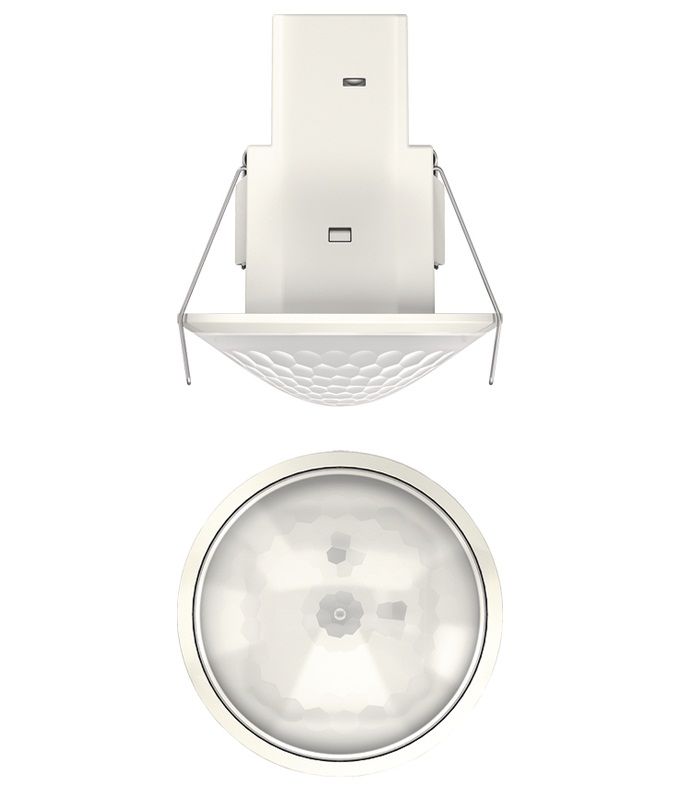

Công tắc cảm ứng chuyển động THEBEN theMova S360-101 DE WH
- Passive infra-red motion detector for ceiling installation.
- Circular detection area 360º, up to Ø 9 m (64 m²).
- Automatic motion and brightness-dependent control for lighting and HVAC.
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs.
- Channel A light: Relay, 230 V.
- Operation as fully automatic device.
- Brightness switching value configurable, teach-in function.
- Pulse function for staircase light time switch.
- Channel H, presence: Relay, floating e.g. for HVAC control.
- Time delay configurable.
- Detection sensitivity configurable.
- Test mode for checking function and detection area.
- Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.).
- One of these optional remote controls is required for changing the values and attitudes:
· Management remote control SendoPro.
· Installation remote control theSenda P.
- Optional user remote control: theSenda S.
Đặc tính kỹ thuật
| Model | theMova S360-101 DE WH |
| Operating voltage | 230 VAC |
| Frequency | 50Hz |
| Power consumption | ~0,5W |
| Light measurement | Mixed light measurement |
| Installation type | Ceiling installation |
| Setting range brightness | 30 – 3000 lx |
| Type of contact light | Relay 230 V/10 A µ-contact |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Installation height | 2 – 4 m |
| Light switch-off delay | 10s-60 min |
| Incandescent/ halogen lamp load | 2300W |
| Compact and flourescent lamps | 1150 VA (cos φ = 0,5) |
| Inrush current | max. 400 A/ 200 µs |
| LED lamp < 2 W | 25W |
| LED lamp 2-8 W | 70W |
| LED lamp > 8 W | 80W |
| Switching capacity presence | 50 W/50 VA |
| Type of connection | Spring terminals |
| Ambient temperature | -15ºC … +50ºC |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
