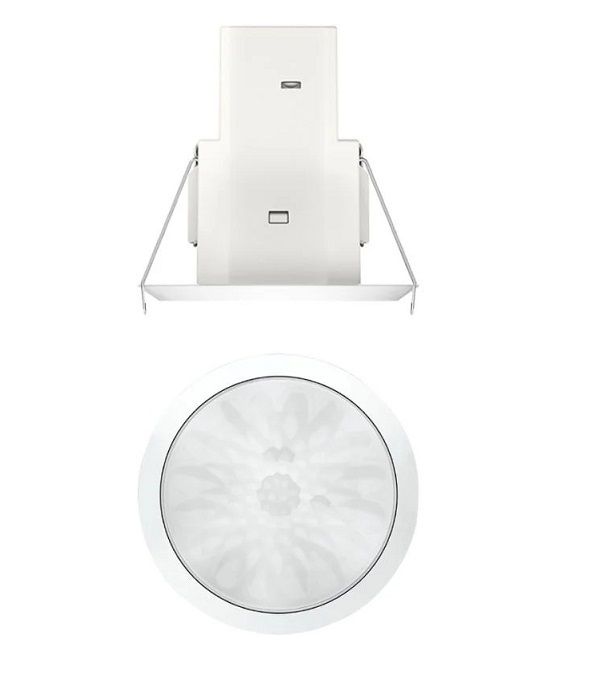

Công tắc cảm ứng chuyển động THEBEN theMova S360-101 FLAT DE WH
- Passive infra-red motion detector for ceiling installation in false ceilings
- Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3m
- 1 channel light (Relay, 230 V) and 1 channel presence (Relay, floating for HVAC control)
- Automatic motion and brightness-dependent control for lighting and HVAC
- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
- Operation as fully automatic device
- Brightness switching value configurable, teach-in function
- Pulse function for staircase light time switch
- Channel H, presence: relay, floating e.g. for HVAC control
- Time delay configurable
- Detection sensitivity configurable
- Test mode for checking function and detection area
- Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.)
- One of these optional remote controls is required for changing the values and attitudes:
- Management remote control SendoPro
- Installation remote control theSenda P
- Optional user remote control: theSenda S
Specifications
| Model | theMova S360-101 FLAT DE WH |
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Installation height | 2 – 4 m |
| Installation type | Ceiling installation |
| Colour | White |
| Switching output | Light | Presence |
| Power consumption | ~0.5 W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 30 – 3000 lx |
| Light switch-off delay | 10 s - 60 min |
| Type of contact light | Relay 230 V/10 A µ-contact |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Incandescent/halogen lamp load | 2300 W |
| Compact and flourescent lamps | 1150 VA (cos φ = 0,5) |
| Inrush current | max. 400 A / 200 µs |
| LED lamp < 2 W | 25 W |
| LED lamp 2-8 W | 250 W |
| LED lamp > 8 W | 250 W |
| Presence switch-off delay | 10 s - 120 min |
| Switching capacity presence | 50 W/50 VA |
| Type of connection | Spring terminals |
| Detection range | 50 m² (ø 8 m | 360°) |
| Detection angle | 360° |
| Ambient temperature | -15°C ... 50°C |
| Type of protection | IP 54 (when fitted) |
- Bảo hành: 12 tháng.
