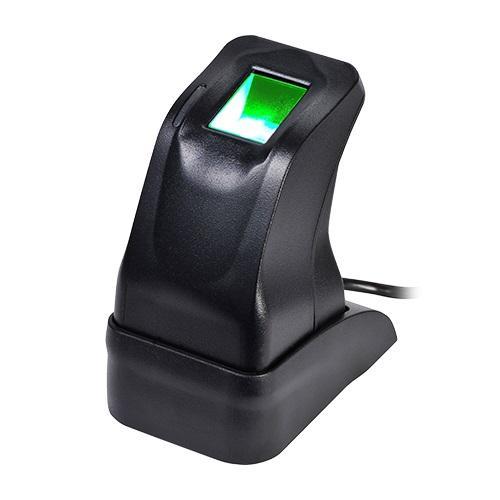

Đầu đọc vân tay ZKTeco ZK4500
-Đầu đọc vân tay + SDK kèm theo.
-Kết nối với máy tính qua cổng USB.
-Đèn xanh và tiếng beep báo đọc thành công.
-Hỗ trợ hệ điều hành: Win XP, Win7, Win8, 32/64 bit.
-Dùng để quản lý khách hàng, nhân viên.
Overview
ZK4500 is a stable and excellent fingerprint scanner. The device can
capture fingerprint image and upload to the PC by USB interface. It
supports Windows 2000/XP/2003/Vista/7(32/64bit) and Linux OS.
We provide developer with SDK. The developer can integrate the
hardware into their own system. This product is widely used in social
insurance, public security, time attendance, fingerprint encryption,
embedded system and other fields of application.
Features
-High-performance, maintenance-free optical fingerprint sensor.
-Readily accessible for any finger
-High quality industrial-class ABS plastic material with scratchproof texture surface treatment.
-Removable weighted stand
-High speed USB interface
-LED indicates the status of the device
-Driver CD included
-Available SDK for secondary development.
Đặc tính kỹ thuật
| Model | ZK4500 |
| Material | Optical |
| CPU | 120MHz DSP |
| Flash | 16KB |
| SoC | RTOS |
| Image Quality | 0.3 million pixels CMOS |
| Sunlight Operation | White filed, General Sunlight |
| Water Splash | Yes |
| Dry, Wet, or Rough Fingerprints | General Level |
| Power Consumption | 5V: 200mA Scanning; 5V:90mA idle (waiting for finger) |
| Live Fingerprint Detection | No |
| LED | Green |
| Product Certifications | FCC, CE |
| Power Voltage | 200mA |
| Communication | USB 2.0 / USB1.1 / USB1.0 |
| Interface Socket | USB Type A |
| Image Resolution | 500 dpi |
| Effective Collecting Area | 13.24 x 15.7 mm |
| Collecting Area | 15.4 x 18 mm |
| Image Size | 280 x 360 pixel |
| Dimension | 65.5 x 48 x 79.8 mm |
| Image Format | BMP |
| Template | ZKFinger V10 |
| Template Size | <2KB, (ZKFinger V10.0);1568 B (ISO 19794-2) |
| Gray Level | 256 |
| Weight | 0.25kg |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h |
-Sản xuất tại Trung Quốc.
-Bảo hành: 12 tháng.
