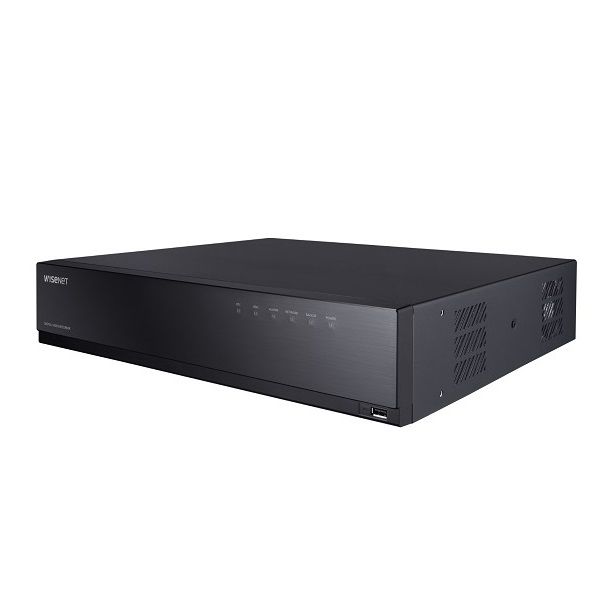

Đầu ghi hình 8 kênh 5 in 1 Hanwha Vision HRX-835A
- 5-in-1 8CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 10CH (Analog Maximum 8CH and Network Maximum 10CH), up to 8MP
- H.265, H.264, MJPEG codec
- 8fps@8MP, 12fps@5MP, 15/12fps@4MP, 30/25fps@2MP recording
- Coaxial control
- Up to 4 SATA HDDs (6TB/HDD)
- HDMI/VGA Dual monitor (Expand mode)
- P2P service (QR code connect)
Đặc tính kỹ thuật
| Display | ||
| Analog camera | Inputs | 8CH(1Vp-p 75ohm, BNC) |
| Signal Type | AHD (8MP, 5MP, 4MP, 1080p, 720p) HDTVI (8MP, 5MP, 4MP, 1080p, 720p) HDCVI (8MP, 5MP, 4MP, 1080p, 720p) CVBS (NTSC/PAL) | |
| Network camera | Inputs | 2CH (Up to 10CH) |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI (Wisenet), ONVIF | |
| Live | Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(240fps) | |
| Performance | ||
| Record | Compression | H.265, H.264, MJPEG |
| Record Rate (Analog) | (Main Stream, NT/PAL) 8M 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, Under 960H 30/25fps/CH (Sub Stream) 720p/CH or Higher: 640x368 Full fps, SD: upto SD Full fps | |
| Recording Bandwidth | Max. 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss Analog Camera: Video Loss, Motion Detection,Tampering Network Camera: Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps (18CH simultaneously) |
| User | Max. 4 users (Set 1, Remote 3) | |
| Simultaneous playback | 10CH(Local Monitor), 10Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web) | |
| Fisheye Dewarping | CMS (only N/W Camera) | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 4ea (Max 24TB) | |
| Backup | File backup | Set: Recorder, SEC, AVI Webviewer: AVI |
| Function | Max. 10 CH play, Date-time/title display | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission Bandwidth | Max. 64Mbps | |
| Transmission Speed | Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher: 640x368 full fps/CH, SD signal: upto CIF full fps/CH | |
| Audio | Input/Output | 8 Lline in (RCA 4 Line, Option: Audio Extension Cable) / 1Line line out |
| Compression | G.711 (N/W Camera G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate (Hanwha Techwin Root CA) | |
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer | |
| Interface | ||
| HDMI | 1ea | |
| VGA | 1ea | |
| BNC | 16CH In / 1CH Out (Spot Output) | |
| Audio | Out (1EA, RCA, Line) | |
| Ethernet | RJ-45 (10/100/1000BASE-T) | |
| Alarm | In 8EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) | |
| USB | 2EA (Front USB2.0, Rear USB 3.0)) | |
| Serial (Protocols) | RS-485/422 (Samsung-T/Pelco-D/Pelco-p) | |
| Power inlet | 1EA AC | |
| System | ||
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| General | ||
| Operating Temperature | 0°C to +40°C | |
| Operating Humidity | 20% ~ 85% RH | |
| Power Input | 100~240 VAC±10%, 50/60 Hz | |
| Power Consumption | Max. 100W (6T HDD 4ea) | |
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 88 x 384.8mm | |
| Weight | Approx. 7.1Kg | |
- Bảo hành: 24 tháng.
