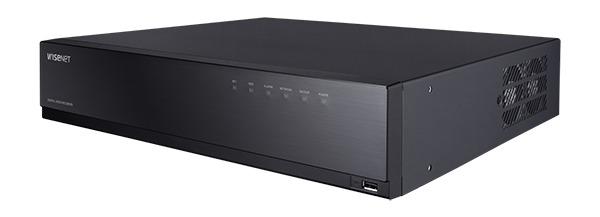

Đầu ghi hình camera AHD 16 kênh Hanwha Techwin WISENET HRX-1621/VAP
- Đầu ghi hình 5 in 1 16 kênh camera.
- Hỗ trợ ngõ vào: AHD / HDTVI / HDCVI / CVBS / IP.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ phân giải: 8 Meagapixel ~ CIF.
- Tốc độ ghi hình: 8fps @ 8MP, 12fps @ 5.0 Megapixel, 30fps @ 2.0 Megapixel.
- Hỗ trợ truyền dữ liệu qua cáp đồng trục.
- Tìm kiếm thông minh (chỉ camera Network).
- Hỗ trợ 8 ổ cứng SATA dung lượng lưu trữ mỗi ổ 6TB.
- Dịch vụ P2P (kết nối mã QR).
- Ethernet: RJ-45 (10/100/1000BASE-T).
- 16 kênh ngõ vào Audio, 1 kênh ngõ ra Audio.
- Hỗ trợ USB: 2 cổng (Front USB 2.0, Rear USB 3.0).
- Hỗ trợ DDNS (Dynamic Domain Name System) tên miền xem qua mạng internet.
- Xem hình ảnh trên nhiều loại điện thoại di động, phần mềm quan sát (iPhone, Androids).
- Nguồn điện: 100 ~ 240VAC.
- Công suất tiêu thụ: Tối đa 180W.
- Kích thước: 440 x 48 x 384.8mm.
- Trọng lượng: 5.6kg.
Đặc tính kỹ thuật
| Model | HRX-1621/VAP | |
| Analog camera | Inputs | 16CH (1Vp-p 75ohm, BNC) |
| Signal Type | AHD (8MP, 5MP, 4MP, 1080p, 720p) | |
| HDTVI (8MP, 5MP, 4MP, 1080p, 720p) | ||
| HDCVI (5MP, 4MP, 1080p, 720p) | ||
| CVBS (NTSC/PAL) | ||
| Network camera | Inputs | Max. 18CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI (Wisenet), ONVIF | |
| Live | Local Display | 1x HDMI, 1x VGA (Dual monitor) |
| HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode) | ||
| VGA: 1920x1080, 1280x720 | ||
| Resolution | [Analog Camera (NTSC/PAL)] | |
| - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP (30/25fps), 1MP(30/25fps), 960H (or 720H)(30/25fps) (per CH [Network Camera] | ||
| - Typ. 2MP(480fps) | ||
| Performance | ||
| Record | Compression | H.265, H.264, MJPEG |
| Record Rate (Analog) | Analog Camera (NTSC/PAL)(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fpsCH, 720p 30/25fps/CH, SD 30/25fps/CH(Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD fullfps/CH | |
| Recording Bandwidth | Max. 70Mbps (Analog Camera only) ~ 51Mbps (Network Camera only) | |
| Resolution | 8MP ~ CIF | |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track, Alarm Input | |
| Event Trigger | Alarm Input Analog Camera: Video Loss, Motion Detection,Tampering Network Camera: Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis) Appear, Face Detection, Audio detection), Defocus camera event | |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |
| Search & Play | Playback Bandwidth | Max. 32Mbps (18CH simultaneously) |
| User | Max. 4 users (Set 1, Remote 3) | |
| Simultaneous playback | 18CH (Local Monitor) | |
| 4Ch (CMS, Wisenet Mobile), 1Ch(Web) | ||
| Fisheye Dewarping | WEB / CMS | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 8ea (Max 48TB) | |
| Backup | File backup | BU, EXE(Include Player), AVI (Webviewer only) |
| Function | Max. 16 CH play, Date-time/title display | |
| Functions | ||
| PTZ | Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live (16ch) : Multi-Profile Support | |
| Playback (4Ch Multi Playback, Max 2MP) | ||
| Event push | ||
| Max. Remote Users | Search (3), Live Unicast (10) | |
| Redundancy | ARB | Support |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera | |
| Configuration), P2P (QR code) | ||
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 16CH In / 1CH Out (Spot Output) | |
| Audio | Out (1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 16EA, Out 4EA | |
| - Relay Out1 (NO/NC/COM) | ||
| - Relay Out2~4 (NO/COM) | ||
| USB | 2EA (Front USB2.0, Rear USB 3.0) | |
| Serial (Protocols) | RS-485/422 (Samsung-T/Pelco-D/Pelco-p) | |
| Power inlet | 1EA AC | |
| System | ||
| System Control | Mouse, IR Remocon, Webviewer, System Controller (SPC-7000, SPC-6000, SPC2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (ProfileS), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission speed | Analog Camera (NTSC/PAL) | |
| (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps | ||
| CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH | ||
| (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full | ||
| fps/CH | ||
| Transmission Bandwidth | Max. 30Mbps | |
| Audio | Input/ Output: 16 Lline in (Built in 4 Line, Option : Audio Extension Cable) / 1Line line out | |
| Compression: G.711 (N/W Cam G.711, 726) | ||
| Audio Communication: 2-way | ||
| Max Remote Users | Search(3), Live Unicast(10), Multicast (20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Techwin Root CA) | |
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C (+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Electrical | ||
| Power Input | 100~240 VAC±10%, 50/60 Hz | |
| Power Consumption | Max. 180W (6T HDD 8ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension | 440 x 88 x 384.8mm | |
| Weight | Approx. 5.6Kg | |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 36 tháng.
