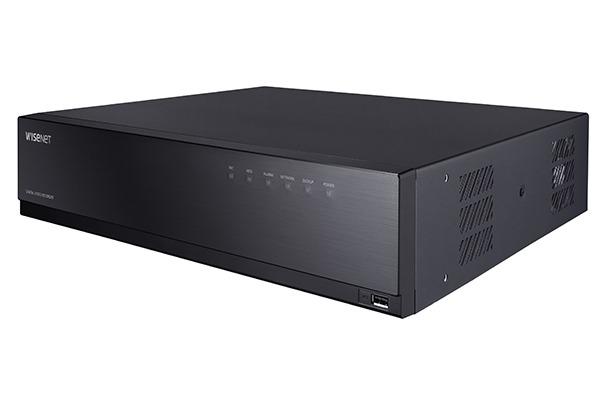

Đầu ghi hình camera AHD/HDTVI/HDCVI/CVBS/IP 8 kênh Hanwha Techwin WISENET HRX-821
- Đầu ghi hình Camera 8 kênh 5 in 1.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Ngõ vào: AHD/HDTVI/HDCVI/CVBS/IP.
- Ghi hình: 8fps@8MP, 12fps@5MP, 30fps@2MP.
- Coaxial control.
- Smart search (only Network camera).
- Hỗ trợ 4 ổ cứng SATA dung lượng lưu trữ 6TB.
- Dual monitor: HDMI/VGA.
- P2P service (QR code connect).
Đặc tính kỹ thuật
| Model | HRX-821 |
| Analog camera | |
| Inputs | 8CH (1Vp-p 75ohm, BNC) |
| Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) |
| HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) | |
| CVBS(NTSC/PAL) | |
| Network camera | |
| Inputs | Max. 10CH |
| Resolution | 8MP ~ CIF |
| Protocols | SUNAPI(Wisenet), ONVIF |
| Live | |
| Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode) VGA: 1920x1080, 1280x720 |
| Resolution | [Analog Camera (NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(or 720H)(30/25fps) per CH [Network Camera] - Typ. 2MP(480fps) |
| Performance | |
| Compression | H.265, H.264, MJPEG |
| Record Rate(Analog) | Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH |
| Recording Bandwidth | Max. 40Mbps (Analog Camera only) ~ 28Mbps (Network Camera only) |
| Resolution | 8MP ~ CIF |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track |
| Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps (10CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | 10CH(Local Monitor) 4Ch (CMS, Wisenet Mobile), 1Ch(Web) |
| Fisheye Dewarping | WEB / CMS |
| Storage | |
| Supported HDD | Up to 6TB |
| HDD Slot | SATA 4ea(Max 24TB) |
| Backup | |
| File backup | BU, EXE(Include Player), AVI(Webviewer only) |
| Function | Max. 10 CH play, Date-time/title display |
| PTZ | |
| Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone | |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Control | Live(8ch): Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push |
| Max. Remote Users | Search(3), Live Unicast(10) |
| Redundancy | |
| ARB | Support |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI |
| Interface | |
| HDMI | 1EA |
| VGA | 1EA |
| BNC | 8CH In / 1CH Out(Spot Output) |
| Audio | Out(1EA, RCA, Line) |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Alarm | In 16EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) |
| USB | 2EA(Front USB2.0, Rear USB 3.0)) |
| Serial(Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) for PTZ |
| Power inlet | 1EA AC |
| System | |
| System Control | Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC2000 |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| Environmental | |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC |
| Electrical | |
| Power Input | 100~240 VAC±10%, 50/60 Hz |
| Power Consumption | Max. 130W (6T HDD 4ea) |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension | 440 x 88 x 384.8mm |
| Weight | Approx. 4.6kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
