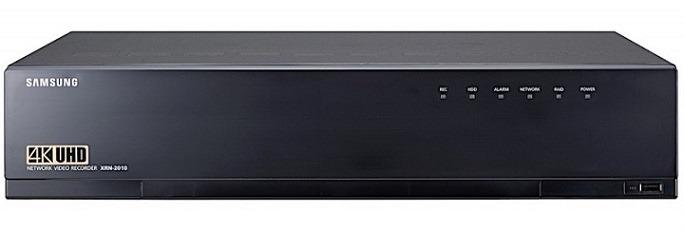

Đầu ghi hình camera IP 32 kênh Hanwha Techwin WISENET XRN-2010/KAP
-Đầu ghi hình camera IP 32 kênh.
-Độ phân giải: 12 Megapixel.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Ghi hình camera qua mạng lên đến tối đa 256Mbps.
-Support 4K video out on HDMI monitor.
-Support Dual monitor video out.
-Hỗ trợ WiseStream.
-Hỗ trợ 8 ổ cứng SATA dung lượng 48TB.
-Hỗ trợ 1 ổ cứng e-SATA.
-Đa ngôn ngữ.
-Hỗ trợ giao thức: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
-Cổng kết nối: RJ45, Gigabit ethernet x 2.
-Hỗ trợ hệ điều hành: Windows 7, 8, 10, Mac OS X (10.8 or above).
-Nguồn điện cung cấp: 100 – 240VAC.
-Công suất tiêu thụ: Tối đa 99W.
-Kích thước: 440 x 88 x 384.8mm.
-Trọng lượng: 4.86kg.
Đặc tính kỹ thuật
| Inputs | Up to 32 CH |
| Resolution | CIF ~ 12MP |
| Protocols | Samsung, ONVIF |
| Local Display | 1x HDMI, 1x VGA dual monitor |
| Multi Screen Display | [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence |
| Performance | [Local monitor] 12MP (30fps), 8.3MP (120fps), 1080p (480fps), 720P (960fps), D1 (1560fps) |
| Embedded | Linux |
| Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | Max. 256Mbps |
| Resolution | CIF ~ 12MP |
| Mode | Normal, Schedule (Continuous / Event), Event (Pre/ Post) |
| Event Trigger | Alarm input, Video loss, Camera event (Sensor, MD, Video analytics) |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Playback Bandwidth | 32Mbps (16 CH simultaneously |
| Performance | Max. 4 users (Local 1, Remote 3) |
| Mode | Date & Time (Calendar) / Event log list / Text search / ARB search / |
| Smart search (Virtual line w/direction, Enter / Exit) | |
| Simultaneous Playback | Max. 16CH (Local monitor, CMS) |
| Resolution | CIF ~ 12MP |
| Fish-eye Dewarping | WEB / CMS |
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down |
| External | iSCSI storage (Max. 384TB), Promise VessRaid R2600 |
| Internal HDD | 0TB ~ 6TB / 8 (Max. 48TB) |
| File Backup (Via Web) | BU/Exe (GUI), JPG/AVI (Network) |
| RAID | RAID 5 (Array size: 4 HDD x 2 array) |
| Function | Multi channel (Up to 16 CH) play, Date-time/title display |
| Input / Output | 8 / 4 (NO/NC selectable) |
| Input | 32CH (Network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-way |
| Interface | RJ-45, Gigabit ethernet x 2 |
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha security DDNS |
| Hanwha security DDNS | 512Mbps (iSCSI off ), 256Mbps (iSCSI on) |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 |
| IP | IPv4 / IPv6 |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian,Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| OS | Window 7, 8, 10, Mac OS X (10.8 or above) |
| Web Browser | MS IE, Google Chrome, Mac Safari, Firefox |
| Viewer | Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer |
| Software | CMS Support: SDK / CGI (SUNAPI) |
| Camera Setup | Register: Auto, Manual |
| Setup Items: IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/ | |
| Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), | |
| Fisheye dewarping mode, Hallway view setup, Camera webpage | |
| PTZ | Control / Preset: Via GUI, Webviewer, SPC-2000 / 255 presets |
| Smart Phone | OS: Android, iOS |
| Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI) | |
| Control: Live (16CH): Multi-profile support, Playback (1CH). | |
| Max. Remote Users: Search 3 / Live unicast 10 | |
| Redundancy | Failover / ARB: N + 1/ Yes |
| System Control | Mouse, Web, SPC-2000 (Controller) |
| Indicator | LED (Status indicator): 6ea |
| HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network1 | |
| HDMI | Main: 1ea (Both support Live / PB / Setup) |
| Support up to 4K (3840 x 2160, Single monitor mode) | |
| VGA | Sub: 1ea (Support live screen up to 16 div. mode) |
| HDMI Main: 1ea (Both support Live / PB / Setup) | |
| Support up to 4K (3840 x 2160, Single monitor mode) | |
| Audio | Out 1ea (RCA, Line) |
| Ethernet | RJ-45 2ea (LAN/WAN, 1Gbps) |
| Alarm | In 8ea (Terminal block), Alarm reset 1ea. Out 4ea (Terminal block) - Relay out1(NO/NC/COM) - Relay out 2 ~ 4 (NO/COM) |
| USB | 2ea (Front 1, Rear 1) |
| Storage | 1 e-SATA |
| Serial / Reset | RS-232C / Switch 1ea |
| Power Cord | 1ea AC Inlet |
| Log | Log List: Max. 20,000 (System log, Event log each) |
| Electrical | Input Voltage / Current: 100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A |
| Color / Material | Black / Metal |
| Dimensions | 440.0 x 88.0 x 384.8mm |
| Weight | 4.86kg (Without HDD) |
-Hãng sản xuất: Hanwha Techwin Hàn Quốc.
-Sản xuất tại Korea.
-Bảo hành: 24 tháng.
