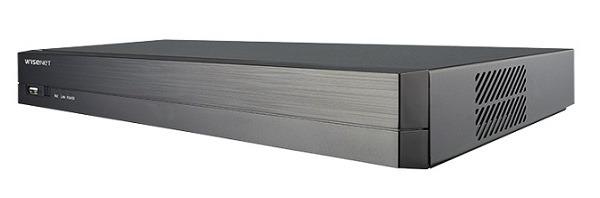

Đầu ghi hình camera IP 4 kênh Hanwha Techwin WISENET QRN-410
- Đầu ghi hình camera IP 4 kênh.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ phân giải: CIF ~ 8MP.
- Hỗ trợ WiseStream.
- Ghi hình camera qua mạng 50Mbps.
- Hỗ trợ ARB.
- Hỗ trợ P2P service (QR code connect).
- Hỗ trợ 1 ổ cứng SATA dung lượng lưu trữ tối đa 6TB.
- Hỗ trợ âm thanh: 2 chiều.
- 4 kênh ngõ vào Audio, 1 ngõ ra Audio.
- 4 kênh ngõ vào báo động, 2 kênh ngõ ra báo động.
- Nguồn điện: 12VDC/ 4A.
Đặc tính kỹ thuật
| Model | QRN-410 | |
| Video | Inputs | Up to 4CH |
| Resolution | CIF ~ 8MP | |
| Protocols | Wisenet, ONVIF, RTSP | |
| Live | Local Display | HDMI / VGA |
| Multi Screen Display | [Local monitor] 1 / 2V / 3V / 4 / Auto sequence | |
| [Web] 1 / 4 / Auto sequence | ||
| Performance | [Local monitor] 8MP (60fps), 5MP (90fps), 3MP (120fps), 2MP (240fps), | |
| 720p (240fps), D1 (240fps) | ||
| PERFORMANCE | ||
| Operating System | Embedded | Linux |
| Recording | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | 50Mbps | |
| Resolution | CIF ~ 8MP | |
| Mode | Manual, Schedule (Continuous / Event), Event (Pre / Post) | |
| Event Trigger | Alarm input (4), Video loss, Camera event (Sensor, MD, Video analytics, Defocus) | |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |
| Search & Playback | Playback Bandwidth | 32Mbps (4CH simultaneously) |
| Performance | Max. 3 users (Local 1, Remote 3) | |
| Mode | Date & Time (Calendar) / Event log list / Text search (POS, ANPR), | |
| ARB search, Smart search (Virtual Line w/ direction, Enter / Exit) | ||
| Simultaneous Playback | Up to 4CH (Local, Network) | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down | |
| Storage | Default Built-In | 0TB ~ 6TB (Dependent on region) |
| Internal | 1 (Max.6TB) | |
| Max. Capacity | 6TB | |
| Backup | File Backup | BU/EXE (USB), JPG/AVI (Web, CMS) |
| Function | Multi channel (Up to 8CH) play, Date-time/title display | |
| Sensor | Input / Output | 4 / 2 (NO 1ea, NO/NC 1ea) |
| Audio | Input | 4CH (Network) |
| Compression | G.711, G.726, AAC (16/48KHz) | |
| Audio Communication | 2-way | |
| NETWORK | ||
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, | |
| Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | ||
| DDNS | Hanwha DDNS, 3rd party DDNS | |
| Transmission Bandwidth | 64Mbps | |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 | |
| IP | IPv4 / IPv6 | |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption | |
| Language | GUI / Web | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, |
| Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, | ||
| Greek, Norwegian, Finnish, Korean, Chinese(Simplified), Japanese, Thai | ||
| OS | Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11 | |
| Web Browser | Non-plugin Webviewer | |
| Supported Browser : Google Chrome 47, MS Edge 20, Mozilla Firefox | ||
| Plug-in Webviewer | ||
| Supported MS Explorer 11, Apple Safari 9 (Mac OS X only) | ||
| Viewer Software | Type | Wisenet WAVE, SSM, Webviewer, SmartViewer, Wisenet mobile viewer |
| CMS Support | SDK / CGI (SUNAPI) | |
| FUNCTIONS | ||
| Camera Setup | Register | Auto mode, Manual mode |
| Setup Items | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness / | |
| Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), | ||
| Fisheye dewarping (Web), Hallway view setup, Camera webpage | ||
| Easy Configuration | Setup wizard (Date/Time, Network, Auto camera configuration), P2P (QR code) | |
| Redundancy | ARB | Yes |
| PTZ | Control / Preset | Via GUI, Webviewer, 255 presets |
| Smart Phone | OS | Android, iOS |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) | |
| Control | Live (4CH) : Multi-profile support, Playback (1CH), Event push | |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 | |
| System Control | Mouse, IR Remote, Web | |
| INDICATOR / INTERFACE | ||
| Front | Indicator | Power status LED 1ea, LAN LED 1ea, Record status LED 1ea |
| Connections | VGA | 1ea, supports Live, Playback, Setup |
| HDMI | 1ea,support up to 4K (3840 x 2160), supports Live, Playback, Setup | |
| Audio | Out 1ea (RCA, Line) | |
| Ethernet | 1ea (WAN, 1Gbps) - WAN : Uplink to LAN/CMS | |
| Alarm | In 4ea (Terminal block) / Out 2ea (Terminal block) | |
| USB | 2ea (Front 1, Rear 1) | |
| Reset | Switch (1ea) | |
| Power Cord | Included | |
| SYSTEM | ||
| Log | Log List | Max. 20,000 (System log, Event log each) |
| GENERAL | ||
| Electrical | Input Voltage / Current | 12VDC / 4A |
| Power Consumption | MAX. 9W(31BTU, 2TB HDD x 1ea) | |
| Environmental | Operating Temperature | +0°C ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 20% ~ 85% RH | |
| Mechanical | Color / Material | Black / Metal |
| Dimensions | 300.0 x 48.0 x 208.7mm | |
| Weight | 1.66Kg | |
- Bảo hành: 24 tháng.
