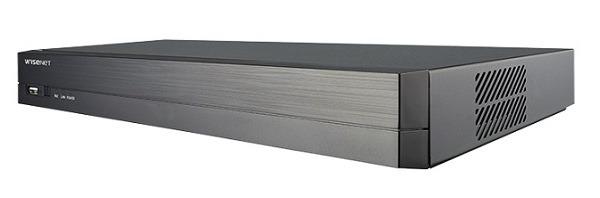

Đầu ghi hình camera IP 4 kênh Hanwha Techwin WISENET QRN-420S/VAP
- Đầu ghi hình camera IP 4 kênh.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ WiseStream.
- Ghi hình camera qua mạng 40Mbps.
- Plug và play bằng 4 cổng PoE.
- Hỗ trợ 1 ổ cứng SATA dung lượng lưu trữ 6TB.
- Ngõ vào/ ngõ ra Audio: 4 kênh.
- Hỗ trợ âm thanh: 2 chiều.
- Tương thích với tín hiệu ngõ ra: HDMI, VGA.
- Hỗ trợ dịch vụ P2P (mã QR).
- Hỗ trợ DDNS (Dynamic Domain Name System) tên miền xem qua mạng internet.
- Xem hình ảnh trên nhiều loại điện thoại di động, phần mềm quan sát (iPhone, Androids).
- Nguồn điện: 54VDC/ 1.20A.
- Kích thước: 300.0 x 47.1 x 208.4 mm.
- Trọng lượng: 0.99kg.
Đặc tính kỹ thuật
| Model | QRN-420S/VAP | |
| Display | ||
| Network camera | Inputs | Max. 4CH |
| Resolution | 8MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | Local Display | HDMI: 3840 x 2160, 1920x1080, 1280x720 |
| Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(120fps), 720p(120fps), D1(120fps) | |
| Performance | ||
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 40Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) | |
| Event Action | e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Max. 32Mbps (4CH simultaneously) |
| User | Max. 4 users (Set 1, Remote 3) | |
| Simultaneous playback | Max. 4CH(Local Monitor, Network) | |
| Fisheye Dewarping | WEB / CMS/ Mobile | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea(Max. 6TB) | |
| Backup | File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Function | Multi channel (Upto 4CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Audio | Input/Output | 4CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | HTTPS(SSL) Login Authentication | |
| Digest Login Authentication | ||
| IP Address Filtering | ||
| User access log | ||
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | ||
| Device Certificate(Hanwha Techwin Root CA) | ||
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile | |
| Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS | ||
| Functions | ||
| Camera Setup | Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup |
| Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | ||
| PTZ | Control | Via GUI, Webviewer |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(Multi-Profile Support), Playback | |
| Max. Remote Users | Search (3), Live Unicast (10) | |
| Redundancy | ARB | Support |
| Easy configuration | Configuration), P2P (QR code) | |
| Interface | ||
| HDMI | 1EA | |
| Ethernet | RJ-45(10/100/1000BASE-T) x 1 | |
| RJ-45(PoE+) x 4 | ||
| USB | 2EA(Front 1, Rear 1) | |
| System | ||
| System Control | Mouse, IR remocon, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C (+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 54VDC / 1.20A | |
| Power Consumption | Max. 47W(1HDD, PoE on) | |
| Max. 7.4W(1HDD, PoE off) | ||
| PoE Budget | Max. 35W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension | 300 x 47.1 x 208.4mm | |
| Weight | 0.99kg | |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
