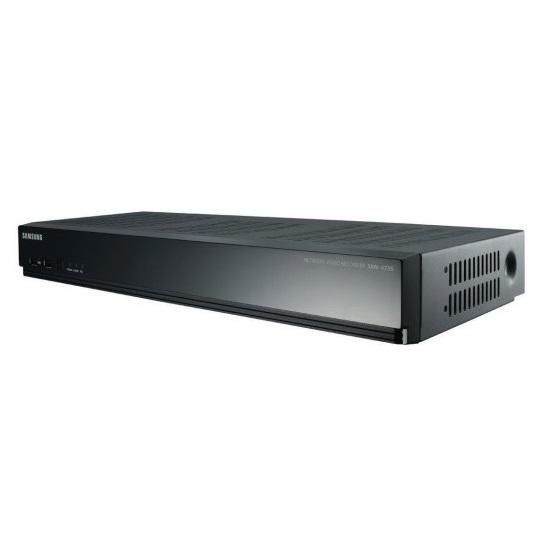

Đầu ghi hình camera IP 4 kênh Hanwha Techwin WISENET SRN-473S/KAP
-Đầu ghi hình camera IP 4 kênh.
-Độ phân giải: 8 Megapixel.
-Ghi hình camera qua mạng lên đến 32Mbps.
-Hỗ trợ 1 ổ cứng SATA dung lượng lưu trữ 4TB.
-Hỗ trợ âm thanh: 2 chiều.
-Cổng kết nối: RJ45.
-2 ngõ vào báo động, 1 ngõ ra báo động.
-Hỗ trợ hệ điều hành: Windows XP, Vista, 7, 8, Mac OS.
-Hỗ trợ trình duyệt Web: Microsoft Internet Explorer, Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above), Apple Safari (Ver. 6.0.3 or above).
-Nguồn điện cung cấp: 54VDC.
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 77W.
-Kích thước: 360 x 44 x 159.9mm.
-Trọng lượng: 1.6kg.
Đặc tính kỹ thuật
| Inputs | Up to 4 CH |
| Resolution | CIF ~ 8MP |
| Protocols | Samsung, ONVIF |
| Local Display | HDMI / VGA |
| Multi Screen Display | [Local monitor] 1 / 4 / Auto sequence, [Web] 1 / 4 / Auto sequence |
| Performance | [Local monitor] 8M (20fps), 5M (30fps), 3M (50fps), 2M (120fps), 720p (120fps), D1 (120fps) [Web] 5M (30fps), 3M (60fps), 2M (120fps), 720p (120fps), D1 (120fps) |
| Embedded | Linux |
| Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | 32Mbps, 2M 4 camera real-time recording |
| Resolution | CIF ~ 8MP |
| Mode | Normal, Schedule (Continuous / Event), Event (Pre/ Post) |
| Event Trigger | Alarm input (2), Video loss, Camera event (Alarm in, MD, Video analytics) |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Playback Bandwidth | 32Mbps |
| Performance | Max. 3 users |
| Mode | Date & Time (Calendar) / Event log list / Text search (POS) |
| Simultaneous Playback | [Local monitor] Up to 4CH, [Web, CMS] Up to 4CH |
| Resolution | CIF ~ 8MP |
| Fish-eye Dewarping | Via Smartviewer |
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down |
| Internal HDD | 1SATA |
| Max.Capacity | Internal 4TB |
| File Backup (Via Web) | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Max. 4CH play, Date-time/title display |
| Input / Output | 2 / 1 (NO/NC 1ea) |
| Input / Compression | 4CH (Network) / G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-way |
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Samsung iPOLiS DDNS |
| Transmission Bandwidth | Max. 64Mbps |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 |
| IP | IPv4 / IPv6 |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, |
| Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| OS | Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above) |
| Web Browser | Microsoft Internet Explorer (Updated Ver. 8 ~10, IE 9 or above recommended) |
| Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above), | |
| Apple Safari (Ver. 6.0.3 or above) | |
| Viewer | Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer |
| Software | CMS Support: SDK / CGI (SUNAPI) |
| Camera Setup | Register: PnP mode, Manual mode |
| IP address, Add profile edit, Bitrate, Compression, GOP, Quality | |
| Camera MD setup. Camera video setup (Simple focus, Brightness/ Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS) | |
| PoE | Monitor PoE power consumption, On/Off control for each PoE camera |
| Remote reset for each PoE camera | |
| Easy Configuration | Setup Wizard (Language Date/Time, Network, Auto camera configuration) |
| ARB (Auto Recovery Backup) | Yes |
| PTZ | Control / Preset: Via GUI, Webviewer, SPC-2000 / 255. OS: Android, iOS |
| Control: Live (4CH)/ Playback (1CH) | |
| OS | Android, iOS |
| Control | Live (4CH) / Playback (1CH) |
| System Control | Mouse, IR Remocon, Web, SPC-2000 (Controller) |
| Indicator | Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea |
| Record status LED 1ea, Network action LED 1ea, Backup LED 1ea | |
| USB | 2ea (Front 1ea / Rear 1ea) |
| HDMI/VGA | 1ea/ 1ea |
| Audio | Out 1ea (RCA, Line) |
| Ethernet | RJ-45 4ea (PoE/PoE+, 100Mbps), RJ-45 1ea (WAN, 100Mbps) |
| Alarm | In 2ea (Terminal block) / Out 1ea (Terminal block) |
| Reset | Yes (Factory reset) |
| Log List | Max. 20,000 (System log, Event log each) |
| Input Voltage / Current | 100 ~ 240VAC |
| Power Consumption | 54VDC/ 1.67A |
| PoE Budget | Max. 50W |
| Color / Material | Black / Metal |
| Dimensions | 360.0 x 44.0 x 159.9mm |
| Weight | 1.6kg |
-Hãng sản xuất: Hanwha Techwin Hàn Quốc.
-Sản xuất tại Korea.
-Bảo hành: 24 tháng.
