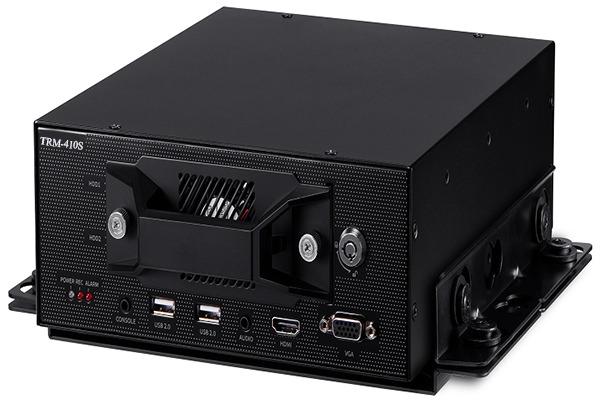

Đầu ghi hình camera IP 4 kênh Hanwha Techwin WISENET TRM-410S
- Đầu ghi hình camera IP 4 kênh.
- Chuẩn nén hình ảnh: H.265, H.264.
- Độ phân giải: 8.0 Megapixel.
- Ghi hình tối đa: 50Mbps.
- Hỗ trợ 2 ổ cứng SATA (Front-swap) dung lượng lưu trữ tối đa 2TB (HDD, Non-RAID mode).
- Hỗ trợ 2 ổ cứng SATA (Front-swap) dung lượng lưu trữ tối đa 4TB (SSD, Non-RAID mode).
- Ghi hình camera theo chuẩn ONVIF.
- Hỗ trợ WiseStream.
Đặc tính kỹ thuật
| Model | TRM-410S |
| Network Camera | |
| Inputs | Max. 4ch (4 PoE, RJ-45) |
| Resolution | CIF ~ 8MP |
| Protocols | Wisenet (SUNAPI), ONVIF |
| Live | |
| Local Display | HDMI / VGA |
| Multi-Channel Display | [Local Monitor] 1 / 2H / 2V / 3V / 4 / Auto |
| sequence | |
| [Web] 1 / 4 / Auto sequence | |
| Performance | [Local Monitor] 8MP (60fps), 5MP (90fps), 3MP (120fps), 2MP (120fps), 720p (120fps), D1 (120fps) |
| Embedded | Linux |
| Record | |
| Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | Max. 50Mbps |
| Resolution | CIF ~ 8MP |
| Type | Manual, Schedule (Continuous / Event), Event (Pre / Post), Emergency |
| Retention | Retention per channel (1~400 days) |
| Event Trigger | Alarm Input (6), Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus) G-Sensor (3 Axis) |
| Event Action | e-Mail, Alarm Out, Buzzer, Monitor Out |
| Search & Play | |
| Playback Bandwidth | 32Mbps (4ch simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) |
| Mode | Date & Time(Calendar) / Event Log list / Smart Search |
| Simultaneous Playback | Max. 4ch (Local Monitor, CMS) |
| Resolution | CIF ~ 8MP |
| Fisheye Dewarping | Web / CMS |
| Playback Control | Fast / Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Built-In | 0TB ~ 4TB |
| Internal HDD | 2 SATA (Front-Swap) - Max. 2TB (HDD, Non-RAID Mode) - Max. 4TB (SSD, Non-RAID Mode) |
| Backup | |
| File Backup | Exe (GUI), JPG/AVI (excluding GPS information)(Network) |
| Function | Multi channel (Up to 4ch) play, Date-time / Title / GPS display |
| Type | Auto (Wi-Fi), Manual (HDD/SSD |
| Wifi Backup Performance | Max. 50Mbps |
| Sensor | |
| I/O | 6/4 |
| Audio | |
| Input | 4ch (Network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Network | |
| Interface | RJ-45 (Gigabit ethernet x1) |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth (Wired (LAN)) | Max. 50Mbps |
| Max Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| IP Version | IPv4/v6 |
| Security | IP address filtering, User access log, 802.1x, Encryption |
| Wireless | WiFi: Internal (802.11 ac(5G)), 1T1R |
| 3G / LTE: Support external 3G/LTE router (Ethernet) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| OS | Windows 7, 8, 10, Mac OS X (10.8 or above) |
| Web Browser | MS IE, Google Chrome, Mac Safar |
| Camera Setup | |
| Register | Auto, Manual |
| Setup Items | IP address, Profile add/edit, Bitrate, Compression, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, Iris, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway view Setup, Camera webpage, Wisestream On/Of |
| Camera Control Max. Frame rate | |
| PoE/PoE+ Power Control | Monitor PoE/PoE+ power consumption, On/Off control for each PoE/PoE+ camera, Remote reset for each PoE/PoE+ camera |
| Time Sync. | NVR time protocol for PoE/PoE+ camera (Time sync based on NVR time) GPS time sync |
| PTZ | |
| Control | Via GUI, Webviewer |
| Preset | 300 Presets |
| System Control | Mouse, Web |
| Front | |
| Indicator | LED (Status indicator) : 3ea - Power 1, Alarm 1, Record 1 |
| Audio | Out (1ea, Line) |
| HDMI / VGA | 2ea (Support live monitor screen up to 9div. mode, Clone) |
| HDMI: Up to 4K (3840 x 2160), VGA: Max. 1080p | |
| USB | 3ea (Front x2, Rear x1) |
| HDD Key Lock | 1ea (Power switch) |
| Connections | |
| Ethernet | Viewer: 1ea (100Mbps, RJ-45) PoE Camera Input: 4ea (100Mbps, RJ-45) |
| Control I/O | RJ-45 1ea (External Control Box) (1) Status LED (2) G-Sensor(3 Axis) (3) Emergency Recording button (4) Power Switch (5) Audio Out |
| Alarm | (1) In (6ea) (2) Out (4ea) |
| Serial | 1 RS-232C (Reserved) |
| WiFi | 1ea (RP-SMA, F) |
| GNSS | 1ea (4pin Micro-Fit), Support GPS/Glonass |
| Reset | Switch (1ea, PW clear) |
| Power Cord | 6pin connector 1ea |
| Power Management | |
| Shutdown Delay | Max. 72Hrs (User selectable)shutdown / Support CGI shutdown |
| Startup Delay | 0 (Default) sec ~ 10 Min (User selectable) |
| Log List | Max. 20,000 (System log, Event log each) |
| Environmental | |
| Operating Temperature / Humidity | -25 to +55 °C(-13 to +131 °F): HDD installed |
| Humidity | 20% ~ 85% RH |
| Power | 9 ~ 36V DC Battery power detection & Low power limit setup |
| Power Consumption | Max. 83W |
| PoE Budget | Max. 32W |
| Mechanical | |
| Color / Material | Black / Steel |
| Dimension | 210mm x 80mm x 250mm |
| Weight | Approx. 3.4Kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
