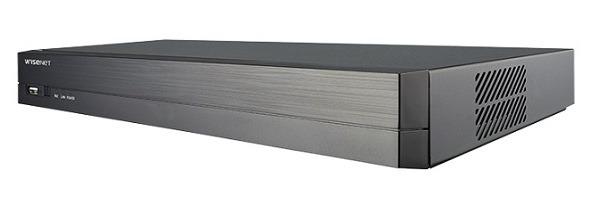

Đầu ghi hình camera IP 8 kênh Hanwha Techwin WISENET QRN-820S/VAP
- Đầu ghi hình camera IP 8 kênh.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ WiseStream.
- Hỗ trợ USB keyboard.
- Hỗ trợ SUNAPI và ONVIF.
- Ghi hình camera qua mạng 80Mbps.
- Plug và play bằng 8 cổng PoE.
- Hỗ trợ 1 ổ cứng SATA dung lượng lưu trữ 6TB.
- Hỗ trợ âm thanh: 2 chiều.
- Ngõ vào/ ngõ ra Audio: 8 kênh.
- Tương thích với tín hiệu ngõ ra: HDMI, VGA.
- Hỗ trợ dịch vụ P2P (QR code).
- Hỗ trợ DDNS (Dynamic Domain Name System) tên miền xem qua mạng internet.
- Xem hình ảnh trên nhiều loại điện thoại di động, phần mềm quan sát (iPhone, Androids).
- Nguồn điện: 54VDC/ 1.67A.
- Chức năng cấp nguồn qua mạng PoE.
- Kích thước: 300.0 x 47.1 x 208.4 mm.
- Trọng lượng: 1.01kg.
Đặc tính kỹ thuật
| Model | QRN-820S/VAP |
| Display | |
| Network camera | |
| Inputs | Max. 8CH |
| Resolution | 8MP ~ CIF |
| Protocols | Wisenet, ONVIF |
| Decoding | |
| Local Display | HDMI: 3840 x 2160, 1920x1080, 1280x720 |
| Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240f | |
| Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps) |
| Performance | |
| RECORD | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 80Mbps |
| Resolution | 8MP ~ CIF |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording |
| Event Action | e-Mail, PTZ Preset, Buzzer, Monitor Out |
| Search & play | |
| Playback Bandwidth | Max. 32Mbps (8CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | Max. 8CH Local Monitor, Network) |
| Fisheye Dewarping | WEB / CMS / Mobile |
| Storage | |
| Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea (Max. 6TB) |
| Backup | |
| File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Function | Multi channel (Upto 8CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Wisenet DDNS |
| Audio | |
| Input/Output | 8CH (network) |
| Compression | G.711, G.726, AAC(16/48KHz) |
| Audio Communication | 2-way |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Security | HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Device Certificate (Hanwha Techwin Root CA) | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile |
| Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | |
| Camera setup | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup, Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, |
| IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | |
| Control | Via GUI, Webviewer |
| Smart phone | |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI) |
| Control | Live (Multi-Profile Support), Playback |
| Max. Remote Users | Search(3), Live Unicast(10) |
| Redundancy | |
| ARB | Support |
| Easy configuration | P2P(QR code) |
| Interface | |
| HDMI | 1EA |
| Ethernet | RJ-45(10/100/1000BASE-T) x 1 |
| RJ-45(PoE+) x 8 | |
| USB | 2EA(Front 1, Rear 1) |
| System | |
| System Control | Mouse, IR remocon, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 54VDC / 1.67A |
| Power Consumption | Max. 76.2W(1HDD, PoE on) Max. 8.1W(1HDD, PoE off) |
| PoE Budget | Max. 65W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension | 300 x 47 x 208.4 mm |
| Weight | 1.01kg |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
