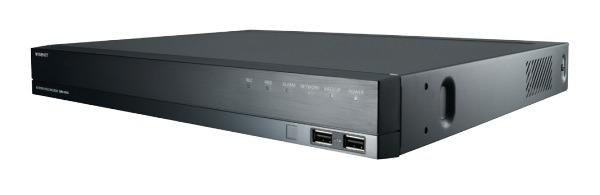

Đầu ghi hình camera IP 8 kênh Hanwha Techwin WISENET XRN-810S/VAP
- Đầu ghi hình camera IP 8 kênh.
- Độ phân giải: CIF ~ 8MP.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ WiseStream.
- Ghi hình camera qua mạng lên đến 100Mbps.
- Hỗ trợ 2 ổ cứng SATA dung lượng lưu trữ 12TB.
- Hỗ trợ ARB.
- Hỗ trợ âm thanh: 2 chiều.
- 4 kênh ngõ vào báo động, 3 kênh ngõ ra báo động.
- Hỗ trợ P2P service (QR code connect).
- SSM, Webviewer, SmartViewer, WisenetMobile viewer (Android / iOS).
- Nguồn điện: 100 ~ 240VAC ± 10%.
- Chức năng cấp nguồn qua mạng PoE.
- Công suất tiêu thụ: Tối đa 19W.
- Kích thước: 370 x 44 x 320mm.
- Trọng lượng: 3.36kg.
Đặc tính kỹ thuật
| Model | XRN-810S/VAP |
| Inputs | Up to 8CH |
| Resolution | CIF ~ 8MP |
| Protocols | Samsung, ONVIF |
| Local Display | HDMI / VGA |
| Multi Screen Display | [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / Auto sequence |
| [Web] 1 / 4 / 8 / Auto sequence | |
| Performance | [Local Monitor] 8MP (60fps), 5MP (90fps), 3MP (120fps), 2MP (240fps), 720p (240fps), D1 (240fps) |
| Embedded | Linux |
| Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | 100Mbps |
| Resolution | CIF ~ 8MP |
| Mode | Manual, Schedule (Continuous / Event), Event (Pre / Post) |
| Event Trigger | Alarm input (4), Video loss, Camera event (Sensor, MD, Video analytics, Defocus) |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Playback Bandwidth | 32Mbps (8CH simultaneously) |
| Performance | Max. 3 users (Local 1, Remote 3) |
| Mode | Date & Time (Calendar) / Event log list / Text search (POS, ANPR), |
| ARB search, Smart search (Virtual Line w/ direction, Enter / Exit) | |
| Simultaneous Playback | Up to 8CH (Local, Network) |
| Resolution | CIF ~ 8MP |
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down |
| Default Built-In | 0TB ~ 6TB |
| Internal | 2 (Max.12TB) |
| Max. Capacity | 12TB |
| File Backup | BU/EXE (USB), JPG/AVI (Web, CMS) |
| Function | Multi channel (Up to 8CH) play, Date-time/title display |
| Input / Output | 4 / 3 (NO 2ea, NO/NC 1ea) |
| Input | 8CH (Network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-way |
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Hanwha security DDNS |
| Transmission Bandwidth | 128Mbps |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 |
| IP | IPv4 / IPv6 |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, Thai |
| OS | Supported OS: Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11 |
| Web Browser | Non-plugin Webviewer |
| Supported Browser : Google Chrome 47, MS Edge 20 | |
| Plug-in Webviewer | |
| Supported MS Explore 11, Mozilla Firefox 43, Apple Safari 9 Mac OS X only | |
| Type | SSM, Webviewer, SmartViewer, Wisenet mobile |
| CMS Support | SDK / CGI (SUNAPI) |
| Register | PnP mode, Manual mode |
| Setup Items | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping (Web), Hallway view setup, Camera webpage |
| PoE | Monitor PoE power consumption, On/Off control for each PoE camera, Remote reset for each PoE camera |
| Easy Configuration | Setup wizard (Date/Time, Network, Auto camera configuration), P2P (QR code) |
| ARB | Yes |
| Control / Preset | Via GUI, Webviewer, 255 presets |
| OS | Android, iOS |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live (8CH): Multi-profile support, Playback (1CH), Event push |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 |
| System Control | Mouse, IR Remocon, Web |
| Indicator | LED (Status indicator): 6ea |
| HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network 1 | |
| VGA | 1ea |
| HDMI | 1ea - Support up to 4K (3840 x 2160) |
| Audio | Out 1ea (RCA, Line) |
| Ethernet | 8ea (PoE/PoE+, 100Mbps), 1ea (WAN, 1Gbps) - WAN: Uplink to CMS |
| Alarm | In 4ea (Terminal block) / Out 3ea (Terminal block) |
| USB | Front 2ea (USB 2.0), Rear 1ea (USB 3.0) |
| Reset | Switch (1ea) |
| Power Cord | Included |
| Log List | Max. 20,000 (System log, Event log each) |
| Input Voltage / Current | 100 ~ 240VAC ±10% |
| Power Consumption/ | MAX.19W (134BTU, 2TB HDD x 1ea) / Max.100W |
| PoE Budget | |
| Dimensions | 370.0 x 44.0 x 320.0mm |
| Weight | 3.36kg |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 36 tháng.
