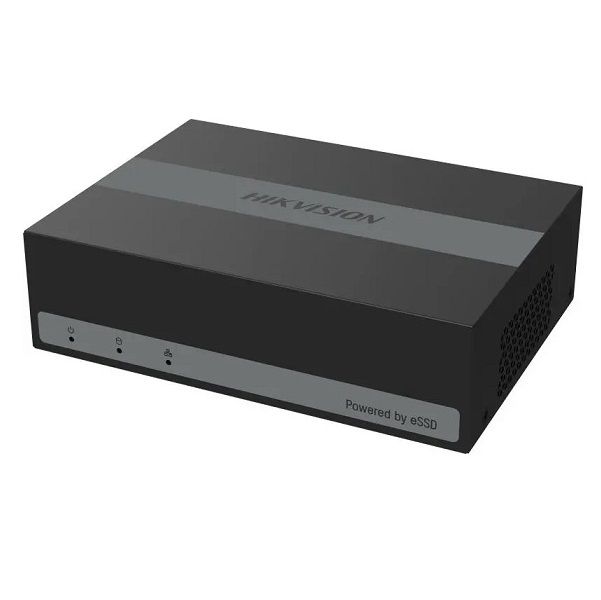

Đầu ghi hình Hybrid TVI-IP 8 kênh HIKVISION DS-E08HGHI-D
- Hỗ trợ video đầu vào: HDTVI/AHD/CVI/CVBS/IP.
- Hỗ trợ 2 kênh camera IP.
- Tương thích với tín hiệu ngõ ra: 1 HDMI, 1 VGA.
- Tiêu chuẩn nén hình ảnh: H.265 Pro/H.265.
- Tích hợp ổ cứng eSSD với dung lượng 1TB.
- Motion Detection 2.0: Thuật toán phân tích người và xe chống báo động giả.
- Kích thước (W × D × H): 151 × 121 × 46 mm.
- Trọng lượng: ≤0.5kg.
Đặc tính kỹ thuật
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported |
| Recording | |
| Video Compression | H.265 Pro/H.265 |
| Encoding Resolution | 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA |
| Frame Rate | Main stream: 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps Note: 1080p Lite/720p is 15 fps by default Sub-stream: CIF/QVGA@15 fps |
| Video Bitrate | According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period. |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 2-ch Up to 5 MP resolution Support H.265+/H.265 IP cameras |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | Support |
| HDMI Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 8-ch via coaxial cable |
| Audio Output | 1-ch via HDMI |
| Synchronous playback | 8-ch |
| Network | |
| Total Bandwidth | 72 Mbps Incoming bandwidth: 8 Mbps |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| Capacity | Built-in 1024 GB eSSD (960 GB available) |
| USB Interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power Supply | 12VDC, 1A |
| Consumption | ≤ 6.2 W (with eSSD) |
| Working Temperature | -10 °C to 45 °C (14 °F to 113 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 151 × 121 × 46 mm |
| Weight | ≤ 0.5kg (with eSSD) |
- Bảo hành: 24 tháng.
