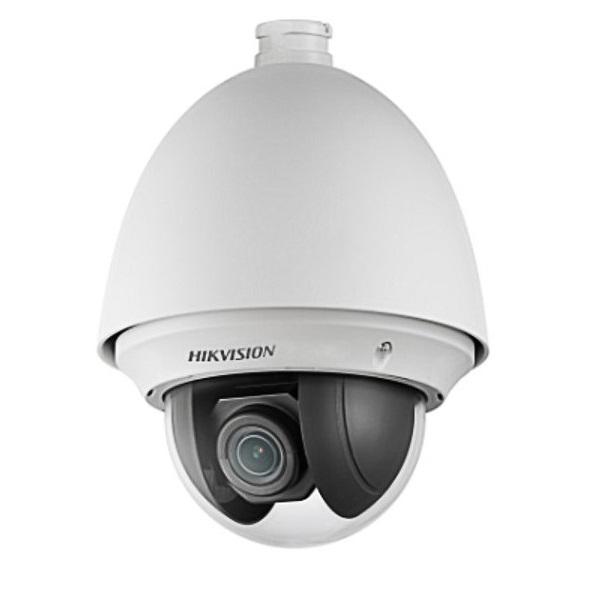

Camera HD-TVI Speed Dome 2.0 Megapixel HIKVISION DS-2AE4225T-D(E)
- DS-2AE4225T-D(E) thuộc dòng Camera Speed Dome Turbo 4-inch.
- Cảm biến hình ảnh: 1/2.8 inch HD Progressive scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Ghi hình: 25fps@(1920 x 1080).
- Độ nhạy sáng: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON) Ultra-low light Power By DarkFighter.
- Zoom quang: 25x (4.8 mm ~ 120 mm).
- Zoom số: 16x.
- Hỗ trợ 3D zoom xoay 4 chiều.
- Chức năng chống ngược sáng thực 120 dB True WDR.
- Chức năng chống ngược sáng HLC.
- Chức năng định vị thông minh 3D.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng ngoài trời).
- Nguồn điện cung cấp: 12 VDC.
- Công suất tiêu thụ: Tối đa 12 W.
- Kích thước: Ø 179.4 × 239.5 mm.
- Trọng lượng: 2 kg.
Đặc tính kỹ thuật
| Model | DS-2AE4225T-D(E) |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON) |
| White Balance | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | ≥ 120 dB |
| Anti-shake | On / Off |
| Shutter Time | PAL: 1-1/10,000s |
| NTSC: 1-1/10,000s | |
| Day& Night | ICR |
| Digital Zoom | 16x |
| Privacy Masking | 8 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 4.8 mm to 120 mm, 25×Optical |
| Zoom Speed | Approx. 3.6 s (optical, wide to tele) |
| Angle of View | Horizontal field of view: 57.6° to 2.5° (wide to tele) |
| Vertical field of view: 34.4° to 1.4° (wide to tele) | |
| Diagonal field of view: 64.5° to 2.9° (wide-tele) | |
| Minimum Working Distance | 10-1500mm (Wide-Tele) |
| Aperture Range | F 1.6 to F 3.5 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Pan manual speed: 0.1° to 100°/s |
| Pan preset speed: 100°/s | |
| Tilt Range | 5°~90° (Auto Flip ) |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s |
| Tilt preset speed: 80°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| Alarm | |
| Alarm Input | 2 |
| Alarm Output | 1 |
| Input & Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language | English |
| Power Supply | 12V DC |
| Power Consumption | Max. 16 W |
| Working Temperature/Humidity | -30°C-65°C, 90% or less |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Dimensions | Ø 179.4 × 239.5 mm |
| Weight (approx.) | 2 kg |
- Bảo hành: 24 tháng.
