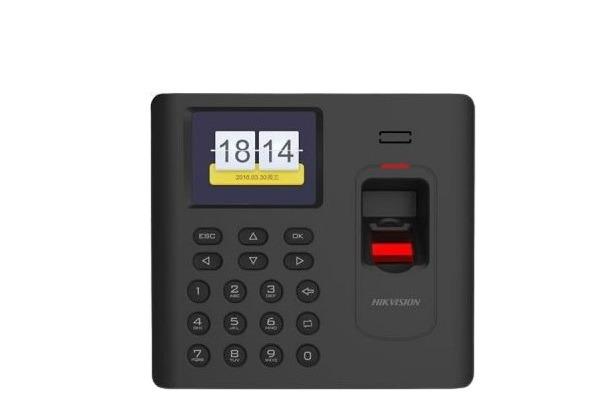

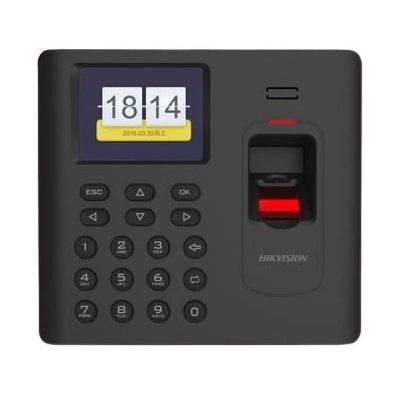

Máy chấm công vân tay, thẻ HIKVISION DS-K1A802AMF
- Máy chấm công vân tay + Card Mifare.
- Màn hình LCD-TFT 2.4 inch.
- Lưu trữ 3000 vân tay, 3000 thẻ, 100.000 Event.
- Hỗ trợ tính năng chấm công, tạo báo cáo tự động, module vân tay quang học.
- Giao tiếp: TCP-IP 10/100Mbps, self-adaptive.
- Hỗ trợ cổng USB 2.0 xuất dữ liệu chấm công, xuất file cấu hình máy chấm công.
- Nguồn điện cung cấp: 5VDC/1A.
Feature
- 2.4-inch LCD screen to display time, date, week, and attendance information.
- Transmission modes of wired network (TCP/IP) and wireless network.
- 1:N mode accurate and fast fingerprint recognition (recognition duration < 1s).
- Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records.
- Stand-alone operation (supports adding persons, cards, and fingerprints locally).
- Downloads attendance reports by USB flash drive.
- Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured.
- Generates reports automatically.
- Export the report and upgrade the device via the USB flash drive.
- Prompt for full report memory.
- Supports multiple authentication modes, supports authentication via PIN code.
- Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian.
- Checks the device running status via the Watchdog. When exceptional status occurs, the device will reboot automatically.
- Supports transmitting data via Wi-Fi.
- Supports ISAPI protocol and ISUP 5.0 protocol.
Thông số kỹ thuật
| Model | DS-K1A802AMF |
| System | |
| Operation system | Linux |
| Screen | |
| Size | 2.4-inch |
| Type | LCD-TFT display screen |
| Audio | |
| Audio output | 1 loudspeaker, 1 buzzer |
| Network | |
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
| Wi-Fi | Support |
| Interface | |
| Network interface | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 3000 |
| Fingerprint capacity | 3000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | Mifare 1 card |
| Card reading distance | 0 to 5 cm |
| Card reading duration | ＜ 1 s |
| Fingerprint module | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | ＜ 1s |
| Fingerprint False Acceptance Rate (FAR) | ≤ 0.001 % |
| Fingerprint False Rejection Rate (FRR) | ≤ 0.01 % |
| Others | |
| Indicator | Power/status (red/green) |
| Power supply | 5 VDC/1 A |
| Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Color | Black |
| Dimensions | 140 mm × 155 mm × 30 mm |
| Application environment | Indoor |
| Installation | Surface mounting, desk stand |
- Bảo hành: 12 tháng.
