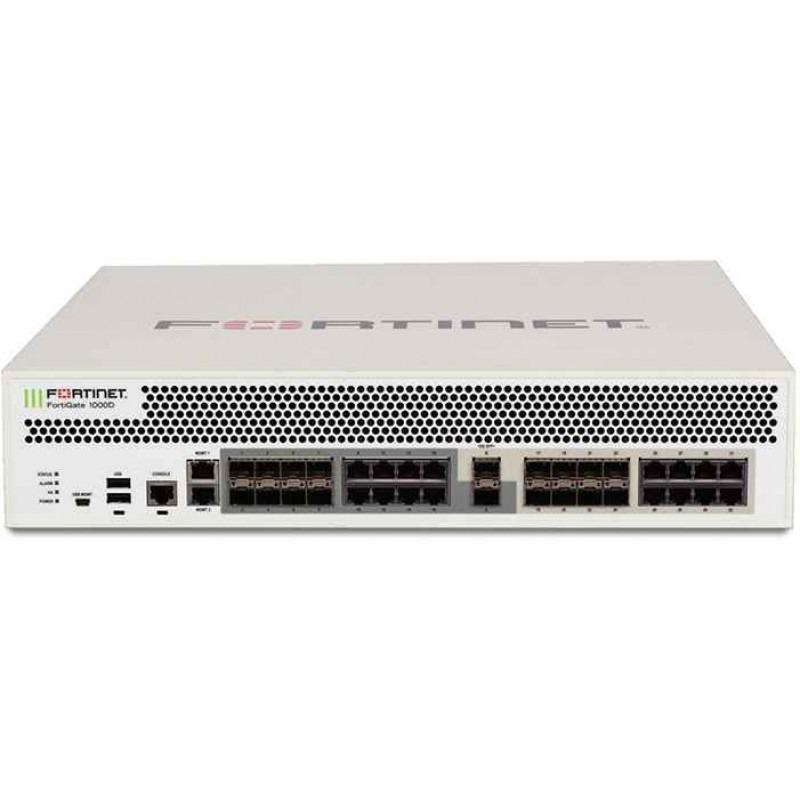

FG-1000D Hardware Plus 24x7 FortiCare And FortiGuard UTM Protection (1 Year)
| Dimensions and power | |
| AC Power Supply | 100-240V AC, 50-60 Hz |
| Current (Maximum) | 100V / 5A, 240V / 3A |
| Form Factor | Rack Mount, 2 RU |
| Heat Dissipation | 753.40 BTU/h |
| Height X Width X Length (inches) | 3.48 x 17.20 x 17.95 |
| Height X Width X Length (mm) | 88.5 x 437 x 456 |
| Power Consumption (Average / Maximum) | 153 W / 220.8 W |
| Redundant Power Supplies | Yes, Hot swappable |
| Weight | 24.70 lbs (11.20 kg) |
| Interfaces and modules | |
| Console Port | 1 |
| GE RJ45 Management / HA Ports | 2 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| Hardware Accelerated GE SFP Slots | 16 |
| Hardware Accelerated GE/10 GE SFP/SFP+ Slots | 2 |
| Onboard Storage | 256 GB |
| USB Ports (Client / Server) | 1/2 |
| Operating environment and certifications | |
| Certifications | ICSA Labs |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Humidity | 20-90% non-condensing |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | -31-158°F (-35-70°C) |
| System performance and capacity | |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| Concurrent Sessions (TCP) | 11 Mil |
| Concurrent SSL-VPN Users (Recommended Maximum) | 10,000 |
| Firewall Policies | 100,000 |
| Firewall Throughput (Packet Per Second) | 49.5 Mpps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| IPsec VPN Throughput (512 Byte) | 25 Gbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 Byte, UDP) | 52 / 52 / 33 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 Byte, UDP) | 52 / 52 / 33 Gbps |
| Maximum Number Of FortiAPs (Total / Tunnel) | 4,096 / 1,024 |
| Maximum Number Of FortiTokens | 5,000 |
| Maximum Number Of Registered Endpoints | 8,000 |
| New Sessions Per Second (TCP) | 280,000 |
| SSL-VPN Throughput | 3.6 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
