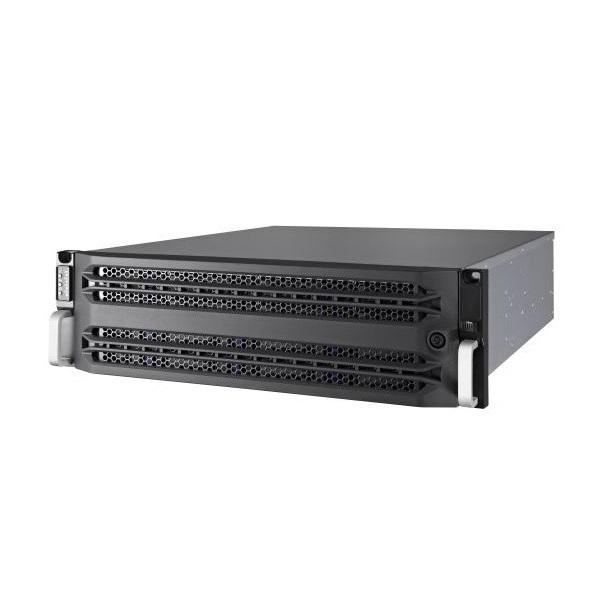

Hệ thống ổ cứng lưu trữ chuyên dụng HIKVISION DS-A81016S (B)
- Hệ thống ổ cứng lưu trữ chuyên dụng, tích hợp NAS/IP-SAN.
- Hỗ trợ bộ xử lý đa nhân 64-bit.
- Hỗ trợ 16 ổ cứng.
- Recording Mode: Video (2Mpbs) + Picture: 320-ch recording + playback IPSAN: 180-ch recording + playback.
- Chuẩn giao tiếp ổ cứng: SATA/1TB, 2TB, 3TB, 4TB, 6TB.
- Cổng giao tiếp: 2 USB, 1 cổng VGA, 2 cổng COM.
- Hỗ trợ 2 cổng mạng 1GB cho Data network.
- Hỗ trợ 1 cổng mạng 1GB cho Management network.
- Hỗ trợ Hot-swap.
- Hỗ trợ iSCSI, RTSP, ONVIF, PSIA.
- Hỗ trợ RAID 0, 1, 3, 5, 6, 10, 50, VRAID, JBOD, Hot-spare.
- Không bao gồm ổ cứng.
- Kích thước: 440 x 132 x 495 mm.
- Khối lượng: 20 kg.
Đặc tính kỹ thuật
| Model | DS-A81016S |
| Performance | |
| Direct Streaming Mode: video (2 Mbps) + picture | 320-ch recording + playback |
| IPSAN | 180-ch recording + playback |
| Controller | |
| Processor | One controller (64-bit multi-core processor) |
| Cache | 4 GB (extendable to 32 GB) |
| HDD | |
| HDD slot | 16 |
| Interface/capacity | SATA/1TB, 2TB, 3TB, 4TB, 6TB |
| Hot-swapping | Supported |
| RAID | RAID 0, 1, 3, 5, 6, 10, 50, VRAID, JBOD, Hot-spare |
| Storage Management | |
| Disk management | Disk inspection, alarm and repair |
| Logical volume management | iSCSI volume, video volume management |
| Recording Management | |
| Recording mode | Timing recording, manual recording, dual-stream recording, alarm recording |
| Video protection | Lock key video, N+1 service protection, ANR, video loss detection and alarm |
| Searching mode | Search by time and event |
| Downloading mode | Quick download, batch download, download by segment, download by merging |
| Device Maintenance | |
| Management mode | Web-based GUI, serial port CLI, centralized management of multiple devices |
| Alarm mode | Sound, light, email, message, web page |
| Log downloading | Download no web page |
| Network | |
| Protocol | iSCSI, RTSP, ONVIF, PSIA |
| Interfaces | |
| Data network interface | 3, 1000M Ethernet interface |
| Management network interface | 1, 1000M Ethernet interface |
| MiniSAS interface | Supported |
| COM | 1 |
| USB 3.0 | 2 |
| Alarm interface | 1 |
| HDMI | 2 |
| General | |
| Power supply | Redundant |
| Consumption (with HDDs) | Working: ≤308 W (967 BTU with 16 HDDs) Rated: ≤ 550 W |
| Environment | Working: +5 °C to +40 °C (41 °F to 104 °F) |
| Temperature | Storing: -20 °C to +70 °C (-4 °F to +158 °F) Working: 20% to 80%RH (non-condensing/frozen) |
| Environment humidity | Storing: 5% to 90%RH (non-condensing/frozen) |
| Chassis | 3U (19-inch height) |
| Dimensions (W × H × D) | 440 x 132 x 495 mm |
| Weight (without HDDs) | ≤ 20 Kg |
- Bảo hành: 24 tháng.
