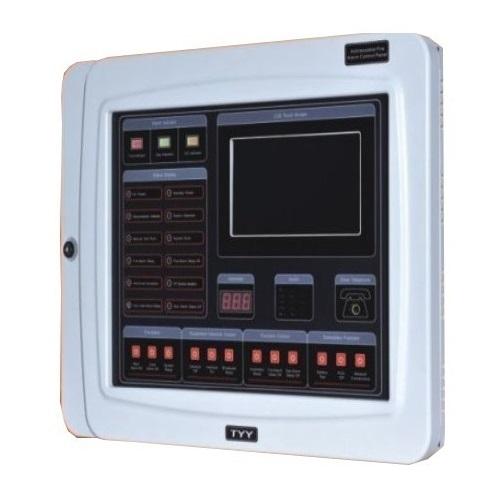

Hiển thị phụ trung tâm báo cháy địa chỉ 3 loop YUNYANG YFR-S1
-Hiển thị phụ trung tâm báo cháy địa chỉ 3 loop 768 địa chỉ.
-Large LCD screen (40 x 15 lines) allows more events to be displayed on the same screen.
-Loop device can be set up to be temporarily isolated.
-Individual loop module test feature to save time on panel test.
-On-board Self-test feature for simulating alarm output.
-Easy system programming through PC to panel.
-Events log can store up to 2030 events.
Specification
| Power | 220VAC, 50/60Hz |
| Battery Capacity | 24V/12Ah |
| Charging Voltage, Current | 26VDC, 100~400mA |
| Zone Voltage, Current | 24VDC |
| Short circuit under | 5V, 30mA |
| System Capacity | 768 devices/3 loop |
| Main Sound | 85dB |
| Accumulation Time | 0~40 seconds |
-Sản xuất tại Taiwan.
-Bảo hành: 12 tháng.
