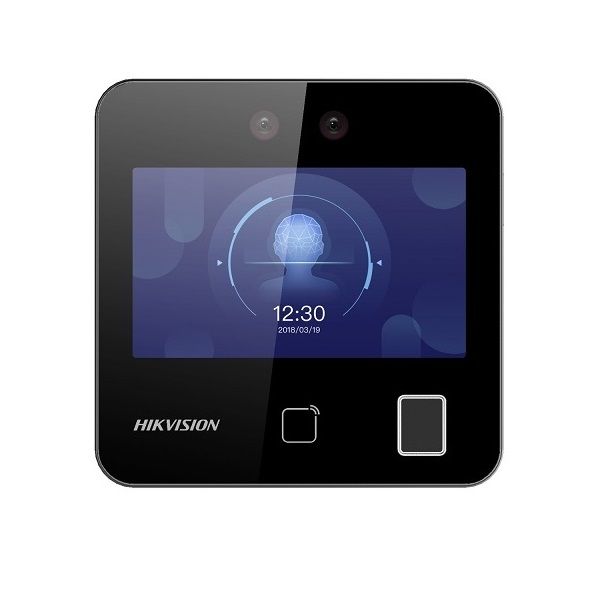

Máy chấm công nhận diện khuôn mặt và vân tay HIKVISION DS-K1T343MFWX
- Máy chấm công nhận diện khuôn mặt, vân tay và thẻ.
- Loại thẻ: Mifare 1 card.
- Dung lượng: Tối đa 1500 khuôn mặt, 3000 vân tay và 3000 thẻ.
- Màn hình: LCD 4.3-inch.
- Hỗ trợ kết nối TCP/IP, Wi-Fi.
- Hỗ trợ ISAPI, ISUP5.0.
- Thời gian nhận diện:
- Khoảng cách nhận diện: 0.3m đến 1.5m.
- Nguồn điện: 12VDC/1A.
- Nhiệt độ làm việc: -10°C to 40°C.
- Vị trí lắp đặt: Trong nhà.
Đặc tính kỹ thuật
| System | |
| Operation system | Linux |
| Display | |
| Dimensions | 4.3-inch |
| Resolution | 480 × 272 |
| Type | LCD |
| Operation method | Capacitive touch screen |
| Video | |
| Pixel | 2 MP |
| Lens | × 2 |
| Video standard | PAL (Default) and NTSC |
| Network | |
| Wired network | 10 M/100 M self-adaptive |
| Wi-Fi | Support |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 3,000 |
| Face capacity | 1,500 |
| Fingerprint capacity | 3,000 |
| Event capacity | 150,000 |
| Authentication | |
| Card type | Mifare 1 card |
| Card reading frequency | 13.56 MHz |
| Face recognition duration | |
| Face recognition accuracy rate | >99% |
| Face recognition distance | 0.3 to 1.5 m |
| Fingerprint recognition duration | |
| Function | |
| Face anti-spoofing | Support |
| Audio prompt | Support |
| Time synchronization | Support |
| General | |
| Power supply | 12 VDC/1 A (power adapter included) |
| Working temperature | -10 °C to 40 °C (14 °F to 104 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Dimensions | 118.4 mm × 118.4 mm × 21.8 mm |
| Application environment | Indoor |
| Installation | Wall Mounting; Base Mounting |
| Weight | 0.23 kg |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese |
- Bảo hành: 24 tháng.
