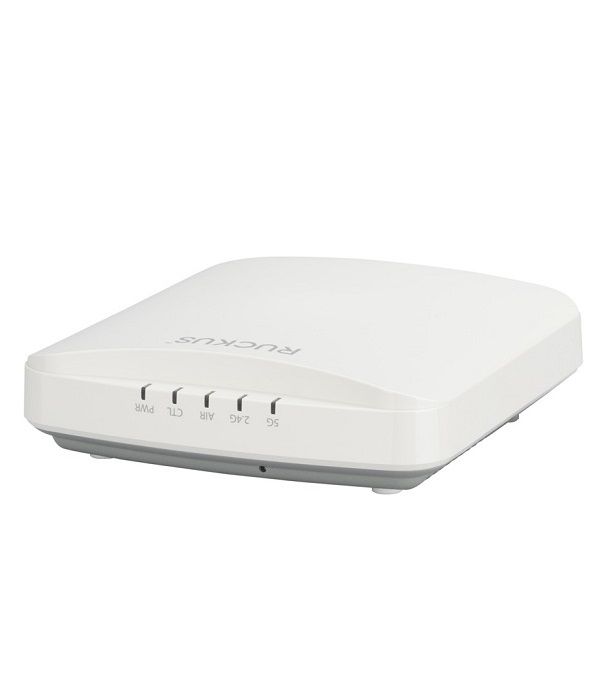

Indoor Wi-Fi 6 Access Point RUCKUS R350 (9U1-R350-WW02)
- Latest wi-fi standards: The R350 access point (AP) support the latest Wi-Fi 6 (802.11ax) technology.
- Stunning wi-fi performance: Patented RUCKUS technologies for performance optimization and interference mitigation delivers extended coverage and superior user experience.
- IoT ready: Eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using or any future wireless technologies with the addition of an optional USB module.
- Mesh networking: Dynamically create self-forming, self-healing network mesh with RUCKUS patented SmartMesh technology reducing expensive cabling, and complex configurations by checking a box.
- Affordable enterprise performance: The R350 delivers unprecedented price/performance offering extended range at an affordable price.
- Multiple unified management options: Manage the R350 from the cloud, with on-premises physical/virtual appliances, or without a controller.
- Keep existing switches and cables: Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly power infrastructure upgrades.
Đặc tính kỹ thuật
| WIFI | |
| Wifi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Supported Rates | - 802.11ax: 4 to 1774Mbps - 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) - 802.11n: 6.5Mbps to 300Mbps (MCS0 to MCS15) - 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps - 802.11b: 11, 5.5, 2 and 1Mbps |
| Supported Channels | - 2.4GHz: 1-13 - 5GHz: 36-64, 100-144, 149-165 |
| MIMO | - 2x2 SU-MIMO - 2x2 MU-MIMO |
| Spatial Streams | - 2 streams SU/MU-MIMO 5GHz - 2 streams SU/MU-MIMO 2.4GHz |
| Radio Chains and Streams | - 2x2:2 (5 GHz) - 2x2:2 (2.4GHz) |
| Channelization | 20, 40, 80MHz |
| Security | - WPA-PSK, WPA-TKIP, WPA2 , WPA3-Personal, WPA3-Enterprise, AES, WPA3, 802.11i, Dynamic PSK - WIPS/WIDS |
| Other Wi-Fi Features | - WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v - Hotspot - Hotspot 2.0 - Captive; Portal - WISPr |
| RF | |
| Antenna Type | - BeamFlex adaptive antennas - Adaptive antenna that provides up to 64 unique antenna patterns per band |
| Antenna Gain (max) | Up to 3dBi |
| Peak Transmit Power (aggregate across MIMO chains) | - 2.4GHz: 23 dBm - 5GHz: 23 dBm |
| Minimum Receive Sensitivity | -101 dBm |
| Frequency Bands | - ISM (2.4-2.484GHz) - U-NII-1 (5.15-5.25GHz) - U-NII-2A (5.25-5.35GHz) - U-NII-2C (5.47-5.725GHz) - U-NII-3 (5.725-5.85GHz) |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | - 2.4GHz: 574Mbps - 5 GHz: 1200Mbps |
| Client Capacity | Up to 256 clients per AP |
| SSID | Up to 16 per AP |
| PHYSICAL INTERFACES | |
| Ethernet | 1 x 1GbE port, RJ-45 |
| USB | 1 USB 2.0 Port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | 14.60(L) x 15.59(W) x 3.93(H) cm |
| Weight | 368g |
| Mounting | - Wall, Drop ceiling, Desk - Secure bracket (sold separately) |
| Physical Security | - Hidden latching mechanism - T-bar Torx |
| Operating Temperature | 0ºC (32ºF) to 40ºC (104ºF) |
| Operating Humidity | Up to 95%, non-condensing |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | - BeamFlex+ - Polarization Diversity with Maximal R-ࢢo Combining (PDMRC) |
| Wi-Fi Channel Management | - ChannelFly - Background Scan Based |
| Client Density Management | - Adaptive Band Balancing - Client Load Balancing - Airtime Fairness - Airtime-base WLAN Prioritization |
| SmartCast Quality of Service | - QoS-based scheduling - Directed Multicast - L2/L3/L4 ACLs |
| Mobility | SmartRoam |
| Diagnostic Tools | SpeedFlex |
| NETWORKING | |
| Controller Platform Support | - SmartZone - ZoneDirector - Unleashed - Cloud - Standalone |
| Mesh | - SmartMesh wireless meshing technology. Self-healing Mesh |
| IP | IPv4, IPv6 |
| VLAN | - 802.1Q (1 per BSSID or dynamic per use based on RADIUS - VLAN Pooling - Port-based |
| 802.1x | Authenticaor & Supplicant |
| Tunnel | L2TP, GRE, Soft-GRE |
| Policy Management Tools | - Application Recognition and Control - Access Control Lists - Device Fingerprinting - Rate Limiting |
