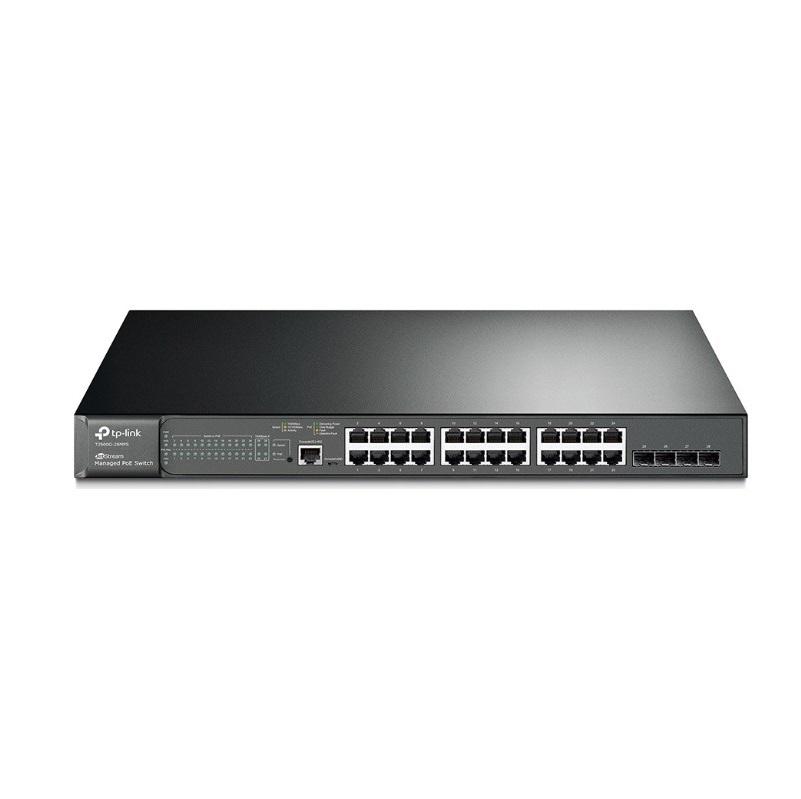

JetStream 24-Port Gigabit L2 Managed PoE+ Switch with 4 SFP Slots TP-LINK T2600G-28MPS
- Supports 24 802.3at/af-compliant POE+ ports with a total power supply of 384W.
- L2+ feature-Static Routing, helps route internal traffic for more efficient use of network resources.
- IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies.
- L2/L3/L4 QoS and IGMP snooping optimize voice and video application.
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.
Specifications
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 1000Mbps SFP Slots 1 Console Port 1 Micro-USB Console Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100~240VAC, 50/60Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 384W |
| Dimensions ( W x D x H ) | 17.3x13x1.7 in.(440x330x44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 29.02W (220V/50Hz with no PD connected) 468.7W (110V/60Hz with 384W PD connected) |
| Max Heat Dissipation | 99.02 BTU/h (with no PD connected) 1599.20 BTU/h (with 384W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 41.7Mpps |
| MAC Address Table | 16k |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| L2 and L2+ Features | Static Routing DHCP Relay DHCP Server IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control L2PT |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) 802.1Q/MAC/Protocol-based/Private VLAN GARP/GVRP |
| Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p,DSCP, protocol and VLAN ID Time Range Based |
| Security | IP-MAC-Port Binding AAA 802.1x and Radius Authentication DoS Defend Dynamic ARP Inspection (DAI) SSH v1/v2 SSL v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 ACL DHCPv6 Snooping IPv6 Interface |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP IPv6 ACL IPv6 Interface IPv6 Routing DHCPv6 Relay DHCPv6 Snooping |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) sFlow PPPoE Circuit ID DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 Dual Image CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Password Recovery |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Switch Power Cord Quick Installation Guide Resource CD Rackmount Kit Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
