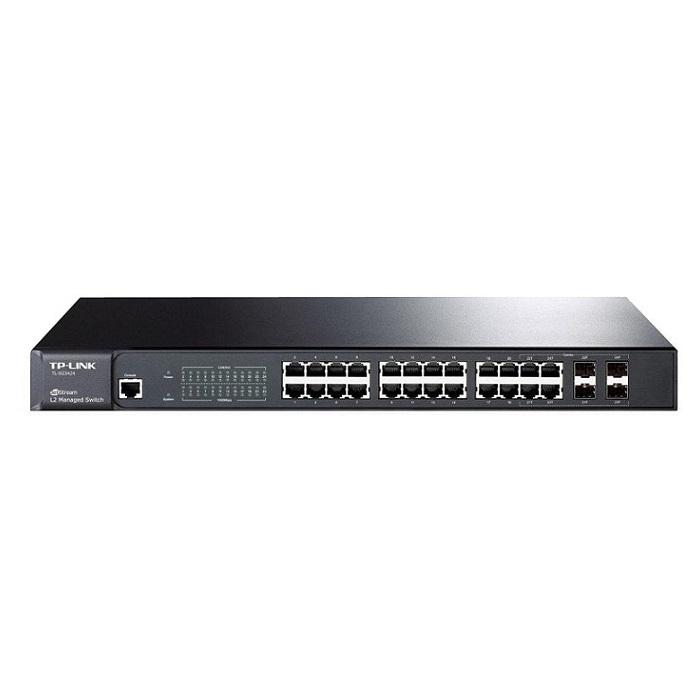

JetStream 24-Port Gigabit with 4 SFP Slots Switch TP-Link T2600G-28TS (TL-SG3424)

JetStream 24-Port Gigabit with 4 SFP Slots Switch TP-Link T2600G-28TS (TL-SG3424)

  • MS 000014800
  • TP-LINK
Giá : Liên hệ

JetStream 24-Port Gigabit with 4 SFP Slots Switch TP-Link T2600G-28TS (TL-SG3424)

JetStream 24-Port Gigabit with 4 SFP Slots Switch TP-Link T2600G-28TS (TL-SG3424)

-       24 cổng RJ45 10/100/100Mbps + 4 slot 1000Mbps SFP.

-       QoS L2/ L3/ L4 và ICMP Snooping tối ưu hóa cho các ứng dụng âm thanh và video.

-       Với SNMP, RMON, WEB/ CLI, mang lại các tính năng quản trị đa dạng.

-       Địa chỉ MAC: 16K.

-       Bộ nhớ gói dữ liệu đệm: 1.5MB.

-       Nguồn điện: 100 - 240V, 50/60Hz.

-       Công suất tiêu thụ: 19.15W.

-       Kích thước: 440 x 220 x 44 mm.

-       Trọng lượng: 3.9kg.

Đặc tính kỹ thuật

Interfaces

24 10/100/1000Mbps RJ45

4 1000Mbps SFP

Console Port

1 RJ45 Console Port

1 Micro-USB Console Port

L2 Features

Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups, containing 8 ports per group

Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect

Loopback Detection

Flow Control: 802.3x Flow Control, HOL Blocking Prevention

Port Mirroring: One-to-One, Many-to-One, Flow-Based, Tx/Rx/Both

L2 Multicast

Supports 1000 (IPv4, IPv6) IGMP groups

IGMP Snooping: IGMP v1/v2/v3 Snooping, IGMP Fast Leave, Multicast VLAN, IGMP Snooping Querier, IGMP Authentication, Limited IP Multicast (256 pro­les and 16 entries per pro­le), Static Multicast

MLD Snooping: MLD v1/v2 Snooping, MLD Snooping Querier, Fast Leave, Limited IP Multicast (256 pro­les and 16 entries per pro­le), Static Multicast

L3 Features

16 IP Interfaces: Supports ipv4 interface, supports ipv6 interface

Proxy ARP

Static Routing: 48 static routes

VLAN

VLAN Group: Max. 4K VLAN Groups

802.1Q Tagged VLAN

MAC VLAN: 256 Groups

Protocol VLAN

Private VLAN

GVRP

VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ

Voice VLAN

Qos

802.1p CoS/DSCP priority

8 priority queues

Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

Bandwidth Control: Port/Flow based Rating Limiting

Smoother Performance

Actions for flows: Mirror (to supported interface), Redirect(to supported interface), Rate Limit, QoS Remark

ACL

Supports up to 300 entries (up to 600 by Access Template)

Time-based ACL

MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, EtherType

Standard IP ACL: Source IP, Destination IP

Extended IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/ UDP Port, DSCP/IP TOS

Switching Capacity

56Gbps

Forwarding Rate

41.7Mpps

MAC Address Table

16K

Packet Buffer Memory

1.5MB

Jumbo Frame

9216 Bytes

Power Supply

100 - 240V, 50/60Hz

Maximum Power Consumption

19.15W (220V/50Hz)

Dimensions

440 x 220 x 44 mm

Weight

3.9kg

-       Hàng chính hãng TP-LINK.

-       Bảo hành: 12 tháng.
