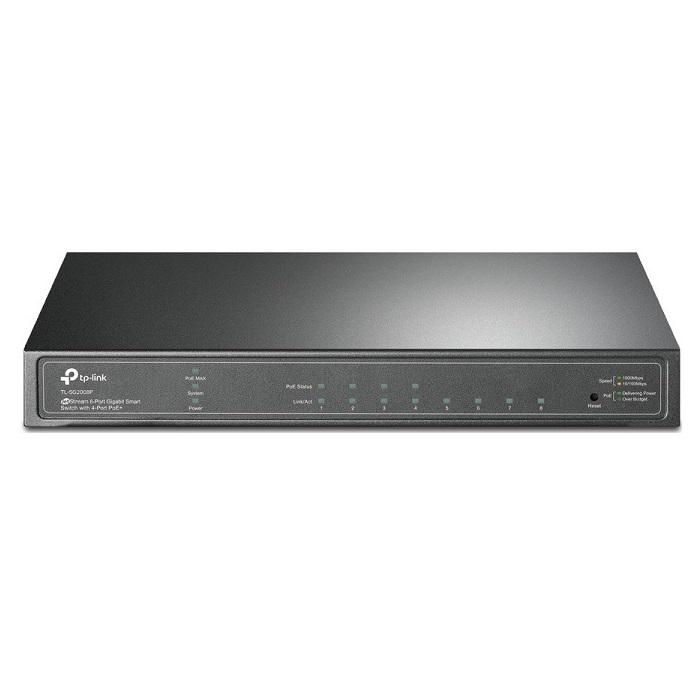

JetStream 8-Port Gigabit with 4-Port PoE+ Smart Switch TP-LINK TL-SG2008P
- 62W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62W.
- Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+) Auto-Negotiation/Auto MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/ 1.3 A) |
| Power Consumption | 7.9 W (no power device connected) 79.2 W (with 62 W power devices connected) |
| PoE Ports (RJ45) | Standard: 802.3af/at compliant PoE Ports: 4 Ports Power Supply: 62 W |
| Dimensions (W x D x H) | 209 x 126 x 26 mm |
| PERFORMANCE | |
| Bandwidth/Backplane | 16 Gbps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode Queue Weight Config Bandwidth Control Smoother Performance Storm Control |
| L2 and L2+ Features | DHCP Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | 511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering MLD Snooping Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support | IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications |
| VLAN | VLAN Group 802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN |
| Access Control List | Support up to 230 entries Time-Range Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation Policy Action ACL Rules Binding Actions for flows |
| Security | AAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control |
| MANAGEMENT | |
| Omada App | Yes |
| Management Features | Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log |
- Bảo hành: 36 tháng.
